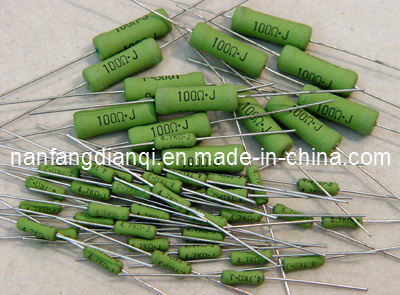

Rx21 Series Coating Wire Wound Resistor

Name: Rx21 Series Coating Wire Wound Resistor
Brand: all-electronics-online.com
SKU: 726175815
Availability: InStock
Rating: 4.9 (68 reviews)

Price:	US $ 0.01-0.99/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RX21
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Certification:	ISO14000
Quality Certification:	ISO9001:2008
Safety Certification:	CQC 03003095~3097
Other Certification:	RoHS
Resistance:	Fixed Resistor
Type:	Fuse Resistor
Installation:	DIP Resistor
Material:	Wire-wound Resistor
Package Type:	Surface Mount

Product Description

RX21 Series Coating Wire Wound Resistor

Product Description:
1. Rated Power: 0.5-15W
2. Resistance Range: 0.1-39KΩ
3. Resistance Tolerance: ± 2%, ± 5%, ± 10%

Specifications
1. Wire-wound Resistor
2. Rated Power: 0.5-15W
3. Resistance Range: 0.10-39kΩ
4. High Accuracy And High Stability
5. Competitive Price And Best Quality

Thehnical Specifcations
Type	Power	Range(Ω)	Tolerance	Dimensions(mm)				temperature coefficient (×10 -6 /°C)
Type	Power	Range(Ω)	Tolerance	Dmax	Lmax	D		temperature coefficient (×10 -6 /°C)
RX21	0.5W	0.1~560	±2% ±5% ±10%	3.5±0.5	10.0±1	0.6	25±3	±100
	1W	0.1~1K		3.5±0.5	14.0±1	0.8
	2W	0.15~5.1k		6.0±1	16.0±1	0.8
	4W	0.15~10K		9.0±1	26.0±2	0.8
	6W	0.15~2K		9.0±1	26.0±2	0.8
	8W	0.15~33K		10.0±1	34.0±2	1.0
	10W	1~33K		10.0±1	46.0±2	1.0
	12W	1~39K		10.0±1	52.0±2	1.0

Main inspection iterm,methods&requirements
Test Item	Specufications	Test Method
Solderability	weldability benign good	235±5°C 2±0.5S
Temperature Coefficent	±100×10 -6 /°C	–55/+20 °C 20/+1555 °C
Surface Temperatue Rise	≤210 °C
Vibration	ΔR≤±(1%R+0.05Ω)	10~500HZ 50m/s 2
Bump	ΔR≤±(1%R+0.05Ω)	40~80times/minute 250m/s 2 3times
Thermal Cycle	ΔR≤±(2%R+0.05Ω)	–55/+250 °C 3times
Constant Samp Heat	ΔR≤±(2%R+0.05Ω)	+40 °C humidity93±3% 48h
Long-Term Continuous Load	ΔR≤±(2%R+0.05Ω)	+40 °C V_Rmake-and-break 1000h

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
