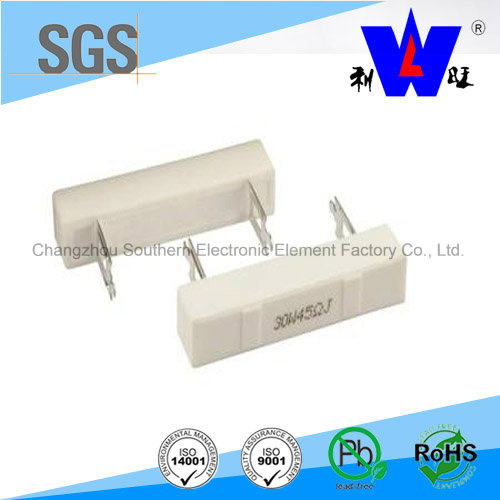

Rx27-3c Ceramic Encased Wire Wound Resistor with ISO9001

Name: Rx27-3c Ceramic Encased Wire Wound Resistor with ISO9001
Brand: all-electronics-online.com
SKU: 761206265
Availability: InStock
Rating: 5 (91 reviews)

Price:	US $ 0.01-5/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product description of Rx27-3c Ceramic Encased Wire Wound Resistor with ISO9001
Product Description:
1. Rated Power: 15-20W
2. Resistance Range: 1.0-2700Ω
3. Resistance Tolerance: ± 5%, ± 10%

Specifications:
1. Good resistance to heat
2. Good stability
3. Low temperature coefficient

Cement Type Resistor (wire wound)

Characteristics

Specifications

Test Method

DC Resistance

JIS-C-5202 5.1

J ± 5%

AT 25° C

Dielectric withstanding voltage JIS-C-5202 5.7

No evidence of flashover mechanical amage, arcing or insulation breakdown.

Resistance shall be clamped with a conductive material which conforms to resistors surface so that 90 o of the outer periphery is contacted a potential of 1000V AC shall be applied for 60 seconds.

Insulation Resistance

JIS-C-5202 5.6

1000MΩ MIN

Withstanding test and shall be measured at DC 500V. Resistor shall be prepared AC same method of dielectric.

Thermal Shock

Δ R≤ ± (2%R 0 +0.1Ω )

After application of rated power for 30 minutes, 30 minutes exposure to -30± 5° C ambient temperature.

Humidity

JIS-C-5202 7.5

Δ R≤ ± (2%R 0 +0.1Ω )

Temperature resistance change after 1000 hours exposure in a humidity test chamber controlled at 40± 2° C and 90~95% relative humidity.

Cement Type Resistor (metal oxide film)

Short time overload

Δ R≤ ± (2%R 0 +0.05Ω )

Temperature resistance change after the application of a potential of 2.5 times RCVW for 5 seconds.

Load Life

JIS-C-5202 7.10

Δ R≤ ± (5%R 0 +0.1Ω )

Permanent resistance change after 1000 hours operating at RCWV, with duty cycle of 1.5 hours on and 0.5 hours off at 25° C± 2° C.

Load Life in Humidity

JIS-C-5202 7.9

Δ R≤ ± (5%R 0 +0.1Ω )

Temperature resistance change after 1000 hours(1.5hours on and 0.5 hours off) at RCVW in a humidity chamber controlled at 40± 2° C and 90~95% relative humidity.

Solderability

JIS-C-5202 6.5

95% coverage MIN

Test temperature of solder: 230± 5° C

Dwell time in solder: 3± 0.5 SEC

Nonflammability

Nonflammable

Load 5 min according to 5times, 10 times, 16 times rated power and A. C. respectively.

Don't hesitate to contact us if you have any interest in our products,welcome to provide us your specification,we will submit the best quotation shortly.

It's our pleasure to be on service of you.Thanks.

Prod Model:	RX27-3C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Certification:	ISO14000
Quality Certification:	ISO9001: 2008
Safety Certification:	CQC 03003095~3097
Other Certification:	RoHS
Colour:	White
Productor Name:	Rx27-3c Ceramic Encased Wire Wound Resistor
Resistance:	Fixed Resistor
Function For Resistance:	Protective Resistor
Installation:	DIP Resistor
Material:	Wire-wound Resistor
Package Type:	Surface Mount
Type:	Cement Resistor
Brand:	Liwang

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
