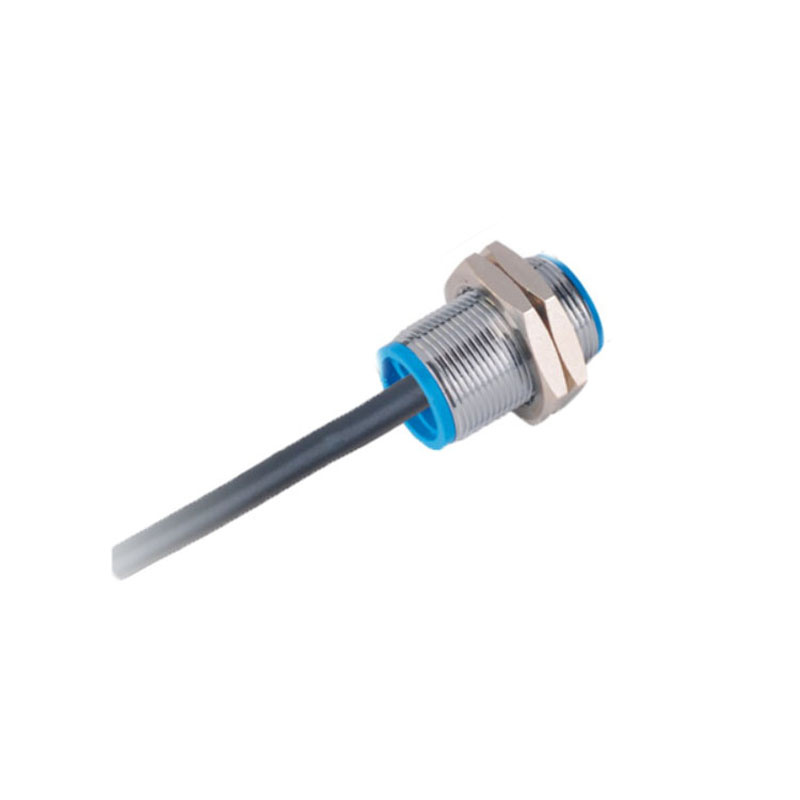

Safety Explosion-Proof Proximity Sensor Switch Am18

Name: Safety Explosion-Proof Proximity Sensor Switch Am18
Brand: all-electronics-online.com
SKU: 834428165
Availability: InStock
Rating: 4.6 (121 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	AM18
Detection Distance:	8mm
Working Voltage:	DC6-36V/AC90-250V
Output Form:	NPN / PNP / Two Wire / SCR
State:	No / Nc
Flush:	Flush / Non-Flush
Type:	Proximty Switch
Production Process:	Flush or Non-Flush

Product Description

Proximity Sensors are available in models of capacitive sensor and inductive sensor using high-frequency oscillation to detect ferrous and non-ferrous metal objects and in capacitive models to detect non-metal objects. Sensors are available with environment resistance, heat resistance, resistance to chemicals, and resistance to water

Features :

Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Model	Two-wire normally close	AM18-3008LB
Specification	Rated Vollage	8.2V
	Sensing Range	8mm
	Standard Object Q235 steel(mm)	18181t
	Oscillating /Stop Pscillating Current	≥2.2mA/≤1mA
	load resistance	1KΩ
	Switch frequency, Non-Flush	700KHz
	Shell material	Nickel-plated brass
	Protection Level	IP67
	working environment temperature	-20ºC~70ºC
	External wiring diagram

Inductance type

LM5 LM6 LM8 LM8-T LM12 LM12-T LM18 LM18-T LM30 LM30-T LMF1 LMF2 LMF3 LMF11 LMF37 LMF340 PR08 PR12 PR18 PR30 E2E-2 E2E-X4 E2E-X5 E2E-X8 E2E-X10 E2E-X18

Capacitance type

CM12 CM18 CM30 CMF37 E2K

Hall type

SM8 SM12 SM18

Mimic linear type

XM12 XM18 XM30 XMF37 XMF38

Ultrasonic type

UB400 UB500 UB1000 UB1500 UB2000

Safety explosion-proof type

AM8 AM12 AM18 AM30

Reed type

TCS1-E TCS1-F

Photoelectric type

G12 G15 G16 G18 G30 G50 G63 G139

Color mark and Area secure type

BZJ-211 BZJ-311 BZJ-411 BZJ-511 KS-C2 Z3N-TB22 GM20 GM40

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
