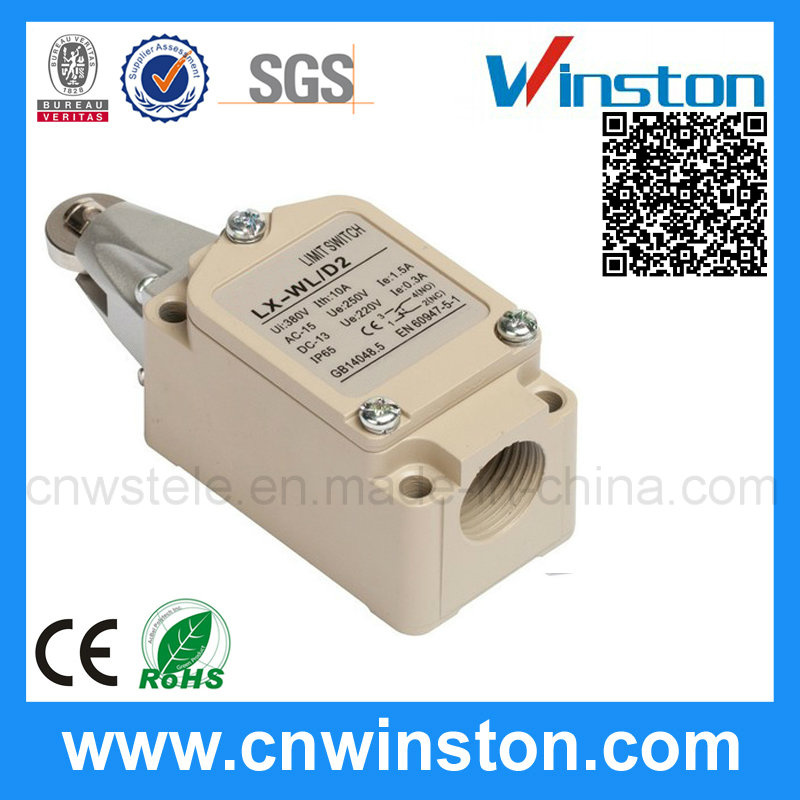

Safety Roller Type Micro Limit Switch with CE

Safety Roller Type Micro Limit Switch with CE
Price: US $ 5-6/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: WLD1, WLD2
Markets: North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Protection Level: IP66
Operating Temperature: -5 to 65degree
Max. Current: 10A
Max. Voltage: 250VAC
Materials Body: Zinc Meal Alloy
Electrical Life: 100,000times Above
Mechanical Life: 1,000,000times Above
Manufacturer: OEM
Condition: Original New
Protection: Waterproof
Size: Small-Sized
Breaking Capacity: Micro-Current
Breaking Form: Single Type
Pressing Type: Rotary
Application: Industrial
Brand: Winston

Product Description

Specification:

 1.Double-circuit type of limit switch, is widely used
 2.With strong aluminum cast outer shell
 3.High mechanical strength
 4.Structure preventing oil, water and pressure
 5.Indicating plate with setting position is installed in it, so it is easy to maintain
 6.Various of actuators is taken convenience for using
 7.Built-in contact stand has double-spring, so it has long mechanical life


Ratings

Rated
voltage
Nonidctive load (A)inductive Load (A)
Resistance LoadLamp LoadInductive LoadMotor Load
NCNONCNONCNONCNO

125VAC
250VAC
480VAC
600VAC

10
5
3
1
3
2
1.5
1
1.5
1
0.8
0.5
10
5
3
1.5
5
3
1.5
1
2.0
1.0
0.8
0.5
8VDC
14VDC
30VDC
125VDC
250VDC
10
10
6
0.8
0.4
6
6
4
0.2
0.1
3
3
3
0.2
0.1
10
10
6
0.8
0.4
6
6
4
0.2
0.1

  NOTES:
1.Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2.Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.

Characteristics



Operation spead
1mm-2m/s
Operating frequencyMechanical:120 operations/minute  Electical:30 operations/minute
Contact resistance15mΩ max. (inital value)
Insulation resistance100mΩ  min.   (below 500VDC)
Dielectric strength1000VAC,50/60 Hz for 1 minute between terminals of the same polarity
1,500VAC,50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
1,500VAC,50/60 Hz for 1 minute between each terminal and ground
Vibration10-55Hz,1.5mm double amplitude
ShockMechanical durable:1,000m/Sec²(about 100G'S)
Malfunction:300m/Sec²(about 30G'S)
Ambient temperatureUse: -10 to +80 °C
Humidity<95% RH
LifeMechanical:15,000,000 operations above(under rated OT)
Electrical:500,000 operations above
Weight(CWLCA2-2) Above 275g
Degree of protectionIEC specification:IP66


ModelsCWLCA2-2CWLD2CWLNJCWJNJ-S2CWJCA12-2-QCWLCLCWLCA32-41CWLDCWLNJ-2CWLNJ-30CWLD1CWLD3
OF(Max.)1360g2720g150g29g1360g142g1200g2720g120g80g2720g2720g
RF(Min.)227g910g--227g28g-910g--910g910g
PT(Max.)20°1.7mm28mm28mm20°20°55°1.7mm28mm28mm1.7mm1.7mm
OT(Min.)30°5.6mm--30°30°35°6.4mm--5.6mm5.6mm
MD(Max.)12°1mm--12°12°-1mm--1mm1mm
TF(Max.)2720g---2720g2720g----2720g2720g
TT(Min.)50°6.5±0.8mm--50°50°OP:90±10°OP:34±2.8mm--6.5±0.8mm9±0.8mm



PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
