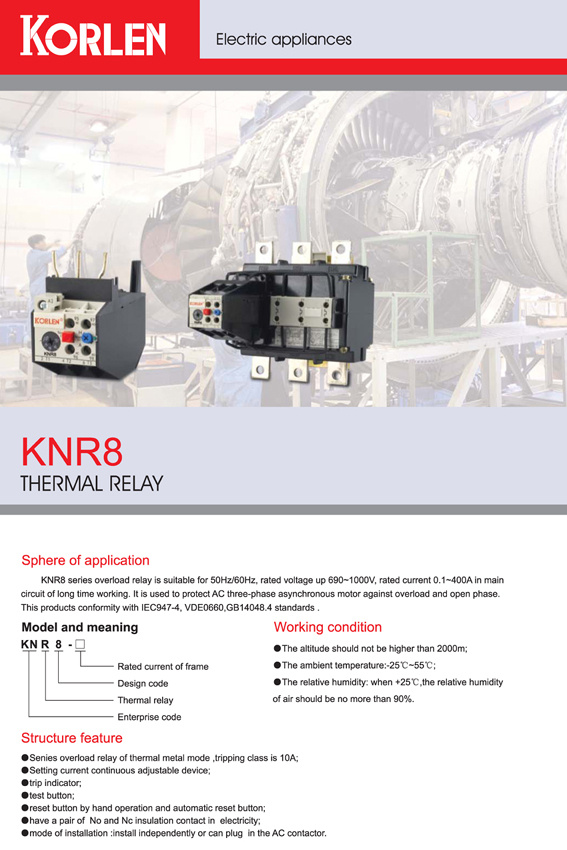

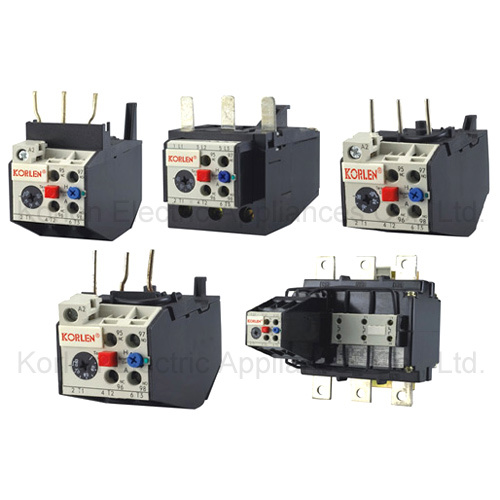

KNR8(3UA) series overload relay is suitable for 50Hz/60Hz, rated voltage up 690~1000V, rated current 0.1~400A in main circuit of long time working. It is used to protect AC three-phase asynchronous motor against overload and open phase. This products conformity with IEC947-4, VDE0660, GB14048.4 standards.
The altituelde should be not higher than 2000m;
The ambient temperature: -25º C~55º C;
The relative humidity: When +25º C, the relative humidity of air should be not more than 90%.
Senies overload relay of thermal metal mode, tripping class is 10A;
Setting current continuous adjustable device;
Trip indicator;
Test button;
Reset button by hand operation and automatic reset button;
Have a pair of No and Nc insulation contact in electricity;
Mode of installation: Install independently or can plug in the AC contactor.

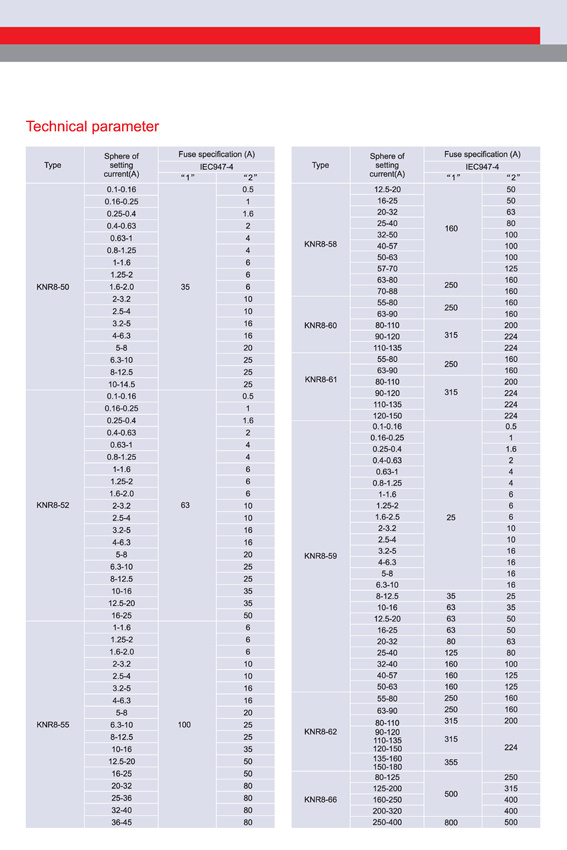

| Type | Sphere of
setting
current(A) | Fuse specification (A) | | IEC947-4 | | "1" | "2" | | KNR8-50 | 0.1-0.16
| 35 | 0.5 | 0.16-0.25
| 1 | 1.25-0.4
| 1.6 | 0.4-0.63
| 2 | 0.63-1
| 4 | 0.8-1.25
| 4 | 1-1.6
| 6 | 1.25-2
| 6 | 1.6-2.5
| 6 | 2-3.2
| 10 | 2.5-4
| 10 | 3.2-5
| 20 | 4-6.3
| 16 | 5-8
| 16 | 6.3-10
| 25 | 8-12.5
| 25 | | 10-14.5 | 25 | | KNR8-52 | 0.1-0.16
| 63 | 0.5 | 0.16-0.25
| 1 | 0.25-0.4
| 1.6 | 0.4-0.63
| 2 | 0.63-1
| 4 | 0.8-1.25
| 4 | 1-1.6
| 6 | 1.25-2
| 6 | 1.6-2.5
| 6 | 2-3.2
| 10 | 2.5-4
| 10 | 3.2-5
| 16 | 4-6.3
| 16 | 5-8
| 20 | 6.3-10
| 25 | 8-12.5
| 25 | 10-16
| 35 | 12.5-20
| 35 | | 16-25 | 50 | | KNR8-55 | 1-1.6
| 100 | 6 | 1.25-2
| 6 | 1.6-2.5
| 6 | 2-3.2
| 10 | 2.5-4
| 10 | 3.2-5
| 16 | 4-6.3
| 16 | 5-8
| 20 | 6.3-10
| 25 | 8-12.5
| 25 | 10-16
| 35 | 12.5-20
| 50 | 16-25
| 50 | 20-32
| 80 | 25-36
| 80 | 32-40
| 80 | | 36-45 | 80 |
| | Type | Sphere of
setting
current(A) | Fuse specification (A) | | IEC947-4 | | "1" | "2" | | KNR8-58 | 12.5-20
| 160 | 50 | 16-25
| 50 | 20-32
| 63 | 25-40
| 80 | 32-50
| 100 | 40-57
| 100 | 50-63
| 100 | 57-70
| 125 | 63-80
| 250 | 160 | 70-88
| 160 | | KNR8-60 | 55-80
| 250 | 160 | 63-90
| 160 | 80-110
| 315 | 200 | 90-120
| 224 | 110-135
| 224 | | KNR8-61 | 55-80
| 250 | 160 | 63-90
| 160 | 80-110
| 315 | 200 | 90-120
| 224 | 110-135
| 224 | | 120-150 | 224 | | KNR8-59 | 0.1-0.16
| 25 | 0.5 | 0.16-0.25
| 1 | 0.25-0.4
| 1.6 | 0.4-0.63
| 2 | 0.63-1
| 4 | 0.8-1.25
| 4 | 1-1.6
| 6 | 1.25-2
| 6 | 1.6-2.5
| 6 | 2-3.2
| 10 | 2.5-4
| 10 | 3.2-5
| 16 | 4-6.3
| 16 | 5-8
| 16 | 6.3-10
| 16 | 8-12.5
| 35 | 25 | 10-16
| 63 | 35 | 12.5-20
| 63 | 50 | 16-25
| 63 | 50 | 20-32
| 80 | 63 | 25-40
| 125 | 80 | 32-40
| 160 | 100 | 40-57
| 160 | 125 | | 50-63 | 160 | 125 | | KNR8-62 | 55-80
| 250
250
| 160 | 63-90
| 160 | | 80-110 | 250 | 200 | 90-120
110-135
120-150 | 315 | 224 | 135-160
150-180 | 355 | | KNR8-66 | 80-125
| 500 | 250 | 125-200
| 315 | 160-250
| 400 | 200-320
| 400 |
|
Wenzhou Korlen Electric Appliances Co., Ltd, It is a joint venture. My company is a manufacturer including design, development, produce and sale, professional producing MCB, MCCB, RCCB and AC contactor etc. Product enterprises. The company owns import and export power of self-run, expanding Europe and America, Middle East, Southeast Asia etc. Market, set a good Public praise.

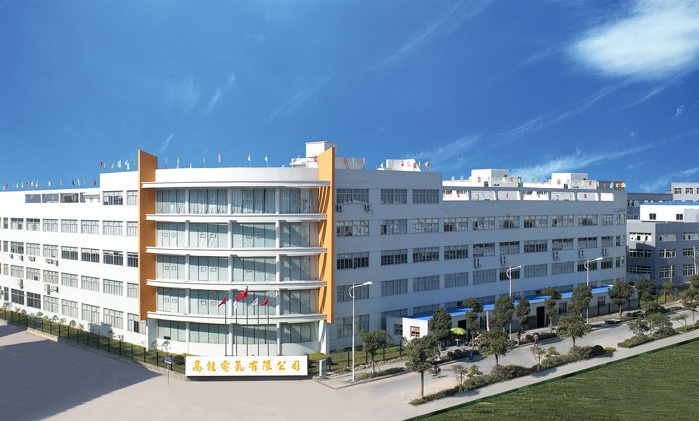

The company have more than 1500 workers, including senior engineer among them, engineer at inside of more than 100 technician. And then set up to cover area more than 50 acres, construct area is more than 38000 square meters of the modern industrial zone, providing with the forerunner's standard laboratory and various examination equipments.
