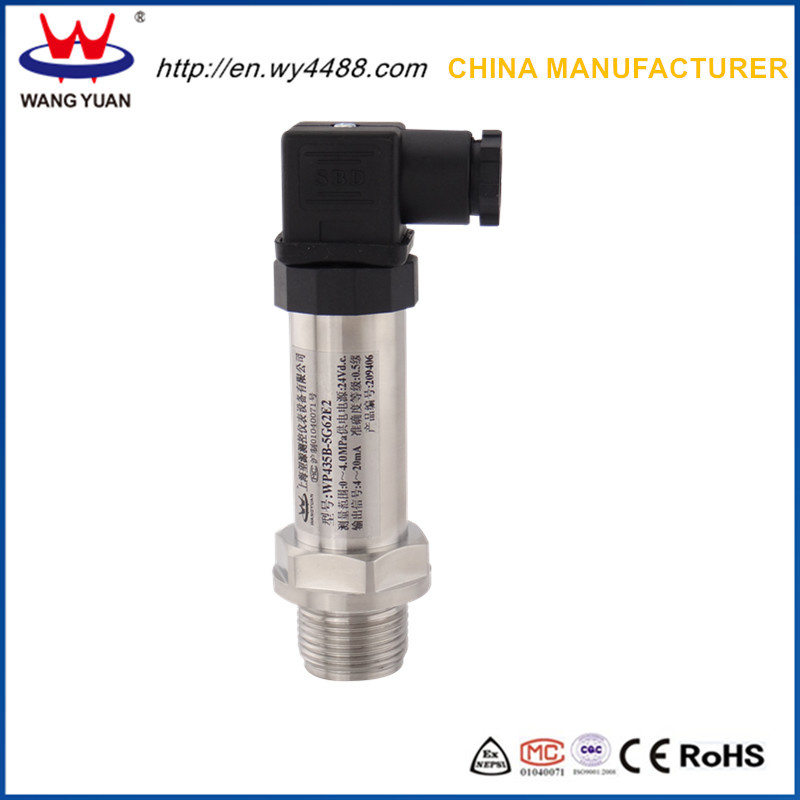

Sanitary Grade Plug Connector 4-20mA Flush diaphragm Pressure Transmitter
Model: WP435B
Application:
This Sanitary grade Plug connector 4-20mA Pressure transmitter can be used to measure and control PRESSURE of liquids, gas, fluids in:
- Building automation
- Electric power, water supply,
- Light industry, Metallurgy,
- Environmental protection,
- Food & beverage plants
- Oil & Gas and Hydraulic press,
- Petroleum and chemical industry,
- Other automatic control industries.
Description:
1. WP435B Sanitary grade Plug connector 4-20mA Pressure transmitter adopts advanced imported sensor component with high precision, high stability and anti-corrosion.
2. This pressure transmitter can work stably for a long time under maximum 60ºC temperature work environment.
3. Laser welding technology is used between sensor and stainless steel house, without pressure cavity. They are suitable to measure and control the pressure in all kinds of easy to clog, sanitary, sterile, easy to clean environment.
4. With the feature of high working frequency, they also are fit for dynamic measurement.
Features of Sanitary grade Plug connector 4-20mA Pressure transmitter :
* Various signal outputs
* HART protocol is available
* Operating temperature:-40~ 60ºC
* High precision 0.1%FS, 0.2%FS, 0.5%FS
* Flush diaphragm, corrugated diaphragm, clamp mounting
* Pressure range: 0--10~ -100kPa, 0-10kPa~100MPa
* 3 1/2 LCD or LED digital indicator is configurable
* Explosion-proof type: Ex iaIICT6- Intrinsically safe comply with requirement of GB3836·4-83;
Ex dIIBT4-Flameproof comply with requirements of GB3836·2-83.
Specification:
Name | Sanitary Grade Plug Connector 4-20mA Flush diaphragm Pressure Transmitter |
Pressure range | 0--10~ -100kPa, 0-10kPa~100MPa. |
Pressure type | Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Minus pressure (N). |
Accuracy | 0.2%FS, 0.5%FS |
Compensation temperature | -10~70ºC |
Operation temperature | -40~60ºC |
Output signal | 4-20mA;4-20mA with HART protocol; 0-10mA; 0-20mA; |
Power supply | 24V DC; |
Electrical connection | Hirschmann(DIN), Cable, Bendix connector(5pin, 4pin) |
Pressure connection | M20*1.5, Flush/Corrugation diaphragm or Clamp mounting, optional. |
Overload pressure | 150%FS |
Stability | 0.5%FS/ year |
Material | Shell: Stainless steel 304 |
Wetted parts: Stainless steel 304 or 316L |
Note: More technical parameters, please feel free to contact us. |

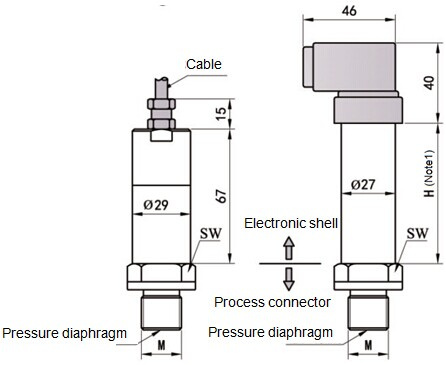

Dimensions of this Sanitary grade Plug connector 4-20mA Pressure transmitter :
Our service:
1. We have rich experience of OEM, factory can manufacture according to your request.
2. We could also send the goods which is labelling your brand name to your customer's warehouse directly.
3. We can offer you neutral packing without our logo and company information.
4. Warranty: We offer 12 months warranty for all of our products from shipping date;
5. You will enjoy free repair service for failures found within the warranty, if there are any problems of manufacturing quality;
6. We provide paid repair services for instrumentation damages beyond the warranty period or not arising from manufacturing quality problem.
Shanghai Wangyuan Instruments of Measurement Co., Ltd. is a high-tech enterprise level company specializing in industrial process control technology and products. We offer a complete product line of pressure, temperature, flow and indicator. Our products and services comply with the professional standards of CE, ISO 9001, RoHS, Explosion proof and CPA.
Our main products are including Pressure transmitters, Pressure transducers, Pressure sensor, Level Transmitter, Differential pressure transmitter (DP transmitter), Temperature transmitter, Flow meter, Intelligent indicator, Control instrument, Paperless recorder, Pressure switch and etc.
Our products are applying in the fields like food & beverage plant, water and waste water treatment, oil & gas, electric power, scientific research, ocean, boiler, coal mine, forklift weighing system HVAC systems, CNG & LNG, air condition, fuel pressure measurement and other process control industries.
In addition, with our highly skilled and experienced team of professional engineers and technicians we can provide integrated research and development services that rank us at the top of our industry. All products are thoroughly tested in-house with our vast array of calibration and special testing equipment. Our testing process is conducted in accordance with a strict quality control system.
With our on-site experience, research and development services we are a leader in the industrial automation field, and provide global customers with high quality products and services.
