Sanyu 2016 New Below Brake Resistor (2000W)

Name: Sanyu 2016 New Below Brake Resistor (2000W)
Brand: all-electronics-online.com
SKU: 690222495
Availability: InStock
Rating: 4.9 (103 reviews)

Price:	US $ 14/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Sanyu 2016 New Below Brake Resistor (2000W)

Ceramic Resistor

Power Resistor

Wirewound Resistor

Bellows Resistor

RXHG resistor

---------------------------------------------------------------------------------------------------------

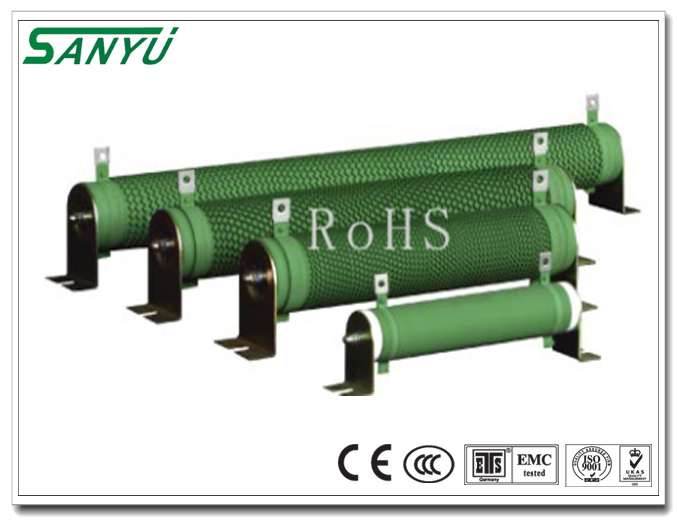

Two terminal extensions are fixed on both ends of a ceramic tube on whose surface winds wave-shaped alloy resistance wire and a high temperature-resistant and fireproof coating are applied. The ceramic tube can function as resistance wire skeleton and heat radiator as well. This product can be customized to special needs of customers and applicable to simulation load test, equipment discharge, automated control and inverter's energy loss brake.

--------------------------------------------------------------------------------------------------------

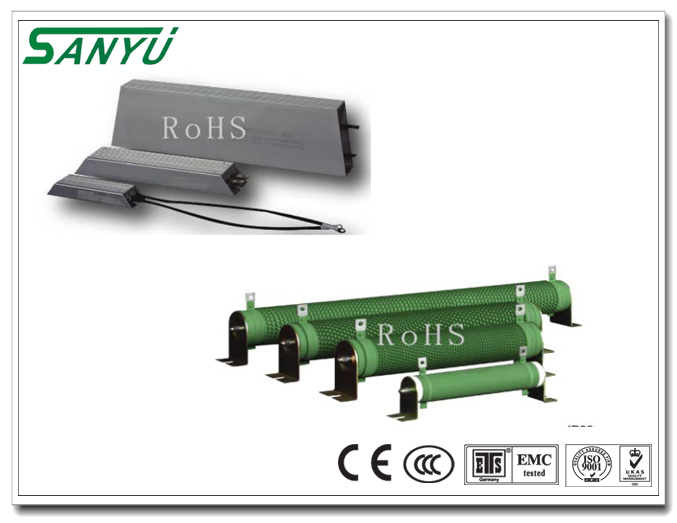

RXHG

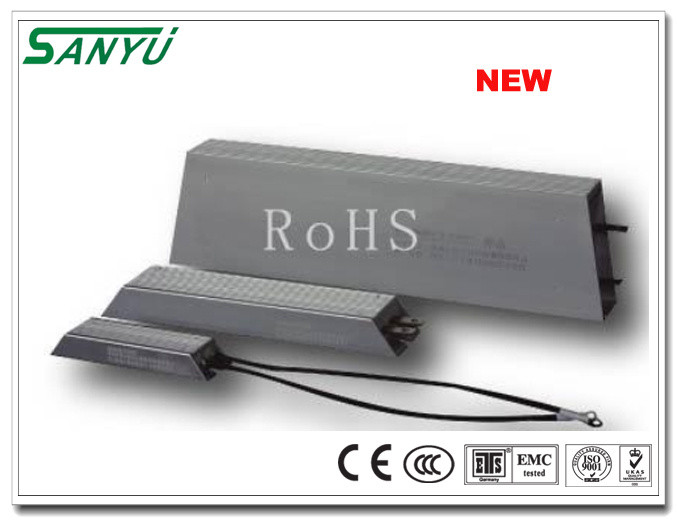

RXLG

Technical paremeters

power range: 50W-2500W
voltage range: 0.5KV-10KV optional

resistance range: 1R-1KR

pressure: AC2.5KV-20KV/1min 50Hz optional.
IP rating: IP00
vibration: 1g.
rated temperature rise: 375 degrees.
drift: 80-400ppm/degrees
Fluid contained material: 0Cr25AL5/Ni80Cr20 optional.

Advantages: high-voltage work

Disadvantages: less seismic
Packing: carton packaging

Specification

rated power (w)	specification (mm)
rated power (w)	L1(±2)	L2(±5)	L3(±3)	D(±2)	B	B1	H	H1(±3)	N	d	O
50	102	124	146	28	6.5	28	28	61	10	4.5	1.2
60	102	124	146	28	6.5	28	28	61	10	4.5	1.2
80	152	174	196	28	6.5	28	28	61	10	4.5	1.2
100	182	204	226	28	6.5	28	28	61	10	4.5	1.2
120	182	204	226	28	6.5	28	28	61	10	4.5	1.2
150	195	217	239	40	8	40	41	81	12	5.5	2.0
200	195	217	239	40	8	40	41	81	12	5.5	2.0
300	282	304	326	40	8	40	41	81	12	5.5	2.0
400	282	304	326	40	8	40	41	81	12	5.5	2.0
500	316	338	360	50	8	50	45	101	16	6	2.0
600	345	367	389	40	8	40	41	81	12	5.5	2.0
750	316	338	360	50	8	50	45	101	16	6	2.0
1000	300	325	350	60	8.5	60	60	119	16	6	2.0
1200	415	440	465	60	8.5	60	60	119	16	6	2.0
1500	415	440	465	60	8.5	60	60	119	16	6	2.0
2000	510	535	560	60	8.5	60	60	119	16	6	2.0
2500	600	625	650	60	8.5	60	60	119	16	6	2.0

About Samples:

Sanyu can offer sample product. For normal product, we can delivery within two working days; for special product, we can delivery in around five working days. For one piece sample of small power, we advise to use express way such as DHL, UPS, Fedex, EMS etc.

About shipping and delivery:

Sanyu has large inventory in stock, so for normal order, we can delivery in around 5 working days. For the delivery way, you can choose by sea, by air, by express way etc. It's according to your requirement. Also we will give you our advise since we have abudant experience.

Prod Model:	RXHG-2000W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resistance Tolerance:	±1%,±2%,±5%,±10%
Rated Power:	50-2500W
Temperature Coefficient:	±300ppm/°c
Operating Temperature:	-55°c~+275°c
Power Range:	50W-2500W
Voltage Range:	0.5kv-10kv
Resistance Range:	1r-1kr
Dielectric Strength:	AC3kv 50Hz/1min
IP Protection:	IP00
Resistance:	Fixed Resistor
Installation:	DIP Resistor
Material:	Ceramic and Metal
Package Type:	Throught Hole
Type:	Varistor
Function For Resistance:	Brake Resistor
Application:	Brake Resistor
Brand:	Sanyu
