Sanyu 2017 New Intelligent Vector Control Drives Sy7000-280g-4 VFD

Name: Sanyu 2017 New Intelligent Vector Control Drives Sy7000-280g-4 VFD
Brand: all-electronics-online.com
SKU: 809933035
Availability: InStock
Rating: 5 (132 reviews)

Price:	US $ 5500-7200/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

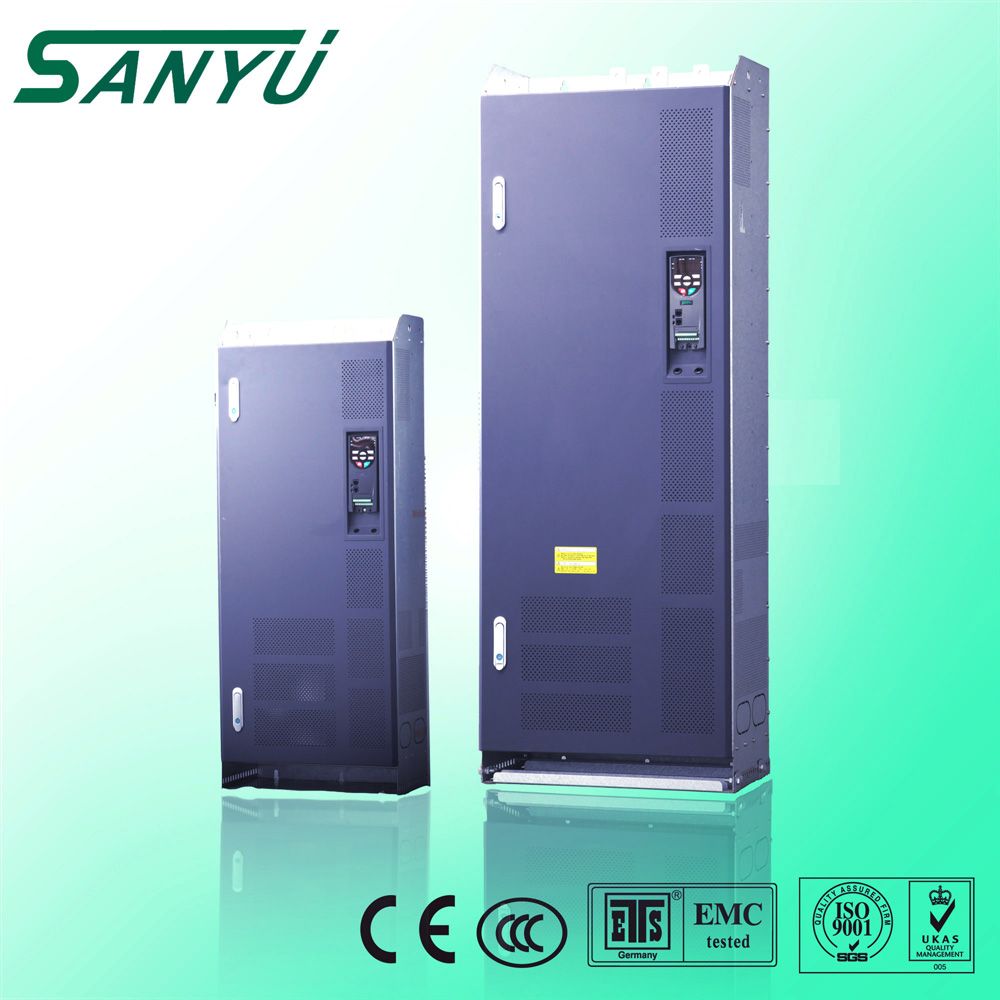

280KW Motor Drive for Fan Machine (SY7000-280G-4)

5 series of VFD/Frequency Inverter

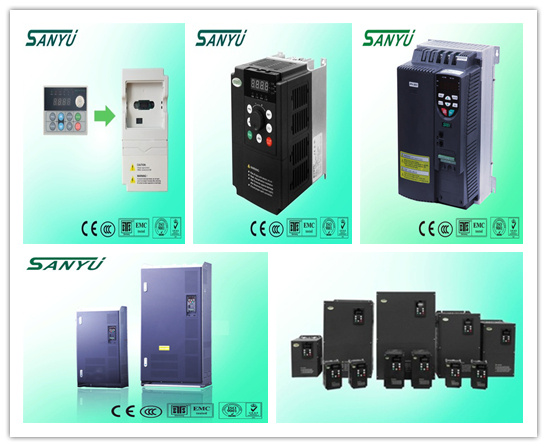

SY7000 series Frequency Inverter
1. The control mode is various and it is commonly used
2. The motor parameters can be automatically recognized
3. When the frequency is 0. 5Hz, the torque output will be 150%
4. Zero speed torque output
5. Supper-silent running
6. Trip suppression to achieve more stable running
7. The quick menu design
8. Simple PLC, PID adjustment
9. The structure is compact and light
10. Built-in RS-485 communication
11. Interface, standards MODBUS protocol
12. 25 types of protection functions

Specifications of SANYU Frequency Inverter SY7000 series

tem		description
	Rated voltage, frequency	Single phase,220V,50Hz/60Hz; 3 phase, 380V,50Hz/60Hz
	Rated voltage, frequency	Single phase,220V,50Hz/60Hz; 3 phase, 380V,50Hz/60Hz
input	Allowed fluctuation	Continuous voltage fluctuation:within±10%, instant voltage fluctuation: within -15%10%; voltage imbalance: <3%; frequency fluctuation: within 5%.
output	Voltage	Single phase,220V & 3 phase,380V
	Output frequency	0~600Hz.
	Overload capability	150% rated current,1 minutes; 180% rated current,1 seconds
control trait	Command input mode	By LCD keypad, by terminals, by PC through serial communication port.
	Control mode	Open loop vector control, V/F control.
	Speed setting method	By keypad, by analog, by PC through serial communication port
	Speed setting precision	Digital command±0.01%(-10 +40)

		analog command±0.1%(25°C±10)
	Speed setting resolution	Digital command:0.01Hz; analog command:0.1% of maximum frequency
	Speed control accuracy	Open loop vector control: ±0.5%; (25°C±10)
	Speed regulation range	Open loop vector control: 1:100
	Torque control response	Open loop vector control:<200ms.
	Start torque	Open loop vector control:150% of rated torque at 0.5Hz.
	Torque control accuracy	±5%
	Set reference voltage supply output	1 port, +10V, 5mA
	Control voltage supply output	24V,100mA
	Analogy input	2 terminal, No.4 terminal is use for voltage, No. 5 is used for voltage and current input
	Analog meter output	1 terminal, 0/4~20mA or 0~10V available for it
	DO frequency signal output	1 port, high-frequency signal output(programmable)
	Collector open-loop output	One terminal
	Programmable relay output	contactor capacity: 250V AC/3A or 30V DC/1A
	Serial communication port	RS-485 connector RS485+,RS485-
	4 bits LED display	setting frequency, output frequency, output voltage, output current, motor speed, output torque, switch value terminal, programming menu parameters and fault code.
	Five indication lamp	Parameter unit, RUN/STOP status, special status, charging status.
Protection function	Protection function	Over voltage, under voltage, current limitation, over current, overload of inverter, overload of motor, overheat, overvoltage stallout, load short circuit, phase fault.
	Protection degree	IP21
	Cooling mode	Forced air cooling
environment	Ambient temperature	-10°C,+40°C
	Temperature	2090% RH(no condensation)
	Storage temperature	-20°C,+ 60°C
	Application area	indoor(no corrosive odor, dust)
	Installation area	Altitude is not more than 1000meter, no dust, no corrosive oder, no direct sunlight.
	Vibration	less than5.9m/ S 2

Catalogue of SANYU Frequency Inverter SY7000 series

Model	Applicable motor (KW)	Rated input current (A)	Rated output current (A)	Dimension (LWH mm)	G.W. (KG)	Input voltage
SY7000-0R7G-4	0.75	3.4	2.5	100154173	1.8	380V±15% 3Phase
SY7000-1R5G-4	1.5	5.0	3.7	100154173	1.8
SY7000-2R2G-4	2.2	5.8	5	100171260	3.0
SY7000-004G/5R5P-4	4/5.5	10/15	9/13	100171260	3.0
SY7000-5R5G/7R5P-4	5.5/7.5	15/20	13/17	175171260	4.5
SY7000-7R5G/011P-4	7.5/11	20/26	17/25	175171260	4.5
SY7000-011G/015P-4	11/15	26/35	25/32	248175350	11
SY7000-015G/018P-4	15/18	35/38	32/37	248175350	11
SY7000-018G/022P-4	18/22	38/46	37/45	248175350	14
SY7000-022G/030P-4	22/30	46/62	45/60	248175350	14
SY7000-030G/037P-4	30/37	62/76	60/75	325245540	30
SY7000-037G/045P-4	37/45	76/90	75/90	325245540	30
SY7000-045G/055P-4	45/55	90/105	90/110	325245540	30
SY7000-055G/075P-4	55/75	105/140	110/150	360280855	62
SY7000-075G/090P-4	75/90	140/160	150/176	360280855	62
SY7000-090G/110P-4	90/110	160/210	176/210	3602901040	72
SY7000-110G/132P-4	110/132	210/240	210/253	3602901040	72
SY7000-132G/160P-4	132/160	240/290	253/300	3602901040	72
SY7000-160G/185P-4	160/185	290/330	300/340	5153201315	138
SY7000-185G/200P-4	185/200	330/370	340/380	5153201315	138
SY7000-200G/220P-4	200/220	370/410	380/420	5153201315	270
SY7000-220G/250P-4	220/250	410/460	420/470	5153201315	270
SY7000-250G/280P-4	250/280	460/500	470/520	5153201315	270
SY7000-280G/315P-4	280/315	500/580	520/600	6003651665	285
SY7000-315G/350P-4	315/350	580/620	600/640	6003651665	285
SY7000-350G/400P-4	350/400	620/670	640/690	6003651665	285
SY7000-0R7G-2	0.75	5.0	4.5	100154173	1.8	220V±15% 3Phase

Exhibition

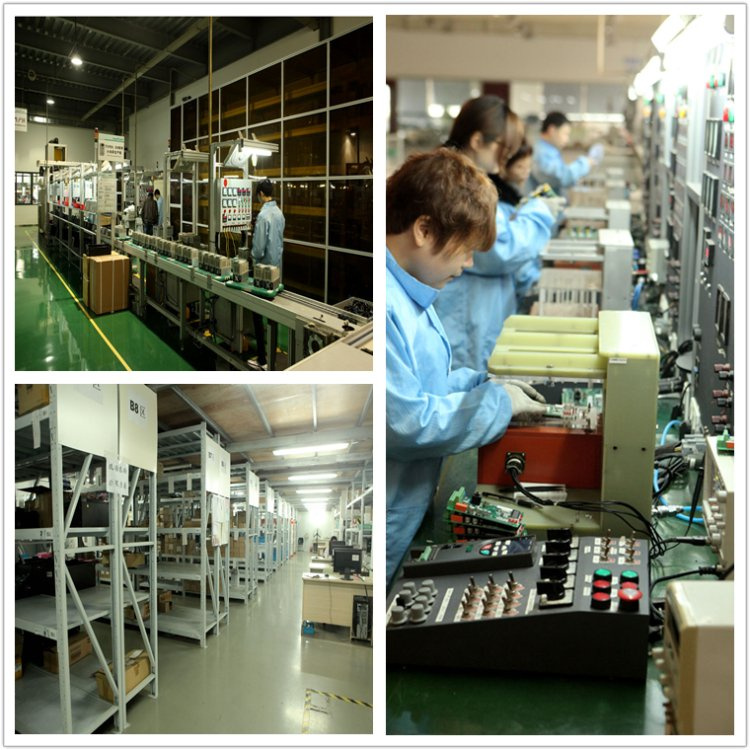

Company profile

Shanghai Sanyu Industry CO LTD is one of the leading AC drive, power inverter, high frequency inverer and soft starterand welding machine manufactures and exporters in Shanghai China, which has about 20 years history in this field.
Till now our products have been exported to more than 30 countries.
Our inverter and soft starter were used in "Beijing Olympic Center, Shanghai Expo Pavilion, Shanghai Air Port" etc.
We possess CE, ISO9001, SGS, CCC certificate and so on.
We successfully developed AC drives as SY6600 series, SY7000 series, SY8000 Series and SY8600 series, Soft Starter as SJR2-2000 series economical type, SJR2-5000 intelligent type, SJR2-3000 built-in bypass type.

Delivery

FAQ

Q1. Factory or trade company only? What certifications do you get?
A: We are factory absolutely. And we have CE, ISO9001, SGS, CCC.
Q2. Can I be your sale agent in our market?
A: Why not, welcome. Email me now if you are interested.
Q3. What is your MOQ?
A: The Minimum Order Quantity is 1 set.
Q4. What will your company do for the warranty?
A: All the goods are 100% quality testing before shipping. We'll offer 12 or 18 month warranty.During the
warranty period,if goods have any quality problem without any human factors, we'll send parts for your repair and replace.
Q5. Can you accept OEM orders?
A: Yes, OEM/ODM orders are highly welcome.
Q6. what's the payment term?
A: We accept T/T, L/C, West Union, Cash, etc.
Usually, T/T 30% deposit and 70% balance before shipment or against copy of B/L. 100% for at sight LC.
Q7. What package standard?
A: For small capacity,we packed with carton,but for big capacity,we can make the pallet or use strong
wooden case to distinguish and protect the goods.
Q8. why choose us ?
A: 1. Famous brand in china for 10 more years ---- Sanyu
2.Easy operating system ---- Easy but effective software, gentle touch achieves
3. Stable performance ---- best famous compenents ensure the quality all the time
4. Excellent aftersales service ---- 24*7 hours online serive, never leave you alone.
5. Fast delivery ---- cheap & safe delivery, we look after it all the time
Q9. What is your production capacity?
A: 3000 sets per month, could provide customerlized package upon requests.

Prod Model:	SY7000
Brand Name:	Sanyu
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	Slip Frequency Control Transducer
Switch Mode:	High Carrier Frequency PWM Control
Main Circuit Type:	Voltage
Brand:	Sanyu
