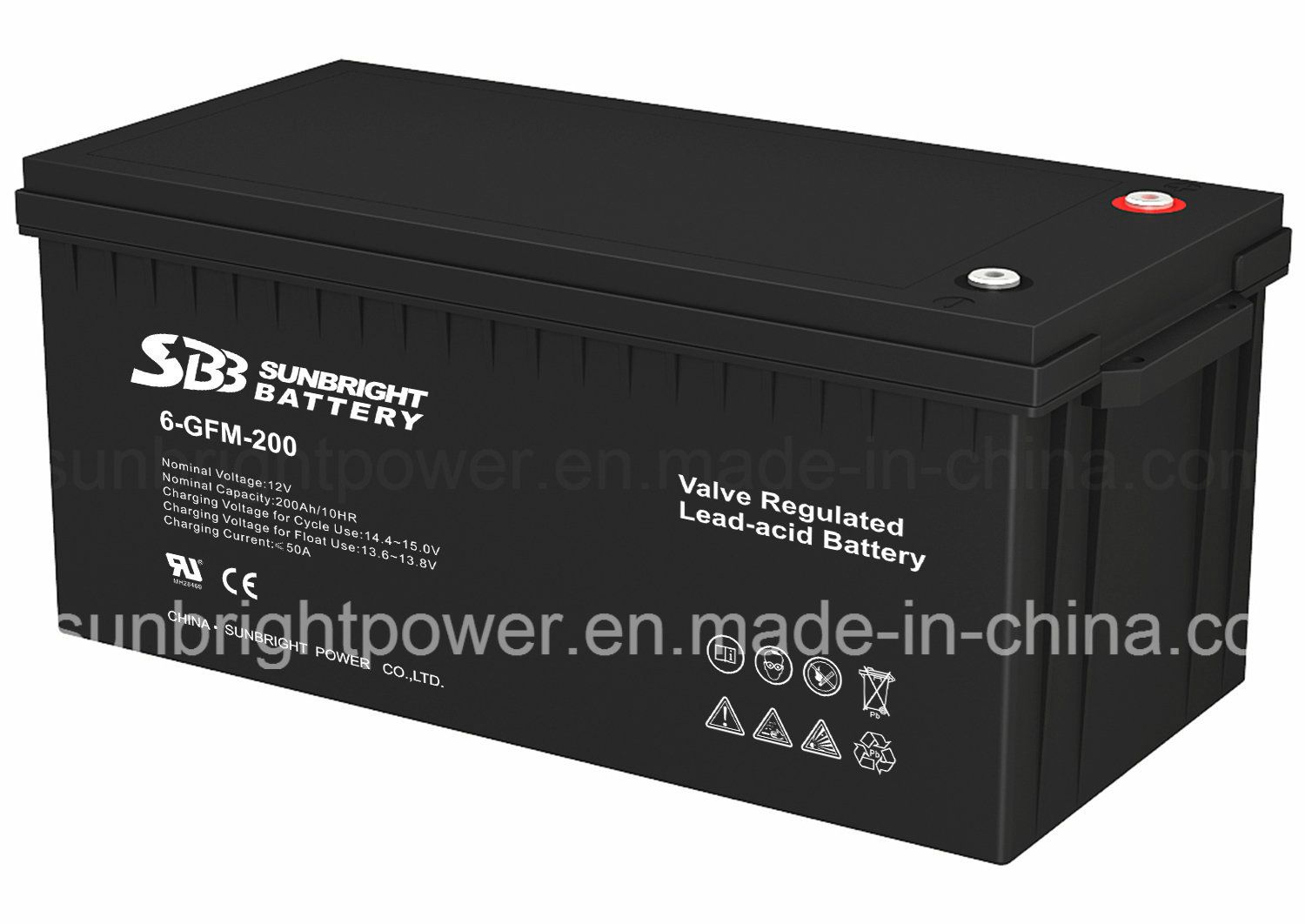

Prod Model: |
6-GFM-200 12V200ah |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
L*W*H*T.H= 523*240*219*223 Mm |
Type: |
Lead-Acid Batteries |
Rechargeable: |
Chargeable |
Discharge Rate: |
High Discharge Rate |
Shape: |
Square Battery |
Nominal Voltage: |
12V |
Usage: |
All of Backup Power Supply, Like UPS, etc |
Product Description
This series designed for UPS/EPS, Emergency lighting (medical, insurance, bank, tax administration and recreation), Spot light, energy saving lamp, Railway and airline signals, Alarming and security, Instruments and meters, electrical D/C power sources.
Voltage: 6V, 12V; Capacity 1.2Ah to 26Ah
Designed service life: 5 years (25C)
Good vibration proof and shock proof performance
High specific energy
Perfect performance and over-discharging recovery performance
Low rate of self-discharge: ≤ 3%(25C)monthly on average
Wide suitability of ambient temperature range: -15C~45C
COMMON BATTERY MODEL |
NO. | MODEL | DIMENSION(MM) |
L | W | H | T.H |
1 | 3-FM-4 | 70 | 47 | 100 | 104 |
2 | 3-FM-4.5 | 70 | 47 | 100 | 104 |
3 | 3-FM-5 | 70 | 47 | 100 | 104 |
4 | 3-FM-5.5 | 70 | 47 | 100 | 104 |
5 | 3-FM-6 | 85 | 47 | 100 | 105 |
6 | 3-FM-7 | 151 | 35 | 94 | 98 |
7 | 3-FM-7.5 | 151 | 35 | 94 | 98 |
8 | 3-FM-8 | 151 | 35 | 94 | 98 |
9 | 3-FM-10 | 151 | 50 | 94 | 98 |
10 | 3-FM-12 | 151 | 50 | 94 | 98 |
11 | 6-FM-4 | 90 | 70 | 101 | 105 |
12 | 6-FM-4.5 | 90 | 70 | 101 | 105 |
13 | 6-FM-5 | 90 | 70 | 101 | 105 |
14 | 6-FM-5.5 | 90 | 70 | 101 | 105 |
15 | 6-FM-6 | 90 | 70 | 101 | 105 |
16 | 6-FM-7 | 151 | 65 | 94 | 98 |
17 | 6-FM-7.5 | 151 | 65 | 94 | 98 |
18 | 6-FM-8 | 151 | 65 | 94 | 98 |
19 | 6-FM-8.5 | 151 | 65 | 94 | 98 |
20 | 6-FM-10 | 151 | 98 | 94 | 98 |
21 | 6-FM-12 | 151 | 98 | 94 | 98 |
22 | 6-FM-17 | 181 | 77 | 167 | 167 |
23 | 6-FM-18 | 181 | 77 | 167 | 167 |
24 | 6-FM-20 | 181 | 77 | 167 | 167 |
25 | 6-FM-24 | 175 | 166 | 125 | 125 |
26 | 6-FM-26 | 175 | 166 | 125 | 125 |
27 | 6-FM-33 | 195 | 130 | 155 | 168 |
28 | 6-FM-35 | 195 | 130 | 155 | 168 |
29 | 6-FM-38 | 196 | 165 | 170 | 170 |
30 | 6-FM-40 | 196 | 165 | 168 | 168 |
31 | 6-FM-50 | 230 | 137 | 210 | 215 |
32 | 6-FM-55 | 230 | 137 | 210 | 215 |
33 | 6-GFM-65 | 350 | 167 | 174 | 174 |
34 | 6-GFM-60 | 260 | 167 | 213 | 216 |
35 | 6-GFM-70 | 260 | 167 | 213 | 216 |
36 | 6-GFM-80 | 330 | 173 | 217 | 220 |
37 | 6-GFM-85 | 330 | 173 | 217 | 220 |
38 | 6-GFM-90 | 330 | 173 | 217 | 220 |
39 | 6-GFM-100 | 330 | 173 | 217 | 220 |
40 | 6-GFM-120 | 406 | 173 | 236 | 236 |
41 | 6-GFM-150 | 486 | 171 | 243 | 243 |
42 | 6-GFM-180 | 523 | 240 | 219 | 223 |
43 | 6-GFM-190 | 523 | 240 | 219 | 223 |
44 | 6-GFM-200 | 523 | 240 | 219 | 223 |
45 | 6-GFM-230 | 521 | 269 | 203 | 206 |
46 | 6-GFM-250 | 520 | 269 | 220 | 224 |
47 | GFM-100 | 171 | 68 | 328 | 348 |
48 | GFM-200 | 174 | 112 | 335 | 345 |
49 | GFM-300 | 176 | 155 | 332 | 341 |
50 | GFM-400 | 210 | 175 | 332 | 342 |
51 | GFM-500 | 243 | 174 | 332 | 342 |
52 | GFM-600 | 300 | 175 | 332 | 342 |
53 | GFM-800 | 412 | 175 | 332 | 342 |
54 | GFM-1000 | 480 | 175 | 332 | 342 |
55 | GFM-1500 | 405 | 355 | 343 | 353 |
56 | GFM-2000 | 490 | 353 | 343 | 353 |
57 | GFM-2500 | 490 | 353 | 343 | 353 |
58 | GFM-3000 | 710 | 353 | 341 | 363 |
59 | 6-GFM(F)-120 | 557 | 125 | 232 | 232 |
60 | 6-GFM(F)-150 | 551 | 109 | 288 | 288 |
61 | 6-DZM-20 | 182 | 77 | 170 | 170 |
|
|
|
|
|
|
|
|
|
|
|
|
Sunbright Power, leading manufacturer focused in design and produce maintenance free sealed lead acid battery in China. The company registered capital of 8 million USD, with a total investment 70 million USD. It covers an area of 220 acres, 70, 000 square meter production plant, and annual production capacity of one million KVAh.
The batteries made by Sunbright include backup batteries applied in telecommunications, Power Plant, UPS battery, fire alarm system, emergency lighting and efficient energy storage batteries used in solar energy, wind energy and, as well as motive power batteries for electric vehicles, golf carts, electric forklift, electric traction trucks and other fields. All products are CE certificated, UL certificated, and TLC, ROSH certificated.
Sunbright Power possess the advanced technology and top equipment, the company has co-founded with the Fudan University, "Fudan University – Sunbright Power Electrochemical Energy Research Center", also cooperation with Wuhan University in research focused on super-batteries used in electric vehicles, and together with the Zhejiang University in focused research in ultra-low temperature resistance batteries. As well as powerful alliance and close technology partner with the world' S leading battery manufacturer BE Company in the Australian. Through independent research, cooperative research, and absorbed technology from foreign battery manufacturers, Sunbright built many market oriented products for our esteemed customers.
Sunbright Power regards product quality the life of the company. It has the strictest quality assurance system, the company has adopted the following: SGS ISO9001 quality management system certificate, ISO14001 environment system certificate, and the company actively promote the 5S and Six Sigma management.
With qualified product and reliable service, Sunbright batteries have been widely reputed in the oversea market. "Sunbright" is now marching towards perfection in an unconventional developing. By booming of the national battery industry as its own duties, exceeding the limits and bravely facing competition from any other enterprises, "Sunbright" is becoming a shining pearl in Chinese lead acid battery industry.
