Feature:

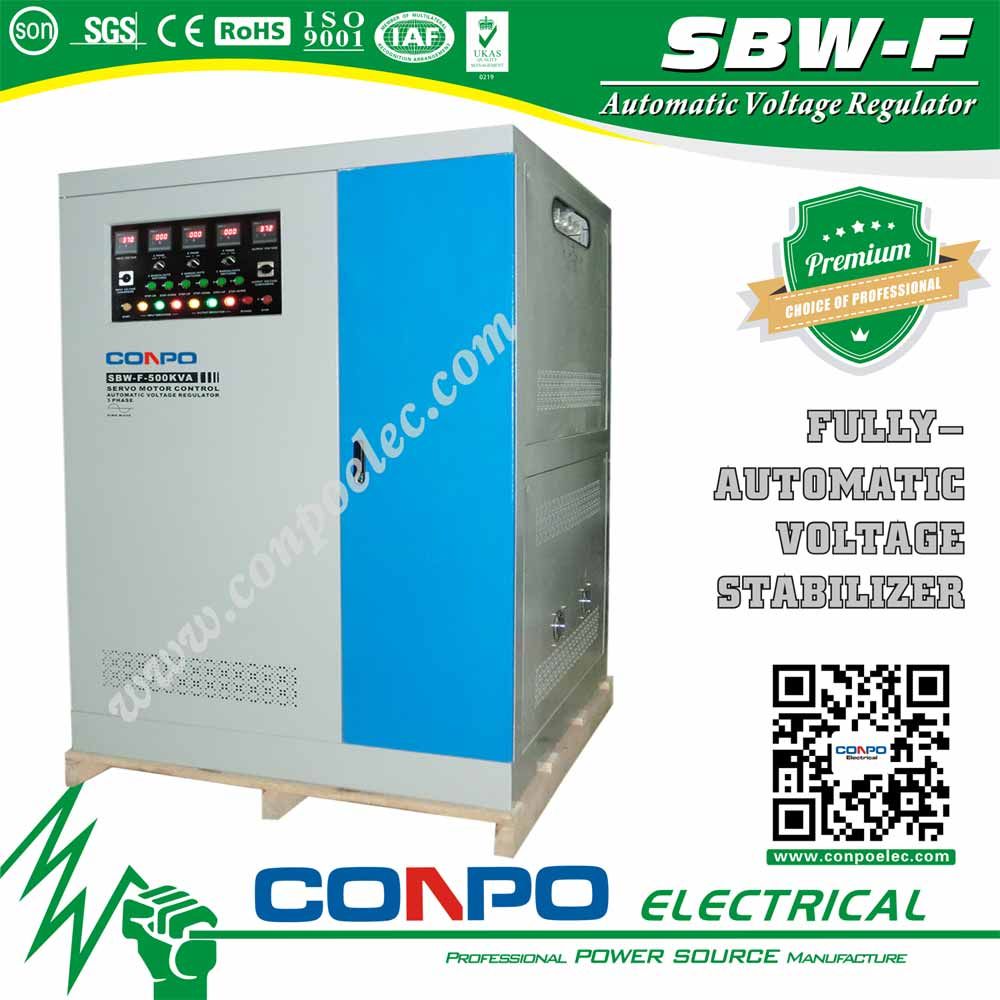

The Split-Phase Regulating Full-Automatic Compensated Voltage Stabilizer/Regulator is composed of three sets of single-phase voltage stabilizer by 'star-shaped' connection. With the function of three phases independently voltage-stabilizing, it applies to the unbalanced input voltage of three phases or unbalanced three phase loads. Moreover, it has the functions such as voltage regulating stability, high voltage stabilizing precision, and auto-balance of three phases. The regulating voltage voltage parts of this series voltage stabilizer is adopted the pillar, Therefore, it has more power and more reliability.
Application:
It is widely used in the place with large electricity demands such as factories, post & communication, schools, hotel etc., acted as whole voltage-stabilization single voltage-stabilizing.
Specification:
Phase No.: Three phase four system, Split-Phase Regulating or Each Phase controlling independently
Input voltage:
Phase voltage 220V+/-20%(176~264VAC), wire voltage 380V+/- 20%(304~356VAC) or
Phase voltage 220V+/-30%(154~286VAC), wire voltage 380V+/-30%(266~494VAC)(Optional)
Output voltage: Phase voltage 220VAC, wire voltage 380VAC
Accuracy of voltage: +/-2-5%(adjustable)
Frequency: 50Hz/60Hz
Efficiency: >95%
Response time: <1.5S(against 10% input voltage deviation)
Ambient Temperature: -10C~+40C
Insulation resistance: >2MΩ
Waveform distortion: Non additional waveform distortion
Protection:
Over voltage, over current, phase failure, phase sequence, machine fault indication etc. Protection function.
Over-load capacity: 1min. At the rated current of 2times
Electricity-resistance strength: Power frequency sinusoidal is 2000VAC without breakdown and flash over when it lasts 1min.
Remarks:
Custom-made specifications are acceptable.
| Model | Rated Power | Package Size(Approx. ) | Qty. Per Pkg |
| SBW-F-10KVA | 10KVA/3Phase | 74*96*135CM | 1UNIT/PKG |
| SBW-F-15KVA | 15KVA/3Phase | 74*96*135CM | 1UNIT/PKG |
| SBW-F-20KVA | 20KVA/3Phase | 74*96*135CM | 1UNIT/PKG |
| SBW-F-30KVA | 30KVA/3Phase | 91*116*143CM | 1UNIT/PKG |
| SBW-F-40KVA | 40KVA/3Phase | 91*116*143CM | 1UNIT/PKG |
| SBW-F-50KVA | 50KVA/3Phase | 91*116*143CM | 1UNIT/PKG |
| SBW-F-60KVA | 60KVA/3Phase | 91*116*143CM | 1UNIT/PKG |
| SBW-F-80KVA | 80KVA/3Phase | 91*116*143CM | 1UNIT/PKG |
| SBW-F-100KVA | 100KVA/3Phase | 91*116*143CM | 1UNIT/PKG |
| SBW-F-150KVA | 150KVA/3Phase | 106*126*188CM | 1UNIT/PKG |
| SBW-F-180KVA | 180KVA/3Phase | 106*126*188CM | 1UNIT/PKG |
| SBW-F-200KVA | 200KVA/3Phase | 106*126*188CM | 1UNIT/PKG |
| SBW-F-250KVA | 250KVA/3Phase | 125*135*185CM | 1UNIT/PKG |
| SBW-F-300KVA | 300KVA/3Phase | 125*135*185CM | 1UNIT/PKG |
| SBW-F-350KVA | 350KVA/3Phase | 125*135*185CM | 1UNIT/PKG |
| SBW-F-400KVA | 400KVA/3Phase | 125*135*185CM | 1UNIT/PKG |
| SBW-F-450KVA | 450KVA/3Phase | 125*135*185CM | 1UNIT/PKG |
| SBW-F-500KVA | 500KVA/3Phase | 130*145*200CM | 1UNIT/PKG |
| SBW-F-600KVA | 600KVA/3Phase | 130*145*200CM | 1UNIT/PKG |
| SBW-F-800KVA | 800KVA/3Phase | 85*120*200CM x 3cabinets | 1UNIT/PKG |
| SBW-F-1000KVA | 1000KVA/3Phase | 85*120*200CM x 3cabinets | 1UNIT/PKG |
| SBW-F-1200KVA | 1200KVA/3Phase | 85*120*200CM x 3cabinets | 1UNIT/PKG |
| SBW-F-1600KVA | 1600KVA/3Phase | 130*145*210CM x3cabinets | 1UNIT/PKG |
| SBW-F-1800KVA | 1800KVA/3Phase | 130*145*210CM x3cabinets | 1UNIT/PKG |
| SBW-F-2000KVA | 2000KVA/3Phase | 130*145*210CMx3cabinets | 1UNIT/PKG |
| SBW-F-2500KVA | 2500KVA/3Phase | 130*145*210CM x3cabinets | 1UNIT/PKG |
