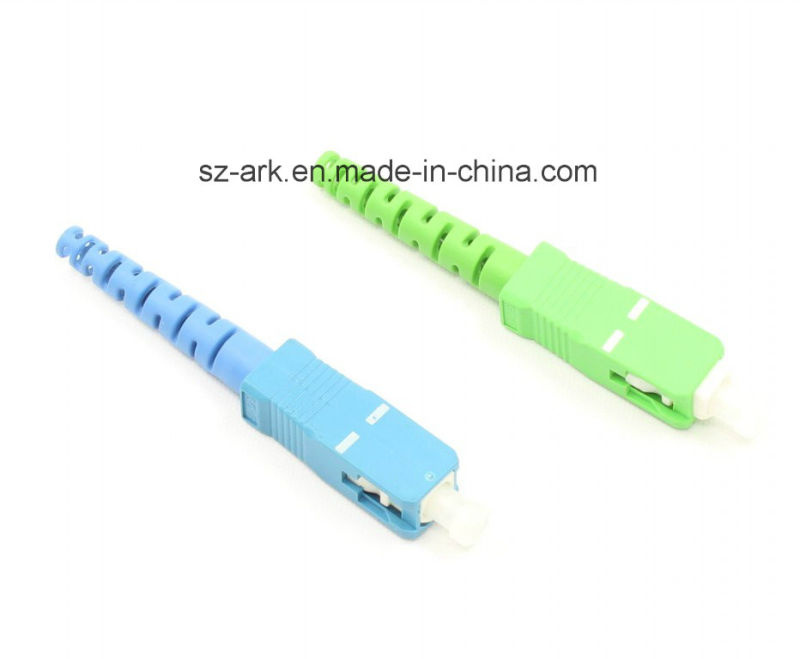

Sc 3.0mm Singlemode Fiber Optic Connectors

Name: Sc 3.0mm Singlemode Fiber Optic Connectors
Brand: all-electronics-online.com
SKU: 775869775
Availability: InStock
Rating: 4.9 (77 reviews)

Price:	US $ 0.48-0.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

BRIEF INTRODUCTION
The optical fiber connector is one of the most basic passive components in the optical fiber communication. There are difference ferrule materials (ceramic, plastic, metal), a variety of body and boot color to choose. Through the process of curing and polishing, etc., the connector is combined with various of fiber optic cable and made into different kinds of patchcord (jumper), which have been widely applied to the CATV system, communications system, FTTx system, Local Area Networks, Wide Area Networks, Metro,Test equipment, Active device termination and so on. The ARK has nearly 10 years of experience in producing connectors and all of the products are meet the Telcordia and IEC stander, the material compliance RoHS. If you have other special requirements, the ARK will be specifically for your customization to meet your needs.
Note: Ferrule with/without flange is available
SPECIFICATIONS

ITEM	PARAMETER
Applicative Connector Type	SC,LC,FC,ST,MU,D4,DIN
Fiber mode	Single mode	Multi-mode
Test wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	typical≤0.20dB,Max≤0.30dB	typical≤0.15dB,Max≤0.25dB
Return Loss	UPC≥50.0dB,APC≥60.0dB	≥35.0dB
Durability	≤0.20dB typical change,1000 mating
Applicative cable OD.	∮0.9mm/∮1.8mm&∮2.0mm /∮3.0mm (MU only ∮0.9mm/∮2.0mm)
Connector Ferrule OD.	∮2.5mm:SC, FC,ST,DIN; ∮2.0mm:D4; ∮1.25mm:LC,MU
Angle BOOT	SC,LC(45 or 90 degree)
Operating Temperature	-20ºC to +70ºC
Storage Temperature	- 40ºC to +85ºC
Ferrule Specification	125.3+1/-0μm, Concentricity: ≤1.0μm	127+3/-0μm, Concentricity: ≤3.0μm

SC/APC ferrule polishing type:

APC APC

(Conical type) (Step type)

Prod Model:	SC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Boot Type:	Smooth, Slotted
Boot Size:	0.9mm,2.0mm,2.4mm,3.0mm
Housing Color:	Blue, Green, Beige, Metal, Black, White, Yellow
Ferrule Type:	125um to 130um
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Transmission Medium:	Singlemode and Multimode
Light Source TYPE:	1310nm,1550nm,850nm
Connector Type:	Sc
Brand:	Ark

Operating since 1998

Ark was established in 1998, during a time when optical communications was a fledgling industry in China. As an experienced manufacturer, we provide a wide range of products including SM/mm fiber-optic connectors, multiplexers, optical attenuators, MPO cassettes and optical distribution frames.

Providing OEM and Training Services

Our engineering team can design custom products in accordance with clients' requirements. These specialized products are available with bilingual (English and Chinese) installation manuals. OEM and training services can be provided upon request. We began as a school-run factory and now widely recognized as a pioneer in the field.

When the National Research Institute of Telecommunications completed the first trial fiber-optic connector in China, we became a designated manufacturer. Our double status as a learning institution and a production center provided the perfect accommodations for this important project. An experienced taskforce of technicians had worked round the clock to put the new technology into production. Months of dedication and countless trials allowed us to successfully implement the prototype technology into finished products. Extensive collaboration with research centers enabled us to yield the first-ever domestically produced fiber-optic connector. This achievement marked the beginning of a new era for the Chinese optical communications industry.

We have established a production base in Jiangxi for the focused production of fiber-optic connectors and adapters. In 2005, we built a production facility for jumpers and attenuators in Shenzhen. Its establishment was complimented with the addition of an independently operated sales center and R&D institute.

Meeting RoHS and SGS Standards

We have successfully passed the ISO 9001 certification because of our meticulousness in the whole production process. Advanced manufacturing techniques and premium raw materials ensure the outstanding quality of our competitively priced products. All our products are compliant with RoHS and SGS standards.

Trusted by Well-known Companies

Our major clients include well-known companies such as Shenzhen Huawei Technologies, Wuhan Acceling Technologies, Shenzhen Sunsea Telecommunications and Luoyang Aviation Electrical Factory. We are the only supplier of SC optical connectors for the Ericsson (Europe). We are also the preferred supplier of the Telefonica (China branch).

Contact Us

We have redoubled our product development efforts to accommodate fluctuating market demands. Successive investments in 2012 and 2013 enabled our Shenzhen facility to produce new products such as CWMD and DWDM modules. We seek to cooperate with prospective partners in the creation of a brand new chapter in the optical communications industry. Call now.
