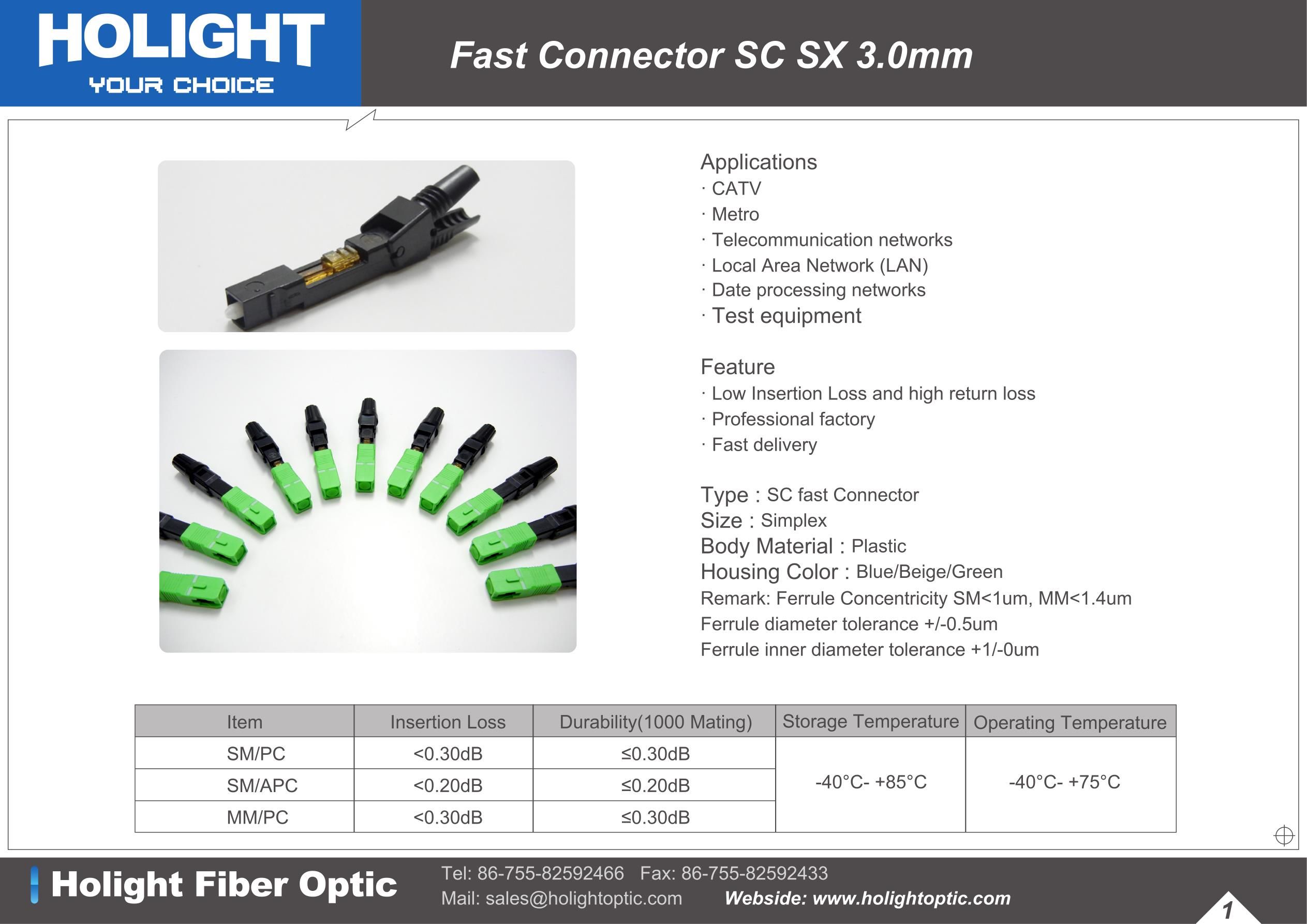

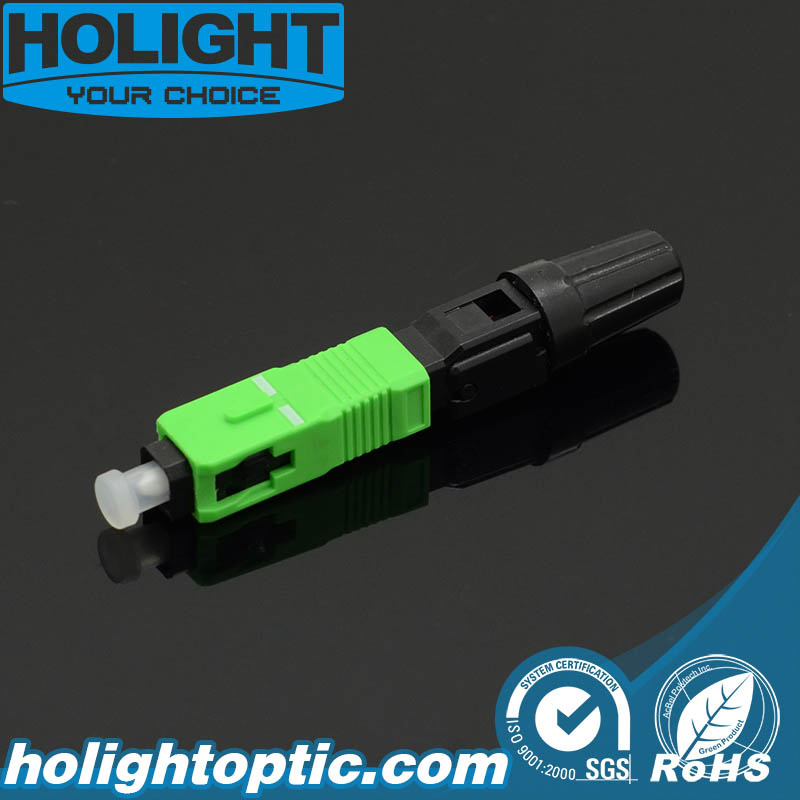

PRODUCT NAME : SC/APC Fiber Optic Fast Connector for FTTHFiber Optic Fast Connector designed for FTTH is a new generation of fiber connector used in assembly. It can provide Open flow and Precast type of products, whose optical and mechanical specification meets the standard optical fiber connector. it is designed for high quality and high efficiency for installation. the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. Adapted fiber pre-installed structure, and convenient for field installation.
Application· Connections at the desk for LAN environments
· Optical access network
· Fiber to the Subscriber (FTTX) applications
· Patch panels
· Direct equipment termination
Feature· Factory-installed fiber stub
· No epoxy or polishing required
· Quick and easy fiber termination in the field
· Eliminates cable excess length and pigtail splice storage
· Cost effective
Specification| Items | Technical Parameters |
| Applicable for | Drop cable 3.1*1.9m, Indoor cable |
| Optical fiber | SM(9/125G657A & G657B ) |
| Tight buffer diameter | 250μm |
| Fiber mode | Single mode |
| Operation time | About 100s(no fiber cut) |
| Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return loss | ≥ 60dB |
| Fastening strength of naked fiber | > 5 N |
| Fastening strength of naked fiber holder | > 10 N |
| Tensile strength | > 50 N |
| Using temperature | -40~ 75°C |
| On-line tensile strength (20 N) | IL ≤ 0.5dB; RL ≤ 5dB |
FAQ
1. Are you a manufacturer or trade company?
We are the manufacturer with 13 years' history.
2. What is your fiber brand ?
Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC
3. What is your main product ?
Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal Box, except that, we have very good prices for part of fiber tools!
4. How can we place order?
After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment (deposit) we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost!
5. What is the quality for your product?
All of our product are with high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!
6. How do you arrange the shipping?
Solution A: HOLIGHT take care of everything. Clients only need to collect cargo in local or wait cargo delivery to their office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Shenzhen logistic company to do the shipping, HOLIGHT follow the company's instructions and finish the shipping.
7. How can you guarantee the delivery time?
1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience. We can regulate the penalty clause in the contract for the late delay.
8. What's your best price for your passive fiber optic product?
Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.
9. What is your quality control for your fiber optic product ?
1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.
10. Why choose HOLIGHT Fiber Optic to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience .
5. We have professional team to provide comprehensive one-stop service for you.
Please always feel free to contact us for any questions, it's our honor to be on service of you!
Holight, established in 2004, is a leading professional fiber optic patchcord manufacturer and exporter from China. We focus on producing fiber optic connector parts to overall assembly to the customers from all over the world. With nearly 12 years' experience in the export market, Holight has been continually growing and expanding the product lines to keep up the pace of industry trends.
We integrate with the international advanced production technology, management experience and domestic market realities, offer customers the most suitable program of cooperation by the best quality, the most reasonable price, and the best customer service, that's why our products export to countries and regions of the world.
Our company name "Holight" is made up of Honesty, Belief and Righteousness, we will always keep this management mode into our mind! By this strong mode, we are confident to make our company remain invincible in the intense market competition and keep developing, growing and marching towards success and splendor.
Please kindly feel free to browse our webside, if you are interested in any of our products, please do not hesitate to contact us for more detailed information, and we will be highly appreciated to hear from you. We would like to answer any doubts or questions from you. We are looking forward to cooperating with clients from both home and abroad.
