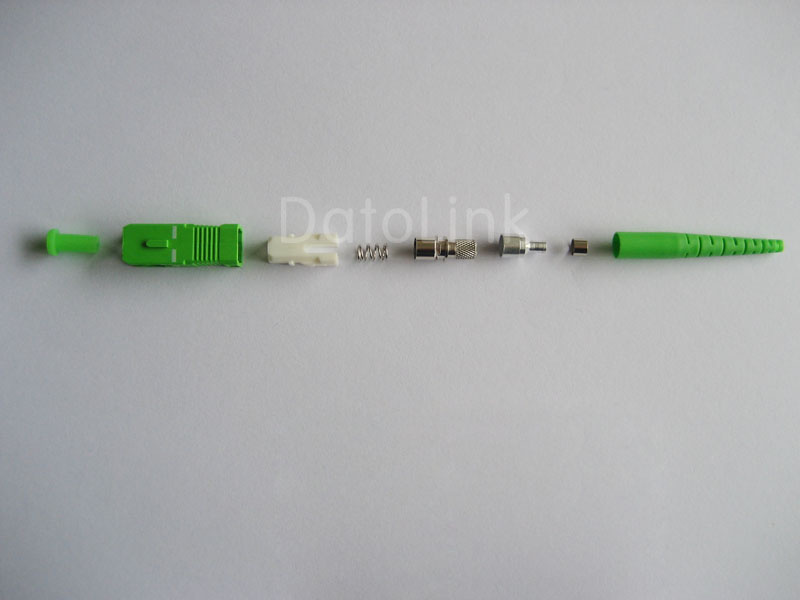

Product Name: SC Fiber Optic Connector

Sc Stands for Subscriber Connector- a General Purpose Push/Pull Style Connector Developed by Ntt. Sc Has an Advantage in Keyed Duplexibility to Support Send/Receive Channels.

Features:

Low Insertion Loss and High Return Loss
Free-Floating Ceramic Ferrule
UL-Rated Plastic Housing and Boot
Boots in a Variety of Colors
High Precision Alignmentconctor

Applications:

Local Area Networks (Lans) and Wide Area Networks (Wans)
Fiber Optic CATV, FTTH, FTTB, Fttp etc
Fiber Optic Telecommunication Systems
Transmission Mode (ATM)
Fiber Optic Backbone
Military Instrumentation

Availability:

-The Connector Can Be Supplied as a Pre-Assembled One-Piece Connector or as Connector Kits.
-Clips Are Available for Sc and LC Duplex Connectors
Housing Kits Without Ferrule Are Available.
-PC, Upc and APC Are Available

Specifications
	Single mode	Multimode
Insert Loss	≤0.20dB	≤0.25dB
Return Loss	≥50 dB (PC)
	≥55 dB (UPC)
	≥65 dB (APC)
Durability	<0.20 dB typical change, 1000 mating
Operating Temperature	From -40 to + 80 degree	From -40 to + 80 degree
Ferrule Hole Sizes	125.0+1/-0μm, Concentricity: ≤1.0μm	125μm, Concentricity: 1≤3μm
	125.5+1/-0μm, Concentricity: ≤1.0μm	127μm, Concentricity: 1≤3μm
	126.0+1/-0μm, Concentricity: ≤1.0μm	128μm, Concentricity: 1≤3μm

Why you choose us ?

1.Factory, OEM/ODM available
2.Steady quantities supply, Strict quality control
3.Excellent Datolink or your own brand box/roller design and package
4.Stirictly conform to ISO, Rohs CE certificates
5.Long time experience at domestic and export market

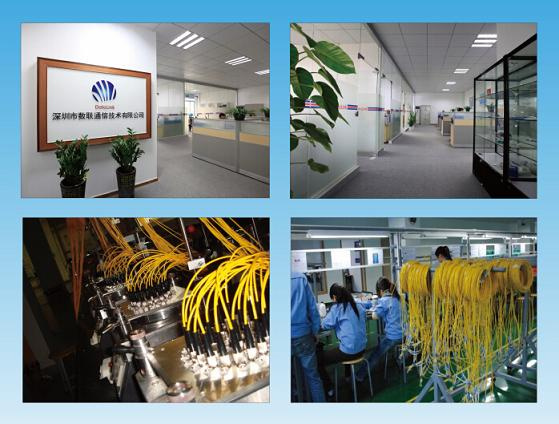

Welcome you visit our factory !

Relying on good prestige, creditable quality, perfect service and reasonable price, our company win the confidence of customers. We sincerely welcome old and new customers home and abroad to visit our manufactory and bulid the long term business relationshiop with us !

FAQ :
1.Are you factory ?
Yes,we are factory ,our factory located in Shenzhen ,Longgang district .
2.What products your factory mainly produce ?
Our factory mainly produce LC,SC,FC,ST Connector patch cord ,pigtail ,SFP transceiver module and other fiber optic components .

Datolink brand, OEM/OEM fiber optic patch cable manufacturer, factory in Shenzhen, China,more information ,please don't hesitate to contact us!

Prod Model:	DTL-CSCAS2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insert Loss:	<0.20dB
Boot:	0.9mm,2.0mm,3.0mm
Feature:	Singlemode or Multimode
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	APC
Connector Type:	Sc/APC
