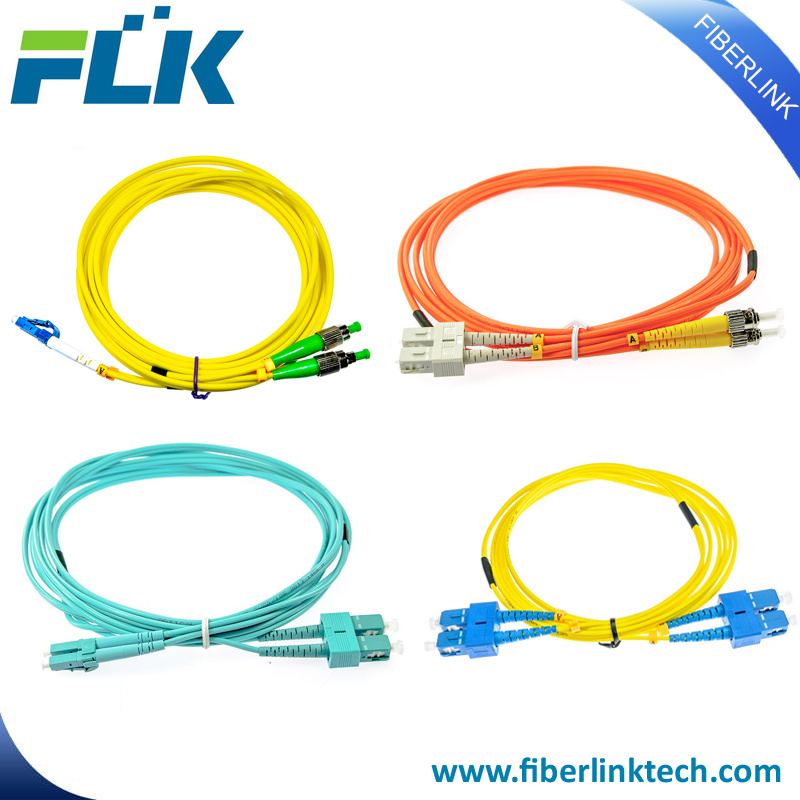

Sc/LC/FC/St/Mu/MTRJ/E2000 PC/Upc/APC Singlemode/Multimode Simplex/Duplex Jumper Fiber Optic Patch Cord
| Price: |
US $ 1-2.5/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
fiber optic patch cord |
| Fiber Mode: |
Singlemode Mulitmode |
| Insert. Loss: |
0.25dB Max. (0.10dB Typ.) for Singlemode |
| Connector Type: |
Sc, FC, St, LC, Mu, MTRJ, E2000, MPO etc |
| Polishing Type: |
PC, Upc or APC |
| Cable Type: |
Simplex, Duplex Zip-Cord, or Multi-Cores |
| Cable Diameter: |
0.9mm, 1.6mm, 2.0mm, 2.4mm, 2.8mm, 3.0m |
| Outer Jacket: |
PVC or LSZH |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Sheath Material: |
LSZH |
Product Description
SC/LC/FC/ST/MU/MTRJ/E2000 PC/UPC/APC Singlemode Multimode Simplex Duplex Fiber Optic Patch Cord
Fiber Optic Patch Cords are used for Telecom networks and also used for high speed metropolitan and access network. Our single mode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA and Telecordia standards.
Compliance
Telcordia GR-326-CORE Generic requirements for Single mode optical connectors and Jumper assemblies. IEC 874-1 Generic specification for fiber optic connectors and cables
ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0 Cable flame resistant rate: OFNR or IEC60332-3 standard
Connector specifications | Item | | | Single mode | | | | Multimode | |
| | PC | | UPC | | APC | OM1 | | OM2 | | OM3 or OM4 |
| Insert. Loss | 0.25dB Max. (0.10dB typ.) | | 0.3dB Max. (0.15dB typ.) |
| Return Loss | ≥ 45 dB | | ≥ 50 dB | | ≥ 60 dB | | | N.A | |
| Connector Type | | | | SC, FC, ST, LC, MU, MTRJ, E2000, MPO etc | |
| Ferrule | | Zirconia Ferrule (Zro2) | | | | Zirconia Ferrule (Zro2) |
| Polishing Type | | | PC, UPC or APC | | | | PC or UPC | |
| Durability | | | 500 cycles(0.2 dB max increase), 1000mate/demate cycles | |
| | | | | | | | | | | |
| Pull strength | ≥98N | | ≥98N | | ≥98N | | | ≥98N | |
| | | | | | | | | | | |
Cable Specifications | Fiber Mode | Single mode | Multimode |
| | G652D, G657A1/A2, G657B3 | OM1, OM2, OM3 or OM4 |
| Cable Type | Simplex, Duplex Zip-cord, or Multi-cores |
| Tight-buffered Fiber Diameter | 0.9mm | |
| Tight-buffered Fiber Coating | PVC or LSZH |
| Strength Member | Aramid Yarn |
| Cable Diameter | 0.9mm, 1.6mm, 2.0mm, 2.4mm, 2.8mm, 3.0mm |
| Outer Jacket | PVC or LSZH |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Pink |
| Operating Temp. | -20 ˚C to +70˚C/+85˚c (armored) |
| Storage Temp. | -40 ˚C to +85˚C |
| Humidity (FOTP-5) | 90-95% at 40°C |
| Strength of Coupling Mechanism (FOTP-185) | 33 N at 0° for 5 sec |
| Cable Retention (FOTP-6) | 50 N at 0° for 5 sec. |
| Twist (FOTP-36) | 15 N at 0° 5 turns, 10 cycles |
| Flex (FOTP-1) | 0.5 Kg at 25 cm, +90° to -90°, 100 cycles |
Fiber Specifications | Fiber Type | | Max. Attenuation | | | Min. Overfill Launch | Min. Gigabit Ethernet Link | |
| | | (dB/km) | | | | Bandwidth | | Distance (m) | | |
| | | | | | | (Mhz•km) | | | | | |
| | | | | | | | Gigabit | 10Gigabit | |
| | | 850nm | 1300nm | 1310nm | 1550nm | 850nm | | 1300nm | 850nm | 1300nm | 850nm | |
| | | 1 |
| OM1 62.5/125μm | ≤2.7 | ≤0.6 | - | - | ≥200 | ≥600 | 275 | 550 | - |
| OM2 50/125μm | ≤2.5 | ≤0.7 | - | - | ≥500 | ≥500 | 550 | 550 | - |
| OM3 50/125μm | ≤2.3 | ≤0.6 | - | - | ≥1500 | ≥500 | 1000 | 600 | 300 |
| OM4 50/125μm | ≤2.3 | ≤0.6 | - | - | ≥3500 | ≥500 | 1000 | 600 | 550 |
| OS1 9/125μm | - | - | ≤0.34 | ≤0.20 | - | - | - | - | - |
| OS2 9/125μm | - | - | ≤0.34 | ≤0.24 | - | - | - | - | - |

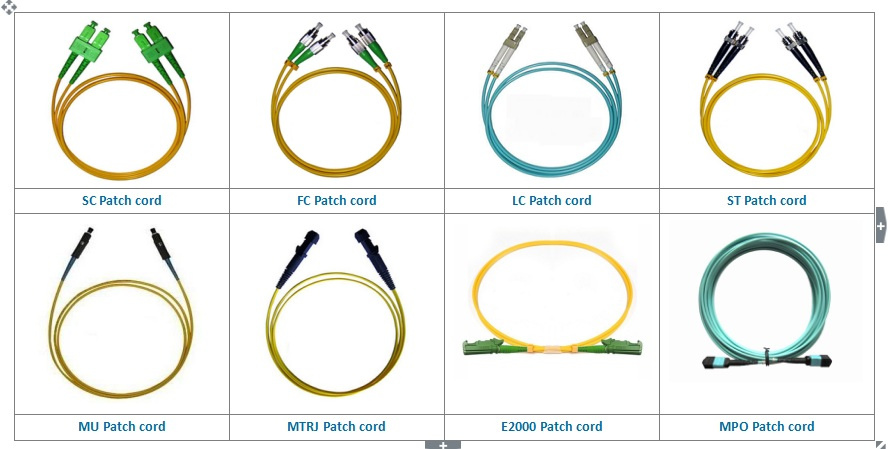

Patch cord pictures
Related products

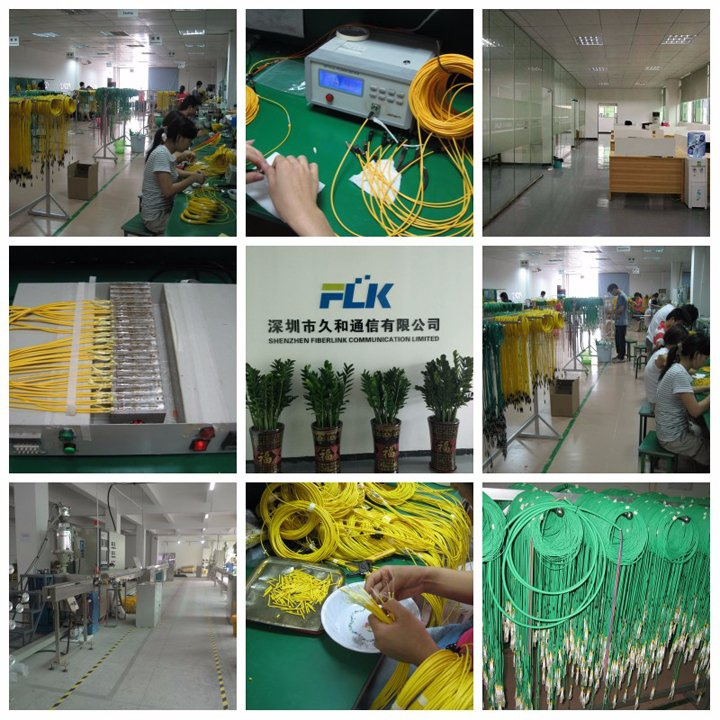

Our fiber patch cord production line:

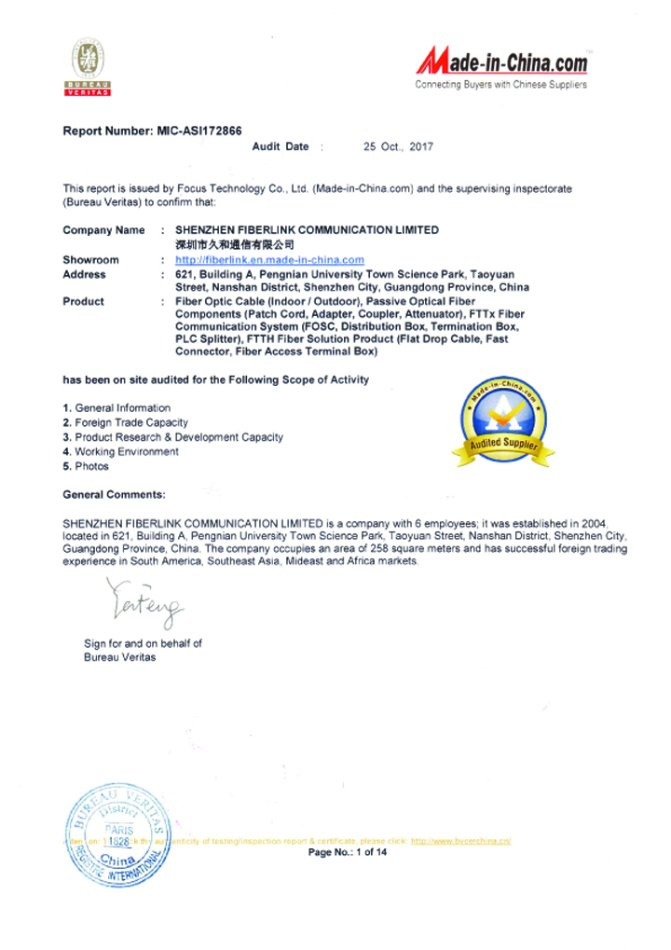

Certifications
