Fiber Optic Connectors are an important component in a fiber optic network; they are used on
a fiber optic patch cord or pigtail with an adaptor to make connections. In order to achieve
accurate and precise connections of the fiber ends, very high quality ceramic components are
used. Fiber optic connectors made with precision and high quality ceramic components provide
a high reliability connection when used with the various adapters. We make sure that every
connector that leaves our production is tested and performs as per the international standards.

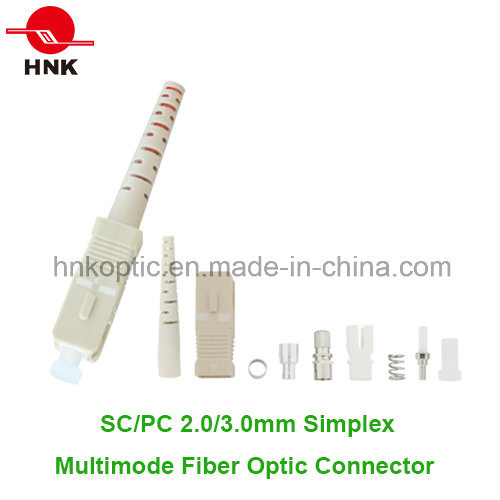

SC Fiber Optic Connector is a push pull type, gives an audible click when mates into its adaptor
and can be tuned in 4 positions to provide the lowest insertion loss. It comprises of a body with
ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve and rubber boot. These
connectors are suitable for, 900μm and 2-3mm cables. The connector is precision made to demanding
specifications. The combination of a ceramic ferrule with precision polymer housing pro-vides consistent
long-term mechanical and optical performance.
Standards Compliance
Complies with IEC 61754-4, IEC 60784-14 and TIA 604-3
RoHS, REACH SvHC compliant
Features
. High quality ceramic components and Material
. End-face geometry requirement complies to Telcordia GR-326-CORE
. 100% tested on optical performance (Insertion Loss & Return Loss)
. Simplex, duplex and higher core densities
. 900 micron, 2mm, 3mm cable applications
Specifications
| Ferrule Diameter | 2.5mm |
| Coupling Type | Snap, Push Pull type |
| Shell Color | Blue (SM/PC), Green(SM/APC), Beige (MM) |
| 2mm or 3mm Boot Color | Blue (SM/PC), Green(SM/APC), Beige (MM) |
| 900μm Boot Color | Blue (SM/PC), Green(SM/APC), Beige (MM) |
| Shell Connector versions available for | 2mm, 3mm Cable, 900μm Buffered Fiber, Simplex & Duplex |
| Shell Tensile Strength Cable retention | >50N for 2mm boot versions |
| >98N for 3mm & 0.9mm |
Design & Materials
| Connector Ferrule | Ceramic |
| Alignment Sleeve | Ceramic |
| Connector Body | UL 94V-0 rated Thermoplastic
to meet standard ammability ratings |
| Crimp Insert/Crimp Tube | Nickel-Plated Brass/Thermoplastic
Elastomer Polymer |
| Dust Cap | Nylon or PVC |
| Strain Relief Boot | Flame retardant (UL-Rated 94-V0) polymer |
| Connector Style | SC, FC, ST, LC, MTRJ, |
| Polish | PC, UPC, APC |
| Capillary Diameter Tolerance | 126 ± 0.5μm(Single Mode), 127 ± 0.5μm (Multimode) |
| Ferrule Diameter | 2.5 ± 0.001mm(FC,SC,ST),
1.25± 0.001mm (LC) |
Environmental & Mechanical Data
| Operating Temperature | -40 to +85º C |
| Storage Temperature | -40 to +85º C |
| Temperature Cycling (61300-2-18) | -40 to +75º C, 40 cycles=0.2dB change |
| High Temperature (61300-2-18) | 70c for 96Hrs, <0.4dB change |
| Damp Heat(61300-2-19) | 40º C at 93%RH for 96 Hrs, <0.4dB change |
| Vibration-Mated Pair (61300-2-1) | 10-55Hz, 1.5mm P to P <0.2dB change |
| Mating Durability (61300-2-2) | 500 Mating Cycles, clean every 25, <0.2dB change |
Optical Performance Data
| Item | Single mode | Multimode |
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G |
Insert Loss/connector
(single Fiber) | 0.3dB Max. (0.2dB typ.) | 0.3dB Max. (0.2dB typ.) |
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | PC≥35dB |
| Insert Loss/MTRJ Connector | 0.5dB Max. (0.45dB typ.) | 0.5dB Max. (0.45dB typ.) |
| Pull Strength | ≥98N | ≥98N |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number: SCN-AA-BB-CD
Ordering Guide
| AA | BB | C | D |
| Connector Type | Connector Boots
diameter | Fiber count | Mode |
| FP,SP,SA,LP | 20=2.0mm
30=3.0mm
09=0.9mm | SX=Simplex
DX=Duplex | SM=Singlemode PC
MM=Multimode PC
APC=Singlemode APC |
Connector Type Code
| FP | FC/PC, FC/UPC | FA | FC/APC | MU | MU |
| SP | SC/PC, SC/UPC | SA | SC/APC | MT | MTRJ |
| TP | ST/PC, ST/UPC | TA | ST/APC | DN | DIN |
| LP | LC/PC, LC/UPC | LA | LC/APC | E2 | E2000 |
Ordering Sample
| Part Number | Description |
| SCN-SP09SXSM | SC/PC 0.9mm Simplex Singlemode Fiber Optic Connector. |
| SCN-SA30SXSM | SC/APC 3.0mm Simplex Singlemode Fiber Optic Connector. |
