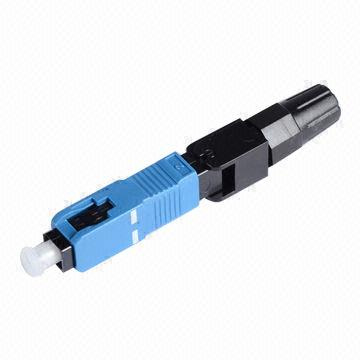

SC/PC Fast Fiber Optic Connector

Name: SC/PC Fast Fiber Optic Connector
Brand: all-electronics-online.com
SKU: 741194785
Availability: InStock
Rating: 5 (44 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ST-FSC-FO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Structure:	Sc
OEM:	Acceptable
Type:	Fiber Optic Connectors
Condition:	New
Application:	Communication

Product Description

We are one of the best quality fiber optic solution products manufactory in China, we have ability to provide the product with the superior quality,reasonable and competitive price.

Customer Branded/Unbranded Fiber Optic Adapter

(FC, ST, SC, LC, MT-TJ, MU)

Specifications
1.Easy to assemble
2.Without further processing
3.Excellent stability
4.100% qualified
5.Applicable for 3.1 x 2.0mm drop cable or 3.0/2.0/0.9mm cable

Parameter
1.Optical fiber diameter: φ 125um (657A and 657B)
2.Tight buffer diameter: φ 250um
3.Fiber mode: Single mode
4.Operation time: About 10s (exclude fiber cut)
5.Insert loss: ≤ 0.3dB (1, 310 and 1, 550nm)
6.Return loss: ≤ -40dB
7.Fastening strength of naked fiber: >5N
8.Tight clamping force cladding: >8N
9.Tensile strength: >50N
10.Used temperature: -45° To +80° C

Features
1.Easy assembly, no need special assembling tool
2.Without further processing, such as polishing
3.Excellent stability with low insertion loss, 100% qualified
4.Can reduce the defect rate because of being able to reconnect

Parameter	Unit	LC, SC, FC, ST, SC-ST, FC-ST, FC-SC, FC-LC				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	PC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥30	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	>1000				>1000			>1000
Operating Temperature	°C	-40~75				-40~75			-40~75
Storage Temperature	°C	-45~85				-45~85			-45~85

Marketing Under "Solitone" Brand

Shenzhen Leo Network Technology has 14 years of experience in supplying network communication products for various applications such as copper network cabling, fiber-optic, network cabinet, security cables and mini LAN SOHO systems to clients in the Americas, the Middle East, Africa, Asia, Western Europe and Australasia. Our products are well marketed under the brand "Solitone".

Daily Output of 560, 000 Meters

By utilizing 10 production lines and supported by 250 to 300 workers in our 16, 000sqm factory, we can turn out 560, 000 meters daily. To guarantee quality, we have nine to 14 QC auditors with an average experience of 13 years. They perform piece-by-piece inspections at each production level before delivery. We have an R&D team composed of five to nine engineers with an average experience of 10 years. They can produce customized items. To keep your option fresh, we release three to five new models per month.

Get a Reply within 24 Hours

Over 20 customers have been cooperating with us for over 10 years. Because we are highly committed to providing high quality, 95% of our customers place repeat orders with us. We are willing to support all developing companies, small or medium.

E-mail us today to know more. We will reply within one working day.
