| Prod Model: |
SC |
| Multi-Mode Fiber: |
50/125um, 62.5/125um |
| Cable Diameter Szie: |
0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm |
| Color: |
Green, Blue, Beige,Yellow,Orange, Black, White |
| Connector Material: |
Plastic, Metal |
| Single-Mode Fiber: |
9/125um |
| Cable Color: |
Green, Blue, Beige,Yellow,Orange, Black, White |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Type: |
Single-Mode to Multi-Mode |
| Connection Structure: |
Sc, LC, FC, St |
| Brand: |
Koc |
Product Description
Introduction
KOC has established a production base of patch cords in 2005 therefore besides various connectors and corresponding adapters we can make jumpers as requested based on different cables Our product comes in many types such as simplex duplex multi-core bunchy and ribbon type Up to now ,we own about several years of production experience and we provide patch leads with ligh quality and at a reasonable price for ovre 300 enterprises at home and abroad.
Patch Cord Production Conventional Process Flow Diagram:
Order Confirmation →Cleaving Cable →Passing Through Components And Parts →Striping Cable And Striping Fiber →Epoxy Defoaming →Checking Fiber And Cleaning →Polishing →Inserting Fiber And Curing →End Face Initial Inspection →Optical Indexes Testing →End Face Inspection →Assembling and Crimping →Machine Grinding →Cleaving Fiber And Manual Grinding → NG →Tensile Test →Analysis →Analysis →Appearance Inspection →Packing
Brief Introduction

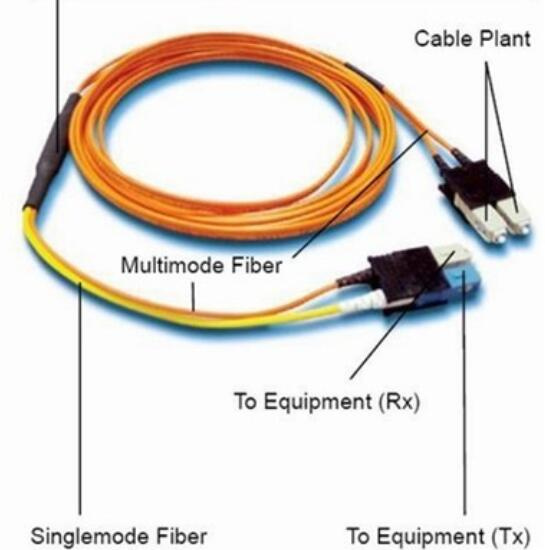

Mode Conditioning patch cord (also called Gigabit Launch cables) are designed for Gigabit Ethernet 1000Base-LX network and other applications where both dingle-mode and multi-mode interconnects needed. As Gigabit-LX can use both single-mode and multi-mode cables, when a Gigabit-LX transceiver is operated with single-mode cable and directly coupled to Multi-mode cables, an effect known as Differential Mode Delay(DMD) might occur. DMD limit the cable distance lengths for operating Gigabit Ethernet. Mode conditioning cable can enable a single-mode signal to be correctly send through a multimode network...
FEATURES
Eliminates issues related to Differential Mode
Delay (DMD)
Compliant with IEEE 802.3z
Rugged Offset Closure with Consistent Offset
50um and 62.5um multi mode cable are available.
APPLICATIONS
Long Haul to Short Haul LX Gigibit System
Recommended for multi mode cable runs
Gigabit Ethernet 1000Base-LX (1300nm long wavelength)
SPECIFICATIONS
| ITEM | Parameter |
| Insertion Loss | Optical source direction | Test wavelength | Insertion Loss |
| MM→SM | 850nm,1300nm | ≤15.0dB(50/125um); ≤18.0dB(62.5/125um) |
| SM→MM | 850nm,1300nm | Max≤0.30dB |
| MM→SM | 1310nm,1550nm | ≤2.10dB(50/125um); ≤2.60dB(62.5/125um) |
| Return Loss | APC≥60.0Db;UPC≥50.0dB | ≥35.0dB |
| Durability | ≤0.20dB typical change,1000 mating |
| Tensile Strength | ≥120N(without 0.9mm patchcord) or customized |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -40ºC to +85ºC |
| Optical Specifications | Single Mode 9/125 | Multi-mode 50/125 | Multi-mode 62.5/125 |
| Insertion loss(Typical) | 0.3 dB | 0.2 dB | 0.2 dB |
| Insertion loss(Max) | 0.8 dB | 0.7 dB | 0.7 dB |
| TemperatureRange | -40ºC-85ºC | -40ºC-85ºC | -40ºC-85ºC |
| Mating Durability(500 cycles) | <0.2 dB | <0.2 dB | 0.2 |
| Buffer Diameter(um) | 250 | 250 | 250 |
| Attenuation, dB/km Max. | 3.3 | 1 | 0.5 |
| Numerical Aperture(NA) | 0.13 | 0.2 | 0.275 |
Fiber specifications
| | Single Mode 9/125 | Multi-mode 50/125 | Multi-mode 62.5/125 |
| Connector Type | FC, ST, SC, LC, MU | FC, ST, SC, LC, MU | FC, ST, SC, LC, MU |
| Wavelength (um) | 1310/1550 | 850/1310 | 850/1310 |
| Core Diameter (um) | 9 | 50 | 62.5 |
| Cladding Diameter (um) | 125 | 125 | 125 |
| Buffer Diameter (um) | 250 | 250 | 250 |
| Cable Diameter (um) | 2000/3000 | 2000/3000 | 2000/3000 |
Ordering Information
| SM Side | MM Side | | | |
| Connector | Fiber Type | Connector | Fiber Type | Cable Jacket | Cable Size | Length |
| FC | 9: 9/125 | _FC | 5: 50/125 | _L: LSZH | 18: 1.8mm | _ |
| SC | | _SC | 6: 62.5/125 | _P: PVC | 20: 2.0mm | |
| ST | | _ST | | | 30: 3.0mm | |
| MTRJ | | _MTRJ | | | | |
| LC | | _LC | | | | |
| MU | | _MU | | | | |
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
About KOC
Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.
Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!
To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.
To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.
Please visit us website for more information: http://www.koc.com.cn
