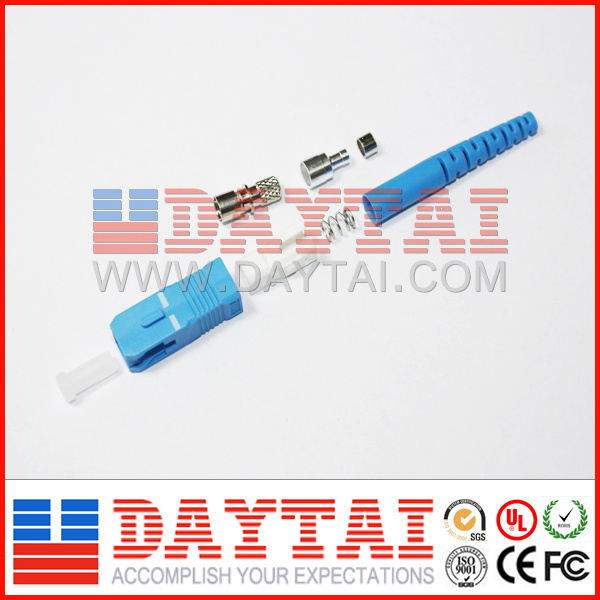

SC/PC Sm 3.0mm Fiber Optic Quick Assembly Connector
| Price: |
US $ 0.5-1.2/Piece |
| Trade Terms: |
FOB,CIF,DAP |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
1. DESCRIPTION
* Fiber optic assemble connector
* SC/PC-SM-3.0MM assemble connector
* Suitable for 3.0mm fiber optic cable pigtail or patch cord assemble
2. Technical Feature
* No special tools needed when installed;
* Can be made on-site without splicing connectors ;
* Only 30 seconds needed to learn the process of installation and making;
* Can be intalled and maked repeatedly thus avoiding loss
3.Part Number & Material
| Part Number | Material |
| SC Dust Cup | LDPE |
| SC Housing-24.7MM | PBT |
| SC 3.0 Plug Frame | PBT |
| SC SM Ferrule | CO |
| SC Flange-21.5MM | CU |
| SC Spring | SUS304 |
| SC Ring | SUS304 |
| SC 2.0 Crimp Eyelet | Aluminum 6061 |
| SC 2.0 Crimp Ring | H65 |
| SC 2.0 Boot | TPV (Blue) |
| Prod Model: |
DT-SC/PC-SM-3.0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connectortype: |
SC/PC |
| Fiber Type: |
Sm |
| Fiber Diameter: |
3.0mm |
| Suitable For: |
Pigtail or Patch Cord |
| Insertion Loss: |
0.3 |
| Return Loss: |
45 |
| Color: |
Blue and White |
| MOQ: |
100PCS |
| Type: |
Fiber Optic Connectors |
| Certification: |
CE, RoHS, ISO |
