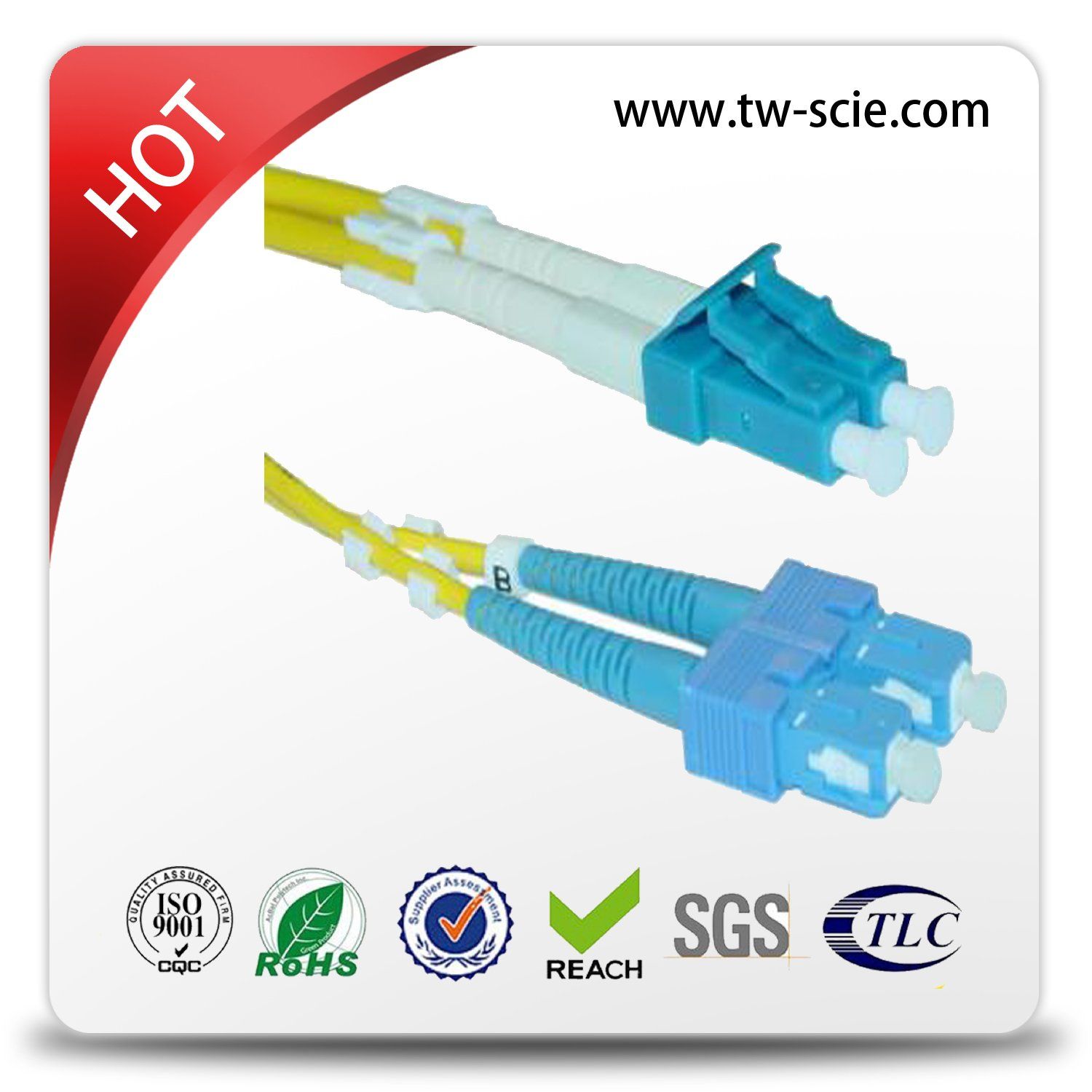

Sc Singlemode Multimode Simplex Duplex Fiber Optic Patch Cord
| Price: |
US $ 0.95/Piece |
| Min Order: |
5000/Piece |
| Pay Type: |
L/C,T/T,Western Union |
LC/SC/FC/ST/MU/MTRJ/E2000 PC/UPC/APC Singlemode Multimode Simplex Duplex Fiber Optic Patch Cord
Product Description
SC/UPC-ST/UPC -MM-DX-3.0MM Fiber optic patch cord
Product Description

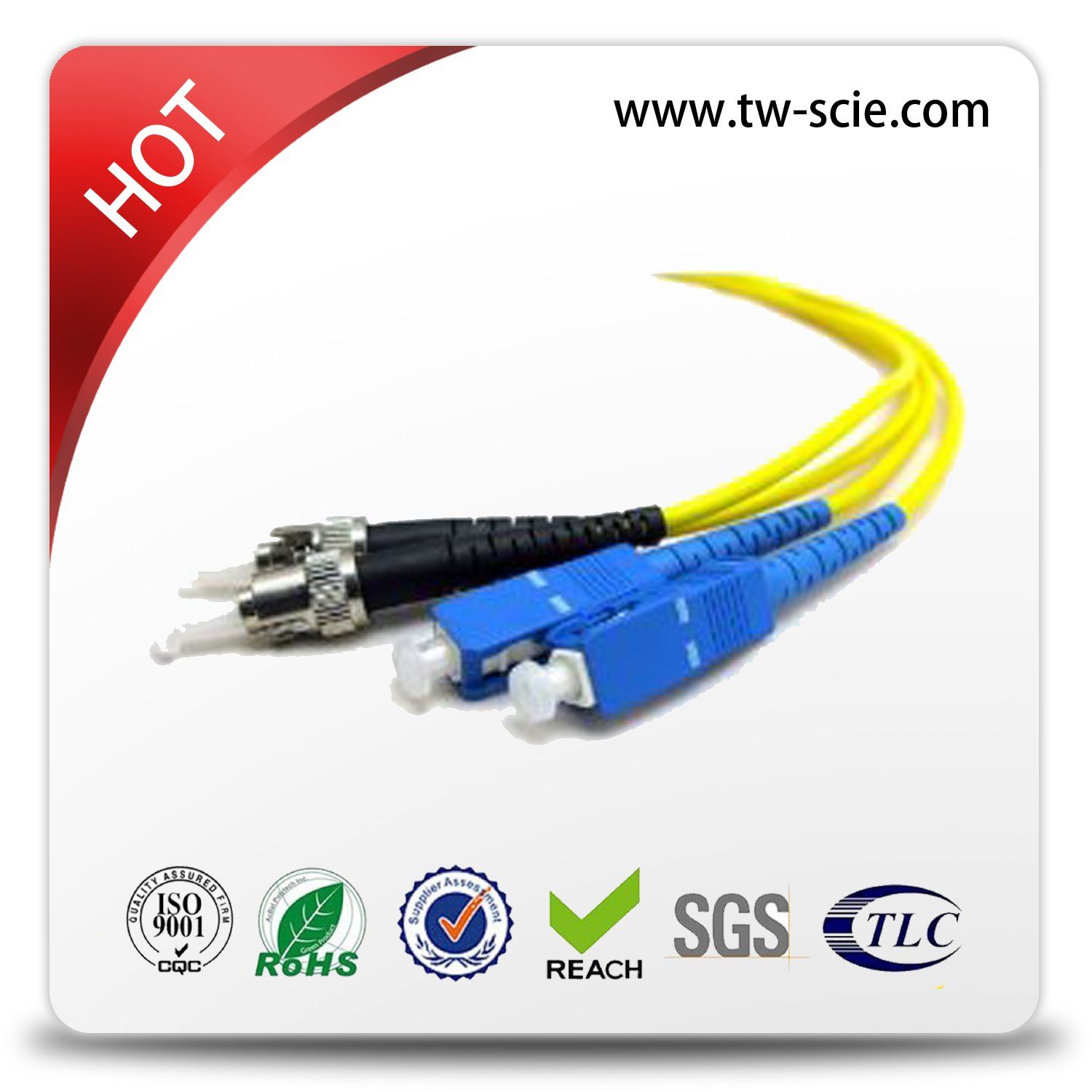

Multimode SC-ST fiber optic patch cord
Specification:
1.Type: SC-ST
2.Polishing: PC (APC/UPC)
3.Insertion Loss: ≤0.2 dB
4.Return Loss: ≥50dB
5.Exchangeability: ≤0.2Db
6.Repeatability: ≤0.2dB/1000times
7.Operation Wavelenghth: 850nm,1310nm,1550nm
8.Operating Temperature: -30 °C ~ +75 °C
9.Storage Temperature: -40 °C ~ +85 °C
10.Cable OD: 3.0mm/2.0mm/0.9mm
11.Cable Material: OFNR,LDZH&Polarization maintaining
12.Mode: 50/125
13.Fiber Cable Type: PVC 3.0mm
14.Spec: single core , dual - core , the 4 core , 6 cores , 12 core . . . etc(according to your requests)
15 . the joint selection : FC,SC,ST,LC,MU,MTRJ,E-2000 and other
16. length : The length of patch cord is depend on user's requirements
Feature:
1.Low insertion loss and hight return loss.
2.Excellent repeatability and changeability
3.Simplex and duplex available.
4.With ceramic fettules.
5.PVC&LSNH cable option.
6.Optical performance 100% factory test.
Applications:
Local Area Networks (LANs) and Wide Area Networks (WANs)
Fiber Optic CATV, FTTH, FTTB, FTTP etc
Fiber Optic telecommunication systems
Transmission Mode (ATM)
Fiber Optic Backbone
Military InstrumentationCompany Information
Company exhibition :
Products

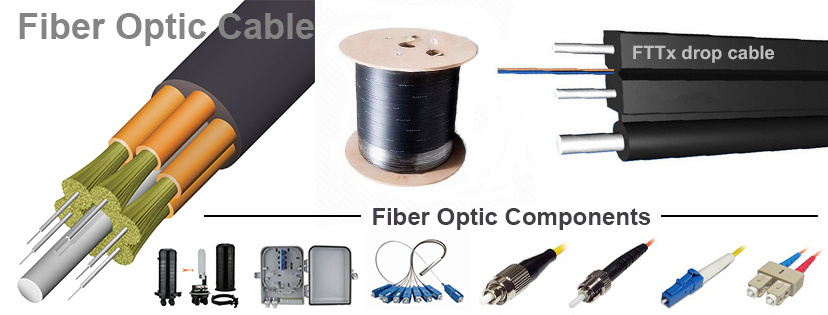

We focus on Fiber Optic System products as follows:
Fiber Optic Cables
Active & Passive Components
Passive components
Patch cords
Pigtails
Splitter
Termination boxes
Patch panel/ODF
Active equipment
Fiber converters
SFP/GEBIC transceivers
Receivers
Why you choose us ?
1.Factory, OEM/ODM available
2.Steady quantities supply, Strict quality control
3.Excellent Datolink or your own brand box/roller design and package
4.Stirictly conform to ISO, Rohs CE certificates
5.Long time experience at domestic and export market
Welcome you visit our factory !
Relying on good prestige, creditable quality, perfect service and reasonable price, our company win the confidence of customers. We sincerely welcome old and new customers home and abroad to visit our manufactory and bulid the long term business relationshiop with us !
FAQ :
1.Are you factory ?
Yes,we are factory ,our factory located in Dongguan, Guangdong .
2.What products your factory mainly produce ?
Our factory mainly produce Fiber Optic Cable, LC,SC,FC,ST Connector patch cord , pigtail , SFP transceiver module and other fiber optic components .
TW-SCIE brand, OEM/OEM fiber optic patch cable manufacturer, factory in Shenzhen, China | Specifications |
| | Single mode | Multimode |
| Insert Loss | ≤0.20dB | ≤0.25dB |
| Return Loss | ≥50 dB (PC) | |
| ≥55 dB (UPC) | |
| ≥65 dB (APC) | |
| Durability | <0.20 dB typical change, 1000 mating | |
| Operating Temperature | From -40 to + 80°C | From -40 to + 80°C |
| Ferrule Hole Sizes | 125.0+1/-0μm, Concentricity: ≤1.0μm | 125μm, Concentricity: 1≤3μm |
| | 125.5+1/-0μm, Concentricity: ≤1.0μm | 127μm, Concentricity: 1≤3μm |
| | 126.0+1/-0μm, Concentricity: ≤1.0μm | 128μm, Concentricity: 1≤3μm |
| Prod Model: |
SC-SC Fiber Patch Cord |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Type: |
Indoor Cable |
| Connection Structure: |
LC/Sc/FC/St/Mu/MTRJ |
| Core: |
1 Core or 2 Core |
| Sheath Material: |
PVC or LSZH |
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
