Sc to Sc Single Mode G652D Fiber Duplex Fo Patch Cord LSZH
| Price: |
US $ 1.4-1.5/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union,Paypal |

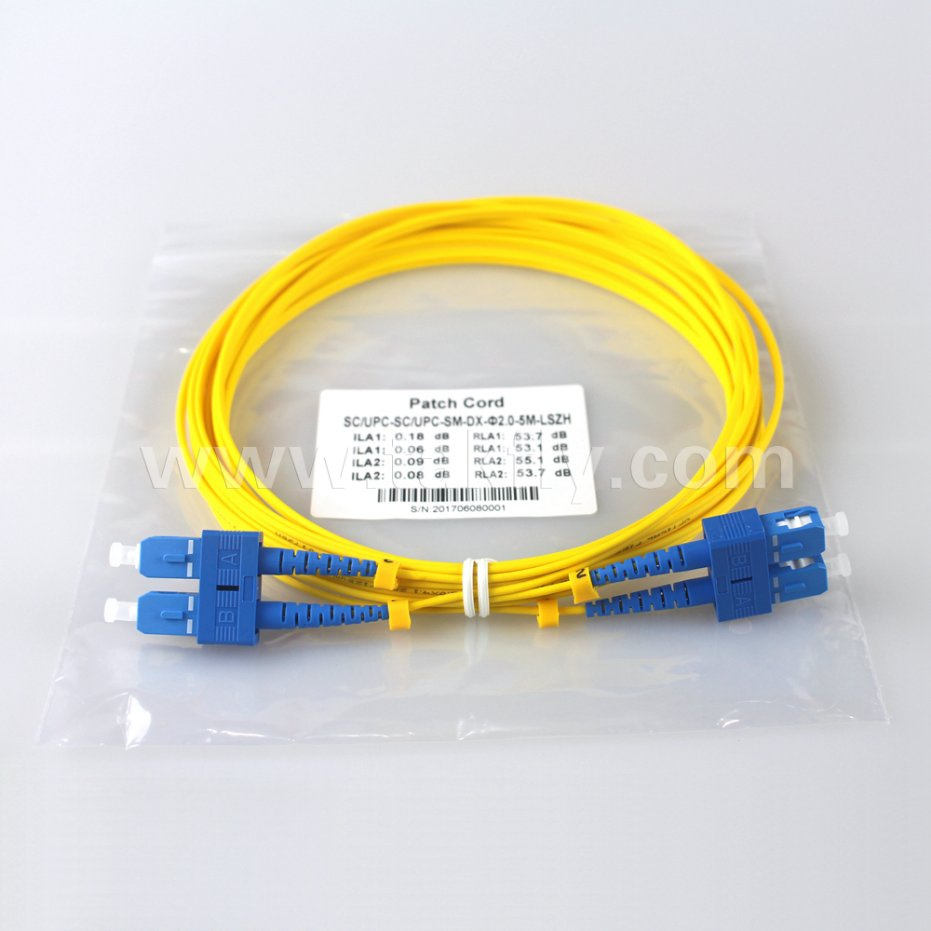

UPC type SC to SC Single Mode G652D fiber Duplex FO patch cord LSZH
1.Product DescriptionFiber Optic Patch cords are mainly applied in optics communications field, such as FTTH, FTTX, LAN, WAN, network, broadband, etc. As the basic equipment of optic communication, fiber optic patch cord are in great demand in the market, especially in developed countries. With the expansion of FTTH, the use of patch cords will be in an increasing trend. Patch cord, just like a connector, link one equipment to the other one. According to the type of connector, patch cord can be divided into FC, ST, SC, LC, or hybrid connector patch cord.
Takfly's SC/UPC-SC/UPC SM G652D DUAL Fiber Optic Patch cords have passed ISO9001: 2008, RoHS, CE, etc. verifications. The quality is compatible with high standard. No complaints is one of our aims. Takfly is worth your trust. And we hope that our products can help you win good reputation and market share.
2.Features1.Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard.
2.Connector type standard: IEC61574 series
3.Low Insertion Loss : IEC 61300-3-4, IL≤0.20dBHigh
4.Return Loss: IEC61300-3-6; RL≥60dB
5.Flammability:IEC60332-1Repeat Plug feature is good, good interchangeability
6.Ceramic Ferrule, high-density docking, concentricity ≤0.5Can provide general PVC or LSZH cable cable3.Parameter | Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB |
| Operating Temperature | -40ºC~+75ºC |
| Storage Temperature | -40ºC~+75ºC |

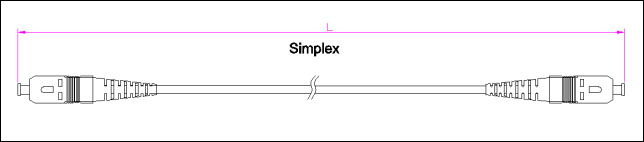

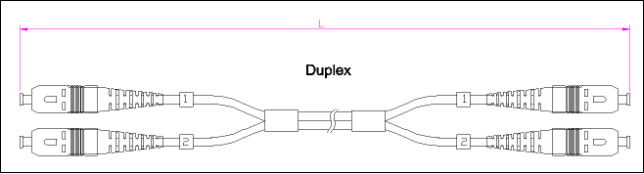

4.Order Information | CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
| H02 | 1.SM Simplex
2.MM Simplex
3.APC Simplex
4.SM Duplex
5.MM Duplex
6.APC Duplex | 1. 0.9
2. 2.0
3. 3.0
| 1.9/125
2.OM3
3.50/125
4.62.5/125 | 1.Yellow PVC
2.Orange PVC
3.White PVC
4.Yellow LSZH
5.Orange LSZH
6.White LSZH | 1.Blue
2.Beige
3. Green
4.Black
5.Blue and Yellow
6.Red and Black
|
5.Fiber cable performance specifications | Fiber type | Min. Bandwidth | Distance | Attenuation |
| 62.5/125 | 850/1300nm
200/500 MHz/Km | @100Mbps 2km @1Gig 220m | 850/1300nm
3.0/1.0dB/km |
| 50/125 | 850/1300nm
500/500 MHz/Km | @100Mbps 2km @1Gig 500m | 850/1300nm
3.0/1.0dB/km |
50/125
10Gig Optimized | 850/1300nm
2000/500 MHz/Km | @100Gig Varies by VCSEL typical 300m 2850nm | 850/1300nm
3.0/1.0dB/km |
| Fiber type | Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A,,G657A2 |
Multimode:
(4)50/125-OM2
(5)62.5/125-OM1
(6)50/125-OM3
(7)OM4 |
| Fiber | YOFC, CORNING, OFS |
| Connector1 | FC,LC,SC,ST.MU, MTRJ, E2000 SMA |
| Polishing | UPC,APC |
| Connector2 | FC,LC,SC,ST.MU, MTRJ, E2000 SMA |
| Polishing | UPC,APC |
| Cord type | Simplex ,Duplex |
| Cable diameter | 0.9mm ,2.0mm, 3.0mm |
| Cable jacket | PVC,LSZH, OFNR, OFNP |
| length(M) | 0.3m,1m,2m,5m,10m,25m,50m,100m (custom) |
Here I'm willing to show you more information regarding our fiber optic patch cord.
1.All materials we use for fiber optic patch cord are environmental and imported from foreign country. At this stage, they had got CE, RoHS, FCC, Reach and EN50575 approved;
2.Low insert loss, the min insert loss of simple mode can reach to 1dB and Muti-mode can reach to 0.15dB;
3.High return loss, the max return loss is much more than 55dB and Muti-mode is much more than 35dB;
4.Good repetition, Additional Loss≤0.1dB and Reture Loss Variability<5dB;
5.Temperature Stability(-45ºC~85ºC);
6.Durability>1000 times;
7.Assemble with tricyclic ceramic ferrule;
8.All item are 100% inspected before shipment;6.Application1.Telecommunications;
2.CATV;
3.LAN, MAN, WAN;
4.Test &Measurement;
5.Military industry;
6.Medical;

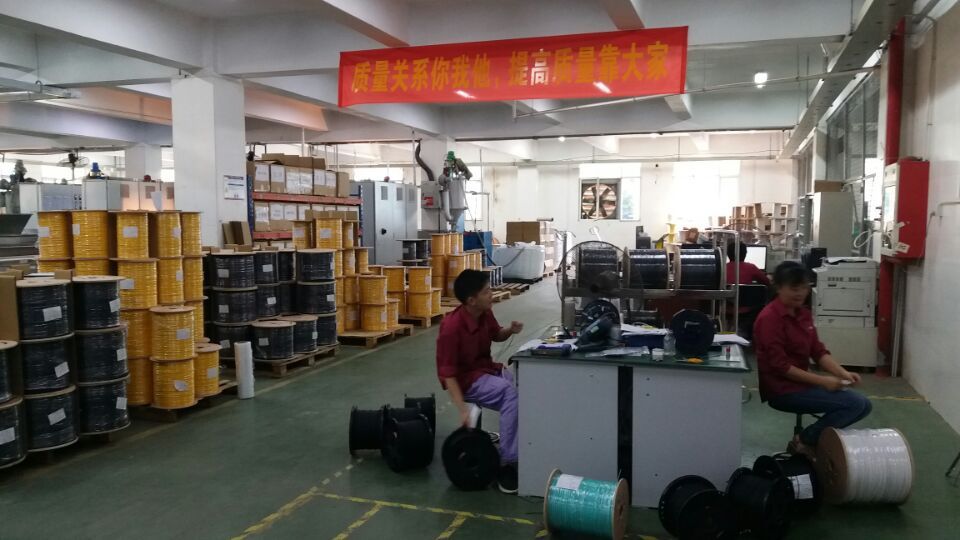

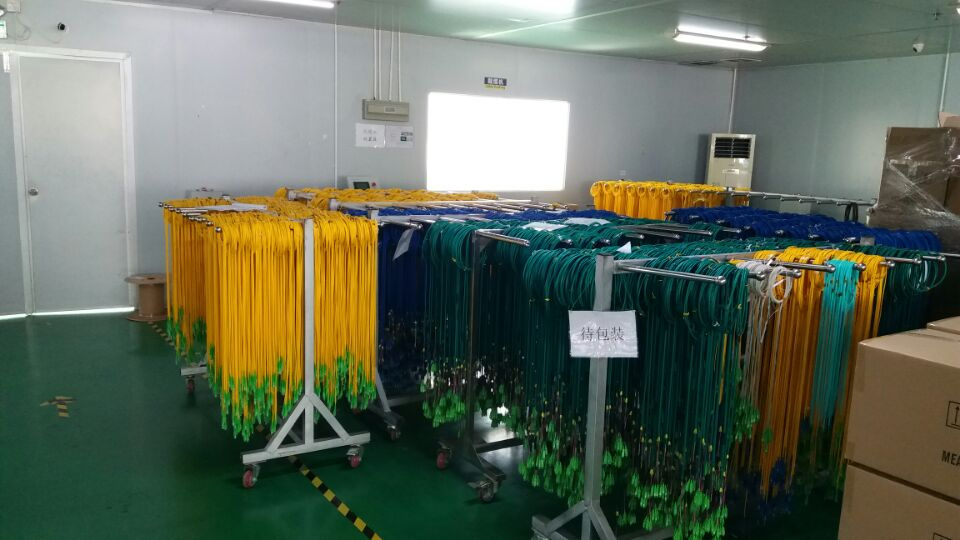

7.Item and Company images
8.Company informationTakfly, established in 2000, has been manufacturing and exporting fiber cable, adapter, attenuator, connector, coupler, splitter, termination box, ODF, fiber instruments, media conceiver, switch, optical module, CWDM/DWDM, etc. Takfly's products have passed the management verification: ISO14001: 2004. and goods have passed RoHS, CE, FCC, REACH, EN50575, ISO9001, etc.
So far, Our products have been widely installed in many big worldwide project and work perfectly. Many project contactors ask the first and second operators to purchase fiber items from Takfly for their new project. In addition, we also have builted long term cooperation with Lapp, Amper, Telefonica, orange and Ericsson. All enquiry are warmly welcomed here no matter it's small or big, we promise to provide all customers high quality and good price item.9.Why choose Takfly?Service
1.Customer's logo: Acceptable;
2.General inspection on fixing before packing;
3.Third party inspection: Acceptable;
Quality Control
All products must go through five checks before manufacturing process;
1.Material incoming inspection before production;
2.Full check after every individual process finished;
3.Full check after production half-done;
4.Full check before packing;
5.Spots check after production packed before shipping;
Advantage
1.15 years experience in manufacturing fiber optic products;
2.Availability of R & D with more than 10 engineers;
3.Available of design and making mold with special molding house;
4.High quality, attractive price and fast delivery(2-7days);
5.OEM, ODM customer designs are also welcomed;
6.More than 200 workers;
7.Excellent service;
Delivery
1.Packing: Plastic bag& carton, Neutral packing or as your required;
2.Sample time: 1-3 days after confirm;
3.Order lead time: 2-7working days depend on quantity and products;
4.Shipping port: Shenzhen China or HK;
5.Shipping term: EXW or FOB;
Shipping
1.Once confirmed the order, and payment sent after finishing goods;
2.Goods will be sent within 7 days with the fast, reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc;
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility;
4.Please do not bid if you disagree with the shipping and handling charge;
Pls kindly note we not only wanna to seek an opportunity to work with you, but also regard you as our friend. All inquiries from your side will be warmly welcomed here. You can call at 0086 13537892205 to reach me.
| Prod Model: |
DF-PTCD-003 |
| Item Name: |
Sc to Sc Sm G652D Fiber Duplex Fo Patch Cord |
| Fiber Type: |
Sm G652D, G657A1,G657A2,Om1,Om2,Om3 and Om4 |
| Connector Type: |
Sc/Upc-Sc/Upc, Different Types Are Available |
| Cable Color: |
Yellow, Orange, Aqua |
| Fiber Quantity: |
2 |
| Cable Diameter: |
0.9mm,2.0mm and 3.0mm |
| Cable Jacket: |
LSZH |
| Lead Time: |
2-4 Workdays |
| Certifications: |
Ce,RoHS and FCC Approvals |
| Warranty: |
10 Years |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
FCC |
| Connection Structure: |
Sc/Upc-Sc/Upc |
| Brand: |
Takfly |
| Sheath Material: |
LSZH |
