| Output Voltage: |
64V |
| Color: |
Black |
| HS Code: |
8504409990 |
| Type: |
Lead-Acid Battery Charger |
| Charging Type: |
Electric Charger |
| Principle: |
Standard Battery |
Product Description

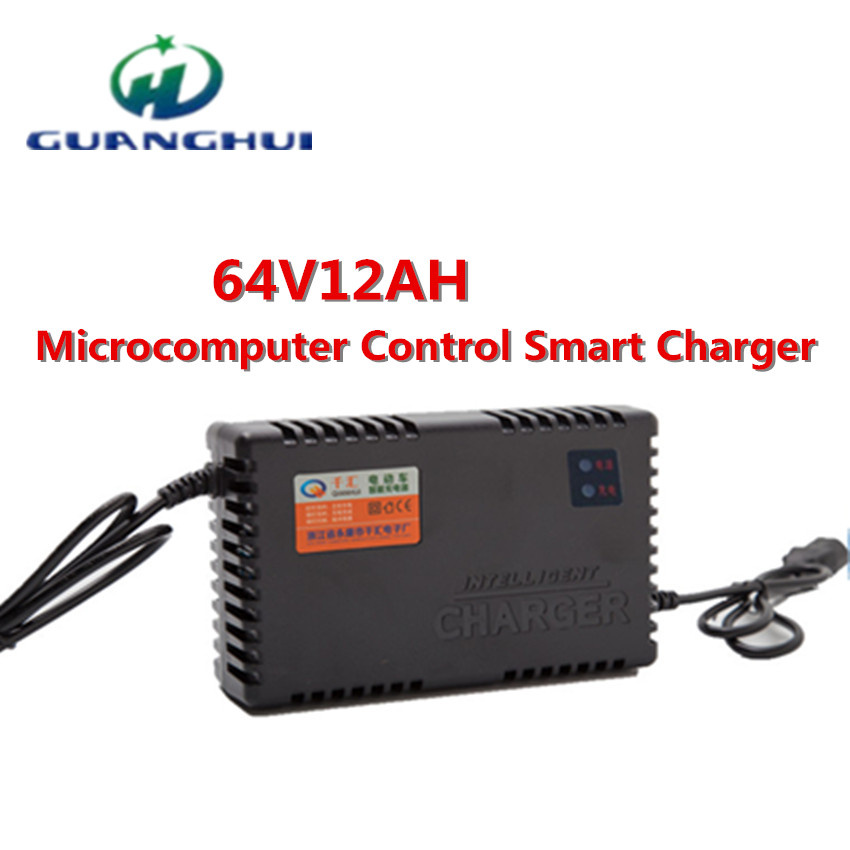

64V12AH microcomputer control smart lead acid battery charger used for electric bike and motor bike.Technical Parameters| Ebike charger 64V12AH | |
| Model | QH168-6412 |
| Input Voltage | 100V-240V |
| Output Voltage | 64V |
| Rated Frequency | 50-60HZ |
| Charger Current | 1.8A |
| Applicable batteries | 64V12AH |
| Charger Mode | Three-steps |
| Full load efficiency | >=91% |
| Dimensions | 175*105*56mm |
| N.W | 0.6kg |
| Packed Qty/carton | 60PCS |
Product Features:1 high frequency switching power supplies and microcomputer (MCU) control technology
2 full microcomputer constant current control, automatic segmentation and forced down stream, control
System battery temperature, both to ensure 100% full power again to extend battery life
3 microcomputer control battery repair operation and balanced operation.
4 automatically detects battery voltage and prevent rechargeable, multi-channel timing Paul
Protection, full protection of the battery and charger
5 overtemperature protection function: When the internal temperature is too high, the charger downflow work
As to ensure the safety of the charger and battery.
6 (Optional) Reverse Polarity Protection: reverse polarity battery pack, charging will not
Carried out effectively protect the charger and battery.
7 trickle + pulse to sulfur functions: long-term without the battery or cured with
Recovery sulfide scavenging capacity of the battery effect.
8 charging process, testing and operation through the microcomputer, reasonably
The introduction of a unique pulse technology, enabling the battery is more easily absorbed
Power to prevent sulfide battery, effectively extending the battery life.
9. Charging state:color LED display. (red charging, green fill or disconnect)
One year warranty

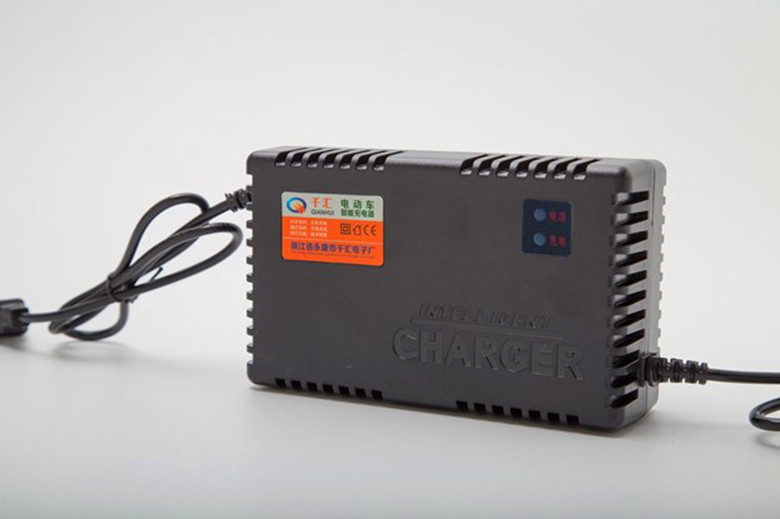

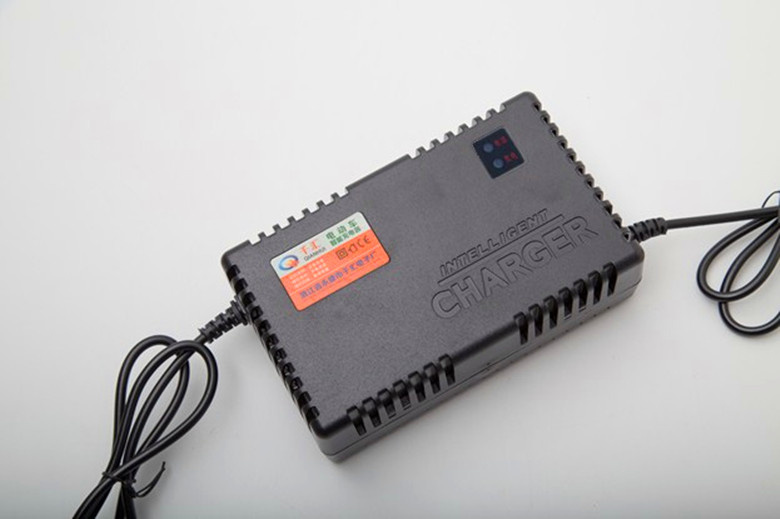

Product Display: 1. The shell is made of high temperature, wear-resistant, impact resistant ABS+PC composite material. It can effectively improve the heat dissipation and ensure that the temperature of the power supply is not excessive

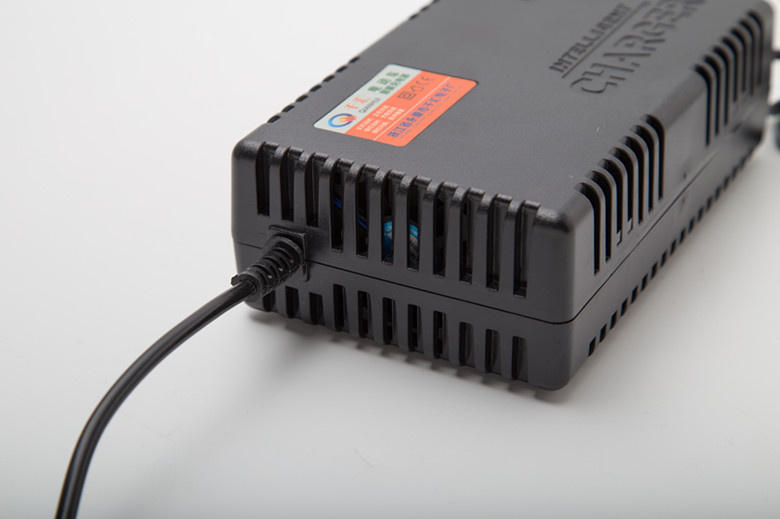

2. Smart cooling hole with fan design
That can effectively improve the heat dissipation of the power source, so that the charger can be kept in the proper humidity and temperature, and effectively prolong the service life of the charger.
FAQs
1.May I take some samples to test before placing the order ?
Answer:Yes,but customers need to pay for the sample fees and express fees,and it will be returned when next order is confirmed.
2.What's the best price and MOQ?
Answer:Please just send me inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price and MOQ.
3.What's you delivery time?
Answer:It depends on your quantity, but usually, 7 days for sample order, 15-30days for batch order.
4.How about your payment and shipment?
Answer:Payment:We accept T/T, Western Union, Paypal etc.Terms of payment.
Shipment:For sample order, we use DHL, TNT, FedEx, EMS etc.Express;For batch order, by sea or by air.
5.How about your warranty?
Answer:We provide 1 years warranty for different products and whole life technical support.
6.Do you have you own factory?
Answer:Yes, we are professional manufacturer mainly in battery charger and controller for about 12 years.Our factory is located in Yongkang, Zhejiang, China.

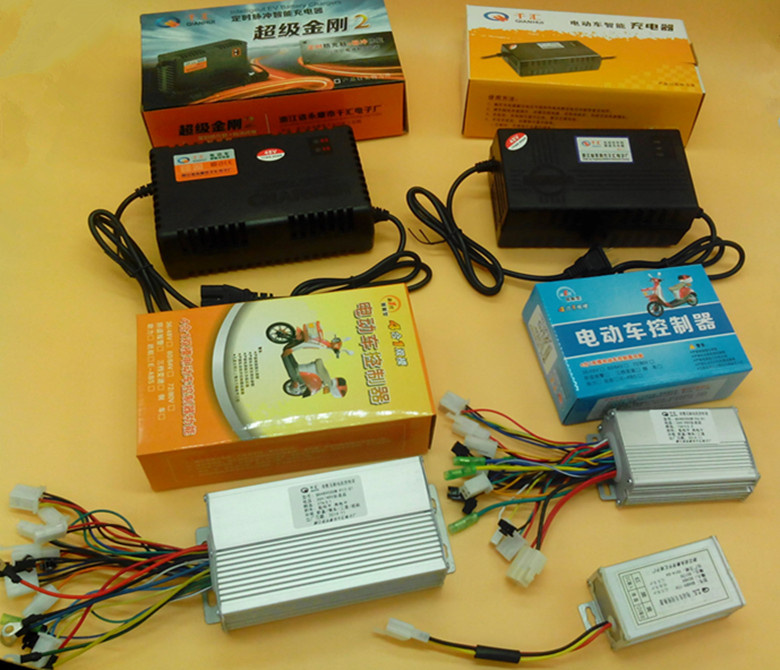

Our company supplies different kinds of battery charger and motor controller. We are professional manufacturer mainly in battery charger and controller for about 12 years. Our factory is located in Yongkang, Zhejiang, China.
We have High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
We can also customize this product according to your needs, We believe we will do better by cooperating with you in the future.
