Sdc15-12/24 Fully Insulated Compact Electric Switchgear

Sdc15-12/24 Fully Insulated Compact Electric Switchgear
Price: US $ 500-3000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Sdc15-12/24 Fully Insulated Compact Electric Switchgear
Technical Specification:
10kv technical specificationC moduleF moduleV moduleCB module
Load
break
switch
Switch
fuse
Vacuum
circuit
breaker
Isolate/
earthing switch
Vacuum
circuit
breaker
Isolate/
earthing
switch
Rated voltage121224242424
Power frequence
withstand voltage KV
42/4842/4842/4842/4842/4842/48
Impulse withstand voltage KV75/8575/8575/8575/8575/8575/85
Rated current A630125630/1250630/1250
Closed loop A630
Off load cable charging A10
Rated active load drop-oput current A630630
Earth fault breaking
 current A
30  25
When earth fault frop-out current of cable charging A17.4
Short circuit drop-out
 current KA
 31.525
Making capacity KA50note63636363
Short time current 4s KA20202520/2520/2520/25
Transfer current A 1750
Mechanical life times50005000100003000100003000
24kv technical specificationC moduleF moduleV moduleCB module
Load
break
switch
Switch
fuse
Vacuum
circuit
 breaker
Isolate/
earthing switch
Vacuum
circuit
breaker
Isolate/
earthing switch
Rated voltage242424242424
Power frequence
withstand voltage KV
65/7965/7965/7965/7965/7965/79
Impulse withstand
 voltage KV
125/145125/145125/145125/145125/145125/145
Rated current A630125630
Closed loop A630
Off load cable
charging A
10
Rated active load drop-oput current A31.5630
Earth fault breaking
 current A
63
When earth fault frop-out current of cable charging A43.3
Short circuit drop-out current KA 20 note 202025
Making capacity KA5050 note50506363
Short time current 4s KA20 20202525
Transfer current A 1400
Mechanical life times500050001000010000100005000

Product Description:

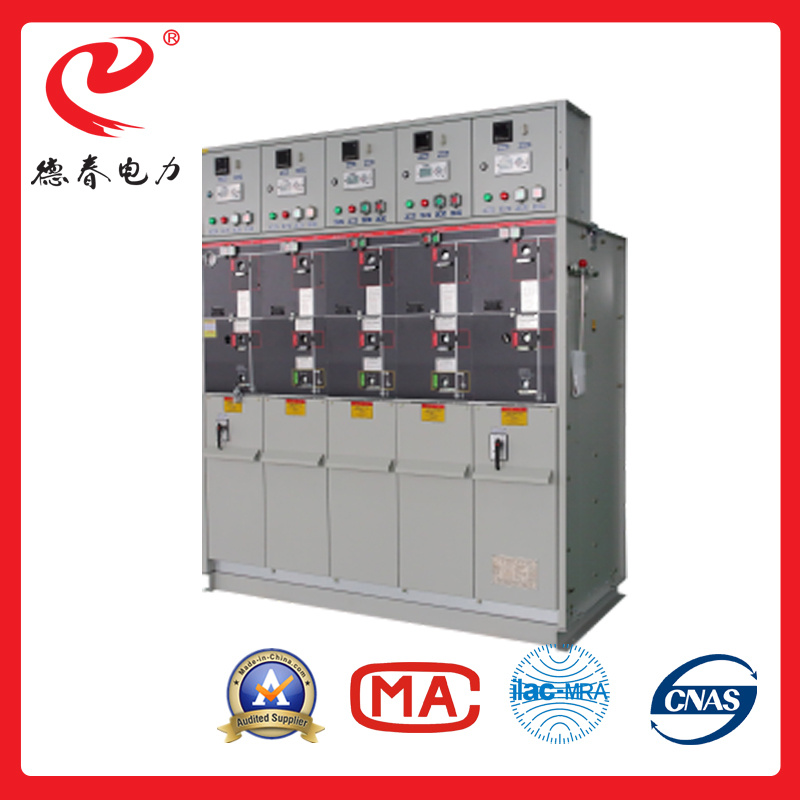

SDC15-12SDC type SF6 fully insulated compact switchgear assembles the functional units in SF6 closed stainless steel chamber without any live parts exposed. It has the advantages of full insulation, full sealing, compact structure and convenient installation and operation. It is suitable for indoor and outdoor Installation, from the external environment, with high resistance to harsh environmental performance.
SDC type SF6 fully insulated compact switchgear assembles the functional units in SF6 closed stainless steel chamber without any live parts exposed. It has the advantages of full insulation, full sealing, compact structure and convenient installation and operation. It is suitable for indoor and outdoor Installation, from the external environment, with high resistance to harsh environmental performance.

Features:
Anti harsh environment, anti condensation, frost, fog, salt contamination, corrosion resistance etc;
Compact structure, small size, easy to install;
Modular design, flexible expansion;
Smart grid compatible, optional automation terminal, to meet the requirements of smart grid upgrade.

Applicable conditions:
Altitude:≤2000m
Ambienttemperature:-35ºC~+40ºC
Relative humidity
Daily average95%
Monthly average90%
Seismic capacity: 8 degrees








Prod Model: SDC15-12/24
Altitude: <=2000m
Ambient Temperature: -35c-+40c
Seismic Capacity: 8 Degree

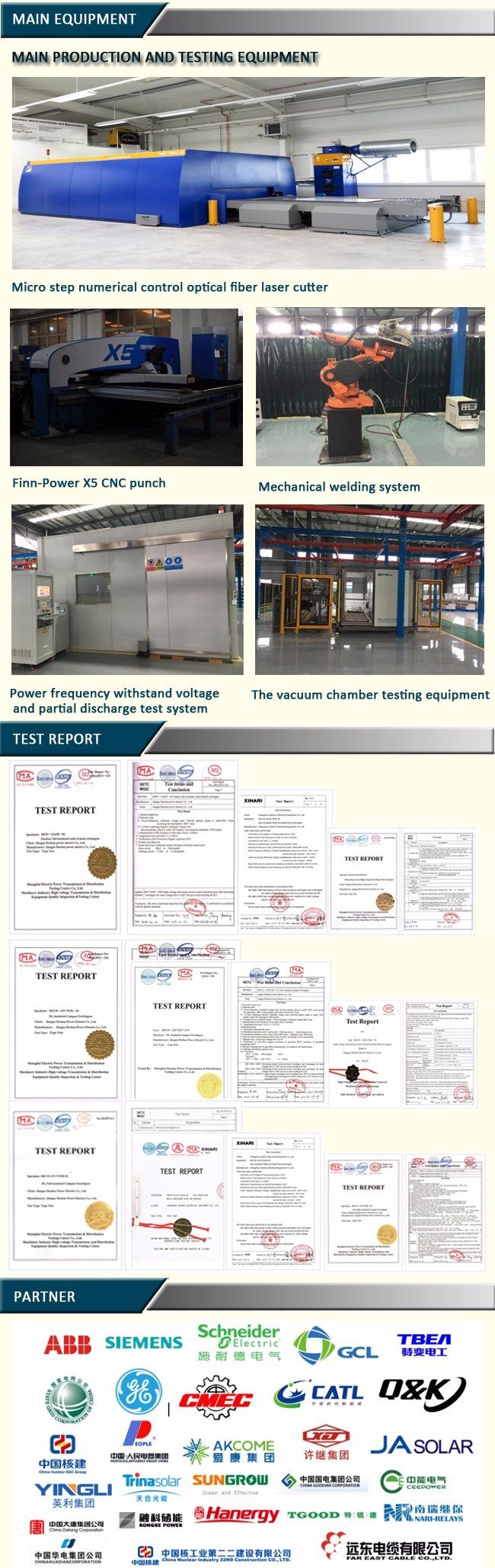

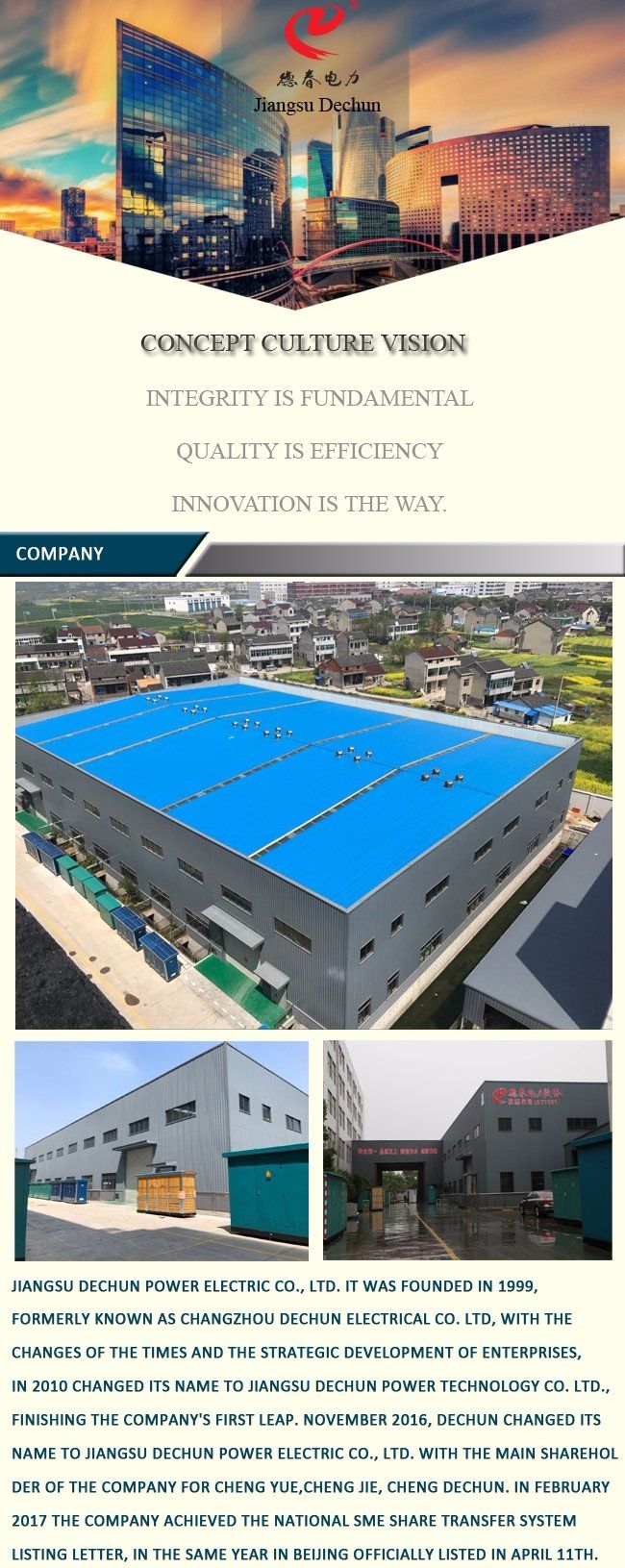

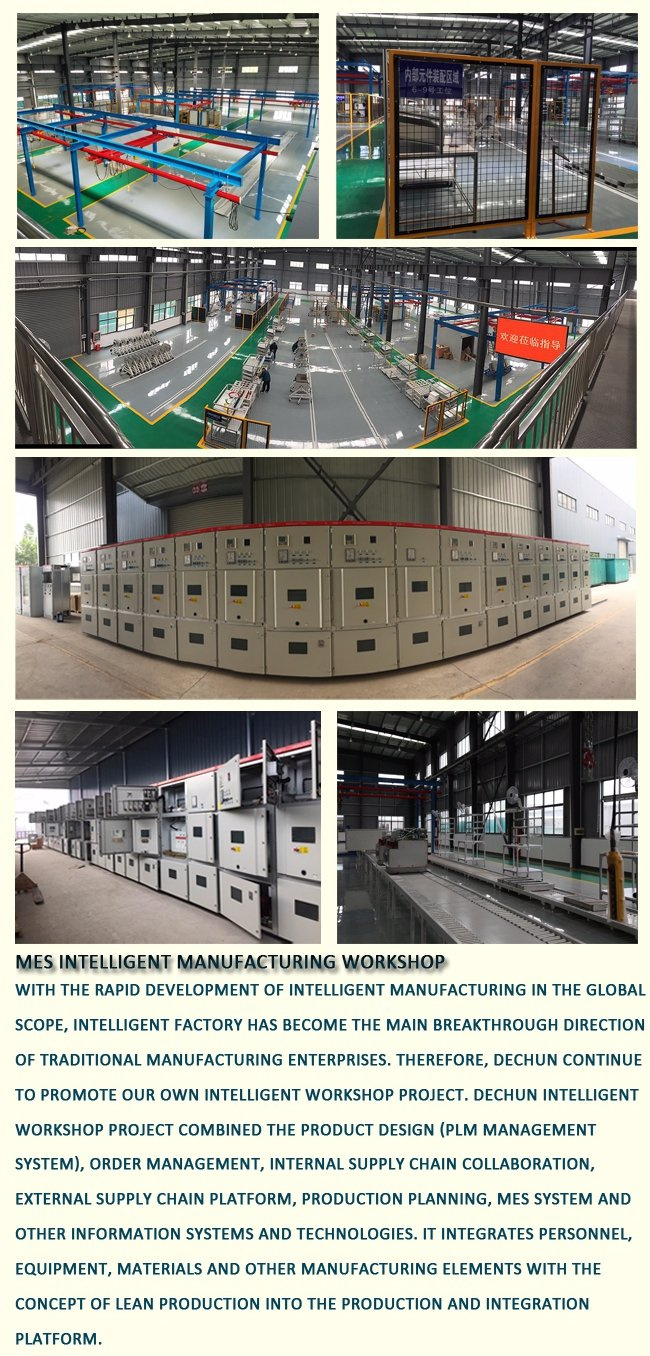

Jiangsu Dechun Power Electric Co., Ltd is located in Menghe Fumin Industrial Park, Xinbei District, Changzhou, Jiangsu Province. It founded in 1999 and covers an area of 50 acres. It built with modern standards for the delivery room 56, 000 square meters and a total investment of 200 million yuan with more than 300 employees. Dechun is one of the domestic key enterprise which researches products such as sulfur hexafluoride load switch, vacuum load switch, sulfur hexafluoride ring network cabinet, cabinets and so on. Dechun has improved production equipment, complete testing equipment and applicable to the product technology standard and tooling facilities.

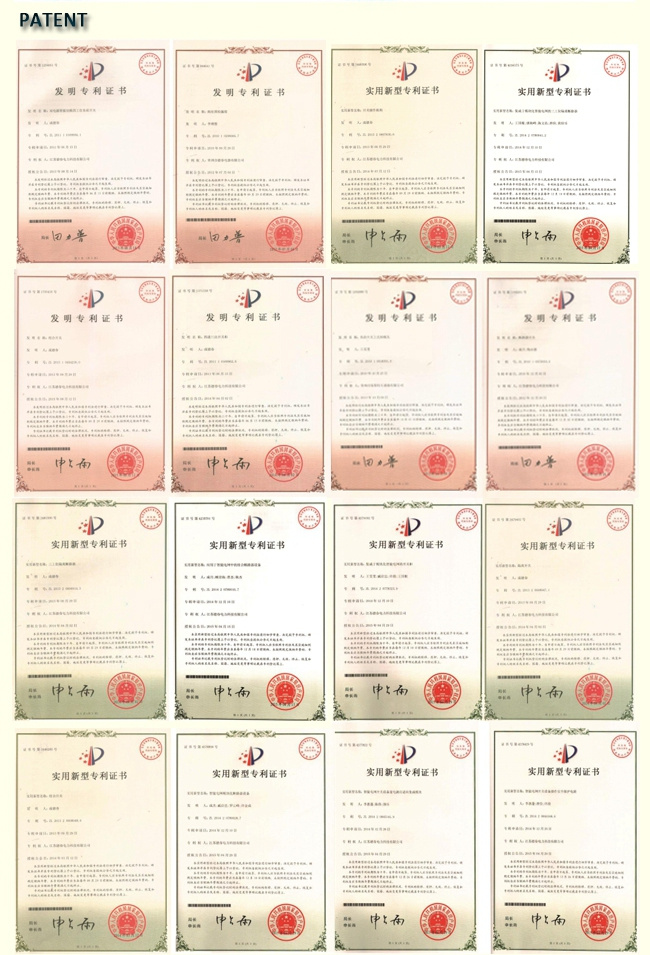

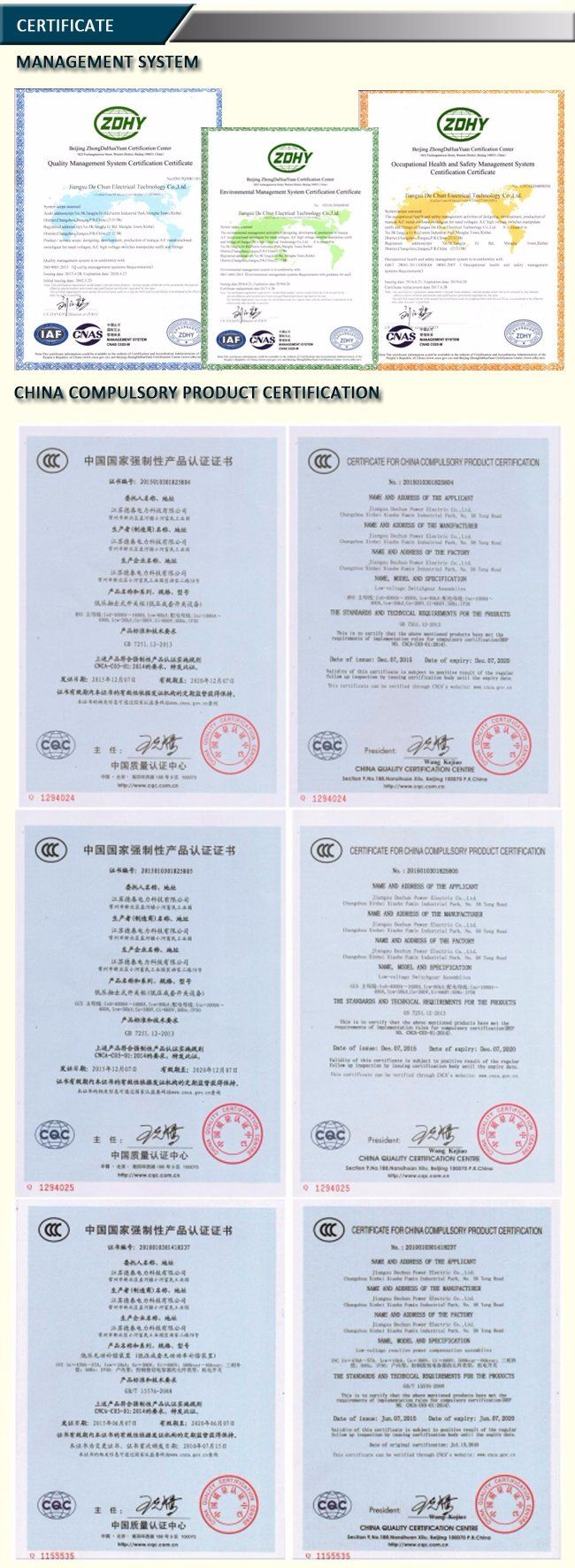

Since its inception, the company has been adhering to the "integrity is fundamental, quality is the efficiency, innovation is the way, " the guiding ideology, constantly optimizes the quality of management. It has always been to new high-tech products as a guide, develops new products, creates a new brand, and constantly improves the technological content and market share. Under the support, as always, from all sections of the community and all the joint efforts of everyone in the company, Dechun was identified as "key national high-tech enterprise", "high-tech enterprises in Jiangsu Province", "private technology enterprises in Jiangsu Province ", "high-tech SMEs in Jiangsu ", "Credit management standard enterprise of Jiangsu Province " and other honors. It also accessed to hundreds of town, district, municipal, provincial and national awards. At the same time, it has passed National safety production standard (grade 2), ISO9001: 2008 quality management system certification and CCC authentication.
