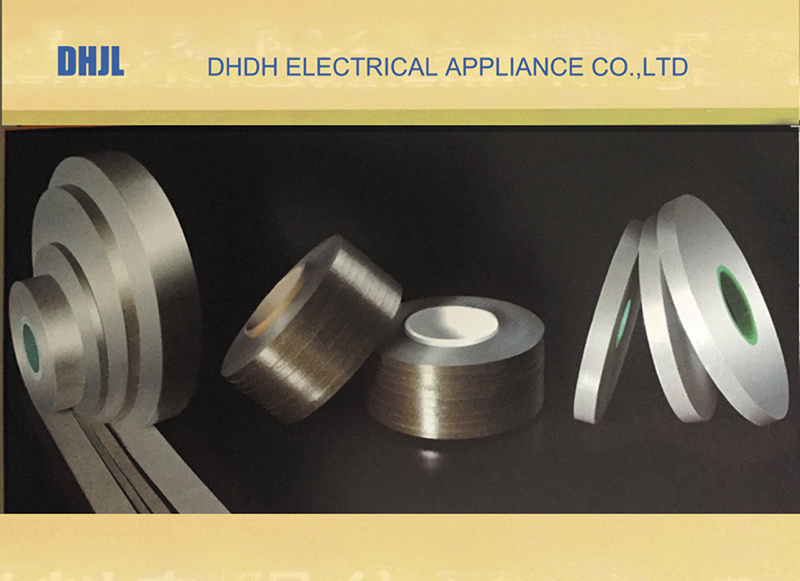

Security Insulation Industry Phlogopite Mica Tapes
Price: |
US $ 1.8-18Kilogram |
Min Order: |
200Kilogram |
Pay Type: |
L/C,T/T,D/P,Western Union |
Quick Details
Place of Origin: | Jiangsu, China (Mainland) | Brand Name: | DHJL | Model Number: | DH-NR-J-GS |
Type: | Insulation Tape | Material: | mica | Application: | High Temperature |
standard reference: | GB5019-85,IEC371 | Color: | grey white or customized | width: | 4.5-880mm |
binder content: | 10-16% | thickness: | 0.08-0.15mm | fire grades: | 950-1000, IEC331 |
mica content: | 60-75% | tensible strength: | 130-200 N/15mm |
Packaging & Delivery
Packaging Details: | Wrapped up with PE film in carton and wooden pallet. |
Delivery Detail: | within 7 working day after receving deposite |
Product Name:
security insulation industry Phlogopite mica tapes
Description
Mica Tape
Mica tape is widely used to withstand/ resist fire cable. which adopt high-quality Phlogopite mica papers, fiber-glass clothes or PE films as their reinforcing materials, and also with organic silicon resin as its adhesive, then are baked with high temperature,and compressed.Theycan withstand temperature up to 1000 °C for 3 hrs
Mica tape is made of mica paper impregnated with a special silicon resin and a glassfiber cloth or PE film as supporting agent
Mica tape is made of phlogopite mica paper or synthetic mica paper impregnated with a special silicon resin and a glassfiber cloth or PE film as supporting agent. These tape have great flexibility and high tensile strength, and their combined characteristics. They can be used to create inorganic, fire-resistant insulation for electrical cables.

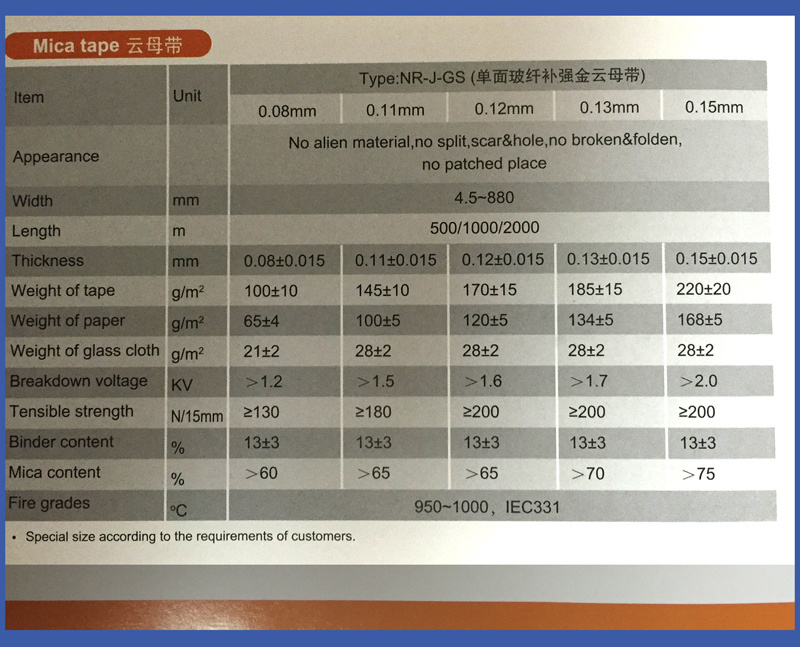

Prod Model: |
DH-NR-J-GS |
Density(g/cm3): |
1.6-2.3 |
Binder Content(%): |
10-15 |
Thickness(mm): |
0.08-0.115 |
Length(mm): |
500/1000/2000 |
Mica Content%: |
Mini 60 |
Application: |
Switch Baseplate |
Type: |
Insulation Sheet |
Chemistry: |
Hybrid Insulation |
Material: |
Mica |
Thermal Rating: |
950-1000/Degree, IEC331 |
Color: |
White Grey Black or Customized |
116th China Import and export Fair Phase 1 (Canton Fair Autumn 2014)
15 Oct 2013 - 19 Oct 2013, China Import and Export Complex, 2.2B05-06 welcome
Lianyungang Jialei Electronic Technology Co., Ltd. is a comprehensive company, which gather manufacture and export business. It is the specialist manufacturer specialized in the production of infrared heater, heating elements and quartz products. We have more than 15 years experience for production and OEM service.
The company is located at the beautiful Yellow Sea--Lianyungang city, Jiangsu province, China. Lianyungang harbor is an important component part of the Eurasian intermodal route. It is apart from the Shanghai harbor 500 kilometers and the Qingdao harbor 300 kilometer. The geographical position is superior. The land, water and air transportation facilitate extremely.
Headquarters locates in the center of Lianyungang city. It has acquired the self-support right on import and export authorized by the State Ministry of Foreign Economy and Trade. The main mode of the company is self-managing and agency for import and export business. The company is provided with comparatively strong specialty import and export professional level, with a lots of compound foreign trade specialists with high quality. We not only provide excellent service to our clients but also raise the efficiency of clearing custom greatly.
In the village of Lianyungang City, the company also has three manufacturing enterprises with a modern plant of 60, 000sq. M. & a working team of over 500 staff, among whom are 30 compound administrating talents and 100 outstanding technicians of these industries. The factories mainly produce infrared carbon heater, quartz products, heating lamps, heating elements etc. The annual output of the heater approximates to 200, 000-500, 000 PCS, the quartz tube approximates to 500 tons and the heating lamp approximates to 5000, 000 PCS.
At the same time, the company also are the export agent of the factories which haven't acquired self-support right on import and export. Such as exporting chemical. Hotel amenities etc.
The factories have obtained ISO9001: 2008, CE, RoHS and Reach certificate. 80% of products are exported to Europe, America, Middle East, Southeast Asia etc. The products are greatly enjoyed by customers with best quality, steady performance and good aftersales servicesrich. We have established long and friendly business relationship with foreign customers from all over the world.
The main products are as follows:
1. Infrared Carbon Heater: ( It is developed independently by us. The advantages are 30-40% energy-saving, 5000 hours lifespan, health benefits and eco-friendly etc. )
2. Quartz Products: Quartz tube (milky, clear, thick, large diameter, gold coated, ruby, borosilicate etc. ) quartz plate, quartz rod, silica ware, etc.
3. Heating Lamps: Carbon fiber heating lamp, halogen heating lamp, metal halogen lamp, quartz heating tube, etc.
4. Heating Elements: Ceramic heater element, quartz heater element, etc.
5. Chemicals: Kinds of Salt(sodium chloride), Sodium hydrosulfite, Iron oxide red, Calcium carbide, DCP & MCP feed grade, Sodium bicarbonate & Ammonium bicarbonate food grade etc.
6. Guest Amenity: Hotel slipper, soap, bath fizzer, hotel bathroom accessory etc.
7. Others: Thermostat, solar water heater, ceramic fiber etc.
We follow the principle of "credit fundamentality, quality first and customer above ". We sincerely welcome customers new or old at home or abroad here to visit and negotiate for cooperation.
