Self Adhesive PVC Electrical Insulation Tape

Name: Self Adhesive PVC Electrical Insulation Tape
Brand: all-electronics-online.com
SKU: 839134405
Availability: InStock
Rating: 5 (81 reviews)

Price:	US $ 0.106/Roll
Min Order:	30000/Roll
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description

Clear self adhesive pvc electrical insulation tape (130Z)

Main Specification

Backing: PVC film
Adhesive: Rubber
Thickness: 0.10mm-0.22mm
Tensile strenth: 14N/cm-30N/cm
Elongation at break: 160%-220%
Adhesion: 1.5N/cm

Pvc tape is made by smearing rubber like pressure-sensitive adhesive on PVC film (its backing material )and mangling them, it has the feathers of insulation, fire-resistance, high-voltage- resistance and cold resistance. It can be used in many electronic spare parts, automobile wires, winding wires and insulation protection.

Code	Backing	Adhesive	Thickness (mm)	Adhesion (N/cm)	Tensile (N/cm)	Elongation (%)	Temperature (°C)	Voltage Breakdown (KV/mm)


100D	PVC	rubber	0.1	1.5	14	160	80	≥40
110D	PVC	rubber	0.11	1.5	15	160	80	≥40
130D	PVC	rubber	0.13	1.5	17	160	80	≥40
150D	PVC	rubber	0.15	1.5	22	200	80	≥40
165D	PVC	rubber	0.165	1.5	25	200	80	≥40
180D	PVC	rubber	0.18	1.5	28	200	80	≥40
190D	PVC	rubber	0.19	1.5	28	200	80	≥40
200D	PVC	rubber	0.2	1.5	30	220	80	≥40
100Z	PVC	rubber	0.1	1.5	14	160	80	≥40
110Z	PVC	rubber	0.11	1.5	15	160	80	≥40
130Z	PVC	rubber	0.13	1.5	17	160	80	≥40
150Z	PVC	rubber	0.15	1.5	22	200	80	≥40
165Z	PVC	rubber	0.165	1.5	25	200	80	≥40
180Z	PVC	rubber	0.18	1.5	28	200	80	≥40
190Z	PVC	rubber	0.19	1.5	28	200	80	≥40
200Z	PVC	rubber	0.2	1.5	30	220	80	≥40

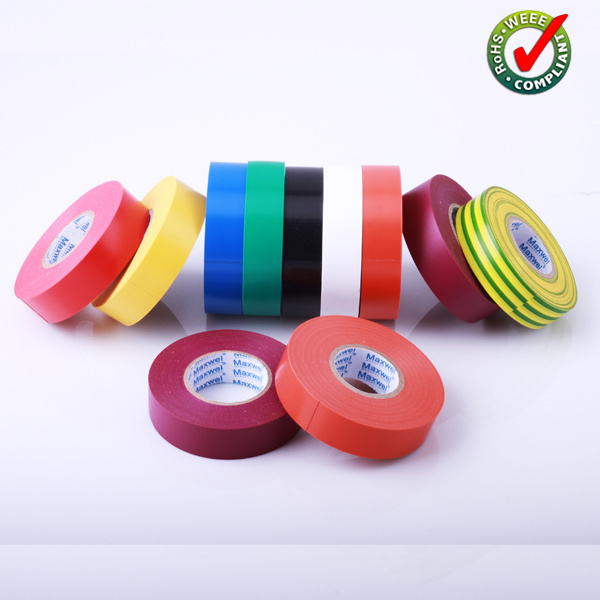

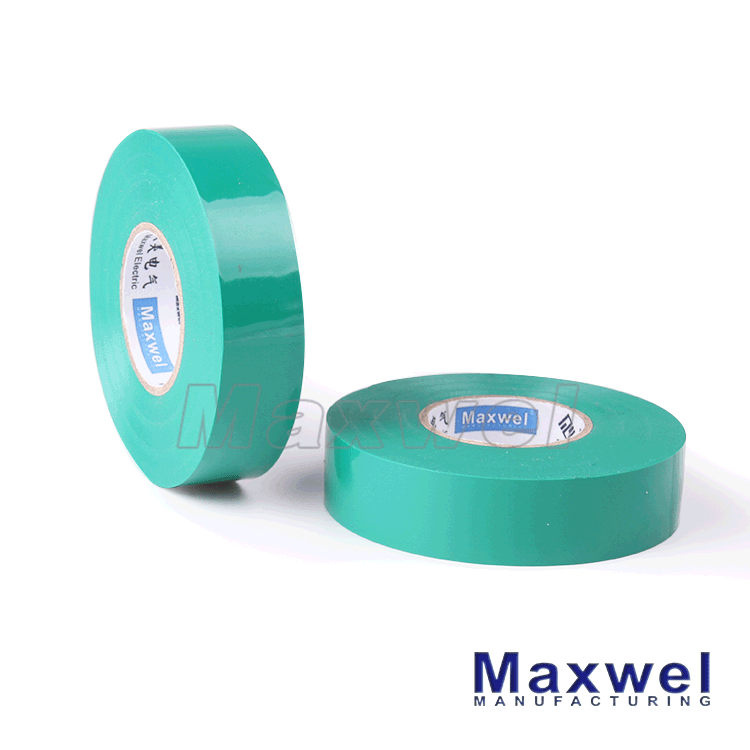

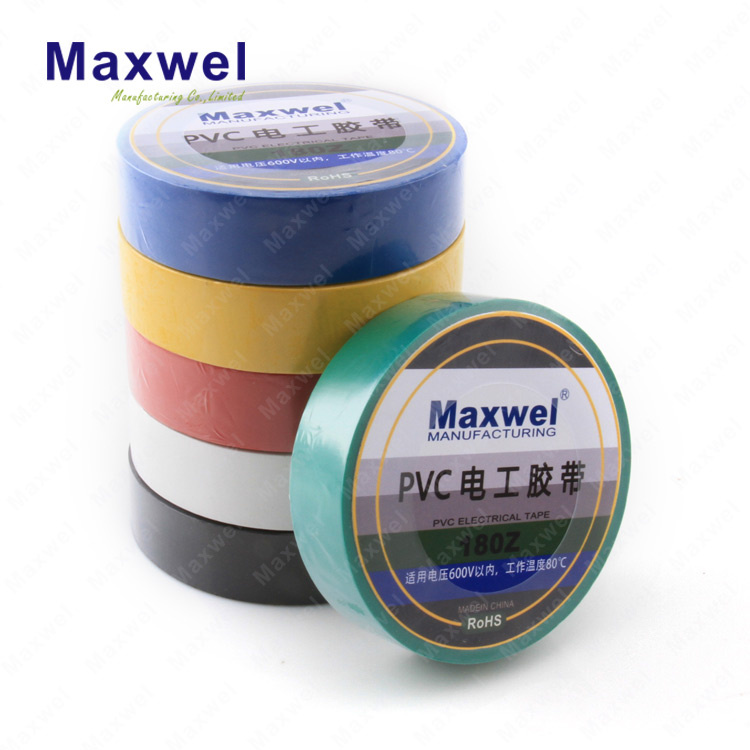

Product Pictures of PVC adhesive tape

Prod Model:	130Z
Width:	19mm
Thickness:	0.13mm
Adhesive:	Rubber
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Material:	PVC
Maximum Voltage:	600 V
Color:	Black;White;Red;Blue;Yellow;Green;etc

About Maxwel Electric

At Maxwel Electric, we efficiently produce a wide variety of tapes and electrical products. Our factory is ISO 9001: 2000-certified, and our products meet various international standards for easier market entry.

A large range for your selection

You can come to us for self-amalgamating, semi-conducting, butyl, mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers, residual current circuit breakers, residual current circuit breakers with over-current protection, switch disconnectors, distribution boxes and more.

Contact us

Our factory is equipped with state-of-the-art testing equipment, and we perform inspections during every step of production to ensure quality. To learn more, contact us today.
