| Prod Model: |
SFX-50-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Submarine Cable |
| Type: |
Cat 1 |
| Certification: |
VDE |
| Conductor Material: |
Sccs(Silver-Plated Copper Clad Steel Wire) |
| Cover Material: |
PVC/FEP/Lszh |
Product Description

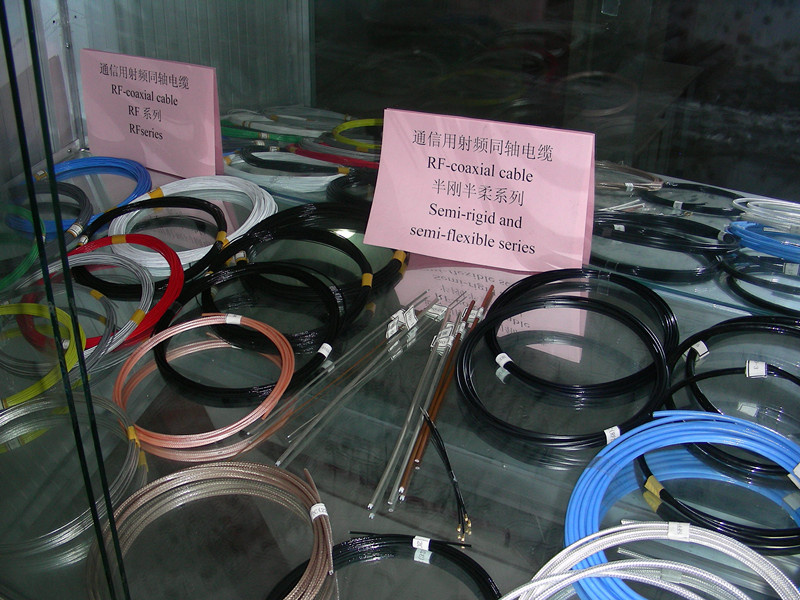

Semi-flexible coaxial cable with PTFE insulator
Technical Data:
1. Operating temperature range: (-65~165)° C
2. Inner conductor: Silver-plated copper
3. Outer conductor: Tinned copper braid outer conductor of the overall dip tin
4. Insulation: PTFE
5. Jacket: FEP/PVC/LSZH
6. Application and features: Semi-flexible coaxial cable with good shielding, the use of high frequency, standing wave ratio is small, power, reliability and other characteristics, as opposed to semi-rigid cable with repeated bending function for the black box of internal connections, mobile base station, delay lines, radio equipment and other electronic devices.
Cable structure and key performance data:
1. Inner conductor number/diameter (mm): Sc1/0.51
2. Nominal insulation OD (mm): 1.68
3. Nominal diameter of outer conductor (mm): 2.18
4. Nominal Feature Impedance (Ω ): 50
5. Attenuation constant ≤ DB/100m:
0.5GHz: 0.55
1GHz: 0.78
5GHz: 1.87
6. Return Loss ≥ DB:
0.5GHz: 28
5GHz: 23
7. Maximum bending mandrel diameter (mm): 6
8. Test Voltage (kv): 3
Notes:
1. Sc: Silver-plated copper
Sccs: Silver-plated copper clad steel wire
2. According to customer requirements characteristic impedance of 35Ω , 37.5Ω , 42Ω , 75Ω And 100Ω Cable, etc., while according to the customer asks for a PVC or FEP jacket.
