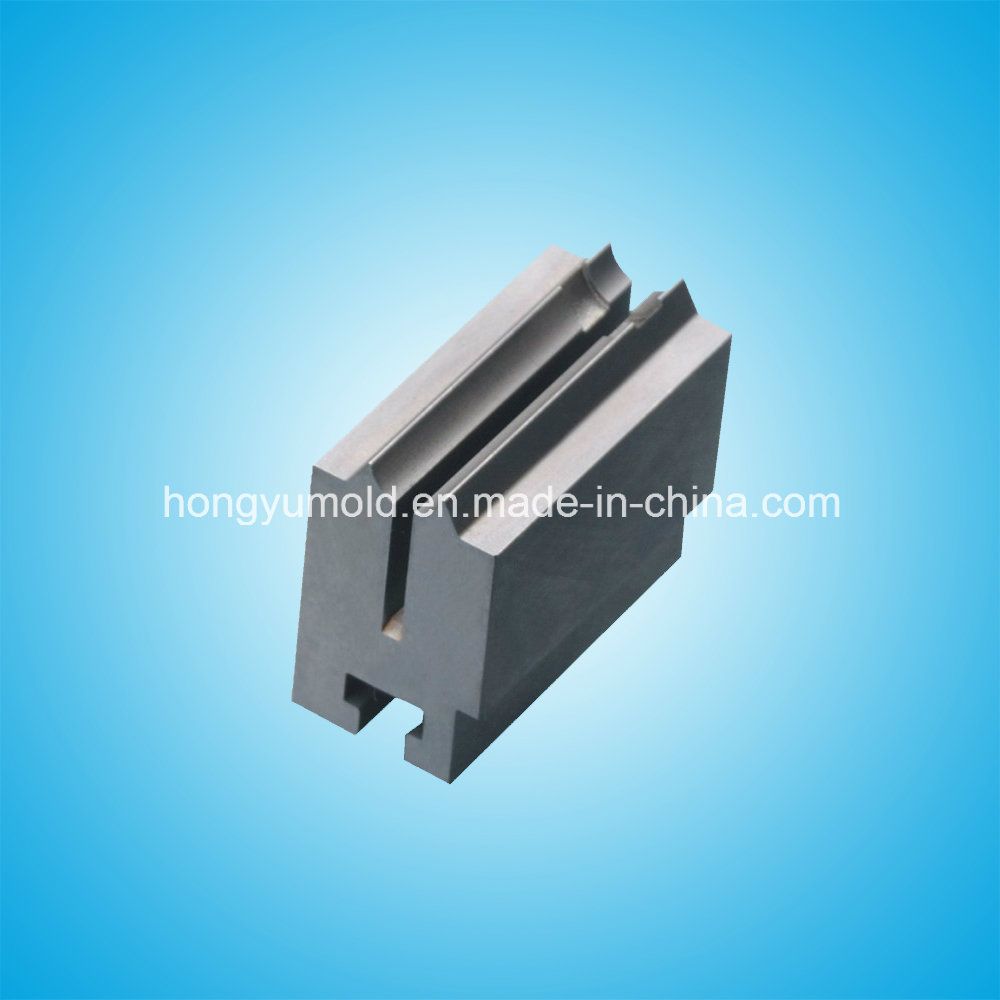

Semiconductor Trim & Forming Inserts (Ceramics/ AF1)
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Eastern Asia |
| Size: |
8mm*10mm*40mm |
| Life Time: |
3 Years |
| Hole Tolerance: |
+/-0.003 |
| Specification: |
Non-Standard, Standard |
| Material: |
Hard Alloy and Steel Bonded Carbide |
| Technics: |
Cutting Die |
| Process Combination: |
Single-Process Mould |
| Manufacturing Technology: |
Automation Technology |
| Driving Motor Type: |
Permanent Magnet |
| Mold Cavity Technology: |
The Traditional Forming Electrode Machining |
| Milling Speed: |
High Speed |
| Parts Detection Method: |
Geometric Detection |
| Application: |
Stamping Mould |
| Processing Method: |
Grind, Wire Cut |
Product Description
With Φ0.2 wire cutting, tolerance can be controlled in ±0.003mm. Outside contour with ±0.002mm. We have three kinds of wires, the diameters are Φ0.2, Φ0.15 and Φ0.1, the smallest radius we can do is R0.07.
Product introductions:| 1 | Item | description |
| 2 | Name | wire cut Die |
| 3 | Process Machine | Grinding machine, Sodick Wire cut machine |
| 4 | Measuring instruments | Projector, Toolmaker Microscope |
| 5 | Contour tolerance | ±0.001 |
| 6 | Profile tolerance | ±0.002 |
| 7 | Hole tolerance | ±0.003 |
|
|
|
| 9 | First trial place order | Track service, anything is wrong, we will take immediate measures |
| 10 | Quotation | Once receive RFQ, we will reply you in 2 hours |
| 11 | Delivery time | 10-20 days after confirm the order |
| 12 | Material | CF-H40S, RD30,RD50,ASP23, AF1,,etc. |
| 13 | Design | Non-standard(according to customers' request), Standard |
| 14 | Minimum order | Products are non-standard parts, one piece is acceptable. |
| 15 | Packing | Carton, attached Quality Control report |
Any more questions, call me, let's talk more!

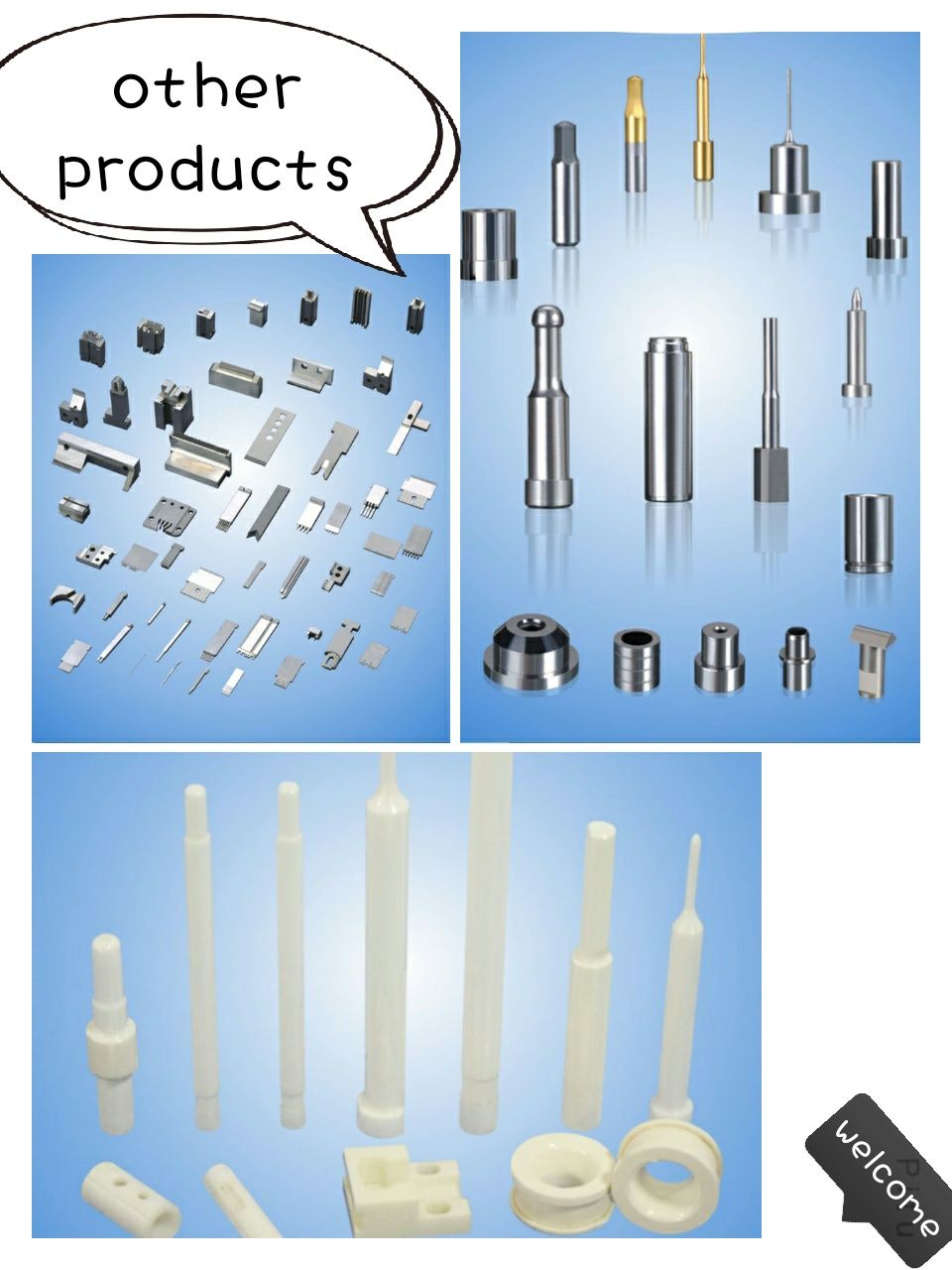

Hongyu Mold Co., Ltd. Specializes in manufacturing of high precision customized components, that can be processed in CNC profile grinding, CNC wire cutting, PG with mirror surface, EDM machining by using our updated equipment. These spare parts are widely used for stamping mold, concerning tungsten carbide molding components, SMD molding parts, connector molding parts, ceramic parts, punches, bushes, and other tooling, etc.
Manufacturing / Precision Electric Discharge
Machining, process in plastic molding components, mirror surface processing, electric pieces of wire cutting machines are widely used. Also, CNC grinding surface S0.2 (Ra0.04um) performs with high accuracy quality.
We are in possession of well known imported equipment, such as:
Swiss - AgieCharmilles Wire Cutting Machines;
Japan - WADIA Profile Grinding Machines;
Sodick Wire Cutting Machines;
Okamoto Grinders
SMAP Lapping Machine;
Taiwan - Tatung-Okuma Grinder;
CJ-350 Electric Discharge machines;
Therefore, we can provide high quality products with reasonable price, JIT delivery and best service.

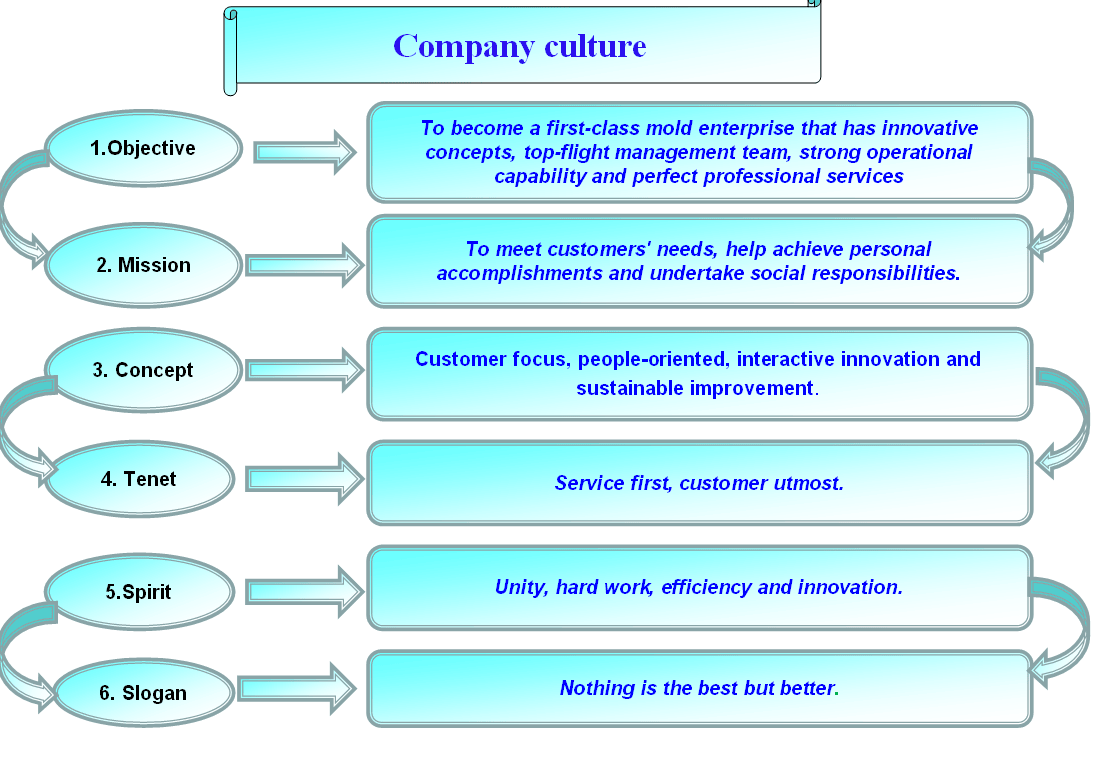

Our company persists in the principle of "Customers as the Center, Quality as the Basement of Our Company's Development and Services". So we are dedicated to providing customers satisfactory products and servicing more intimately to keep customers' acquisition and retention.
For finished products, we set up professional testing and measuring equipment, including:
NIKON Toolmaker Microscope CURO-VM-GI;
NIKON Projector V12B;
Accretech Contourecord 1600G;
Nikon Dig Micro Altimeter MS-11C;
Mahr Dig Mircro Altimeter CX1;
Mitutoyo Dig Micrometer Caliper IP65, and others.
We are a professional team with over 40 technical staff. Even though not very big, we are very proud of our quality products, prompt delivery and best service. We will continue to improve so as to satisfy our customers both overseas and locals.
Thank you for your time to visit our website.
Dongguan Hongyu Mold Co., Ltd.
Address: 126 Xinma Road, Xinmalian Village, Dalang Town, Dongguan City, Guangdong Province, China.
Postal code: 523785
Tel: +86 769 83203300/ 83011518/ 83011519
Fax: +86 769 83202200
