| Prod Model: |
MUV-3/5 |
| Laser Type: |
Imported UV Laser |
| Laser Power: |
3W/T5w |
| Standard Marking Area: |
100mm*100mm |
| Optional Marking Area: |
50mm*50mm~250mm*250mm |
| Repetitive Of Positioning Accuracy: |
2urad |
| Minimum Line Width: |
0.01mm |
| Dimensions(L*W*H): |
650mm*1050mm*1450mm |
| Total Weight: |
170kg |
Product Description

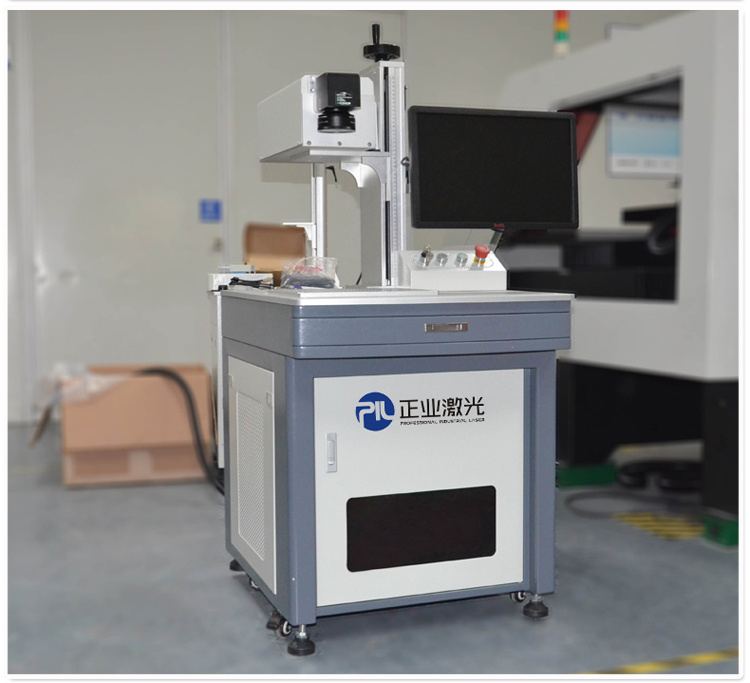

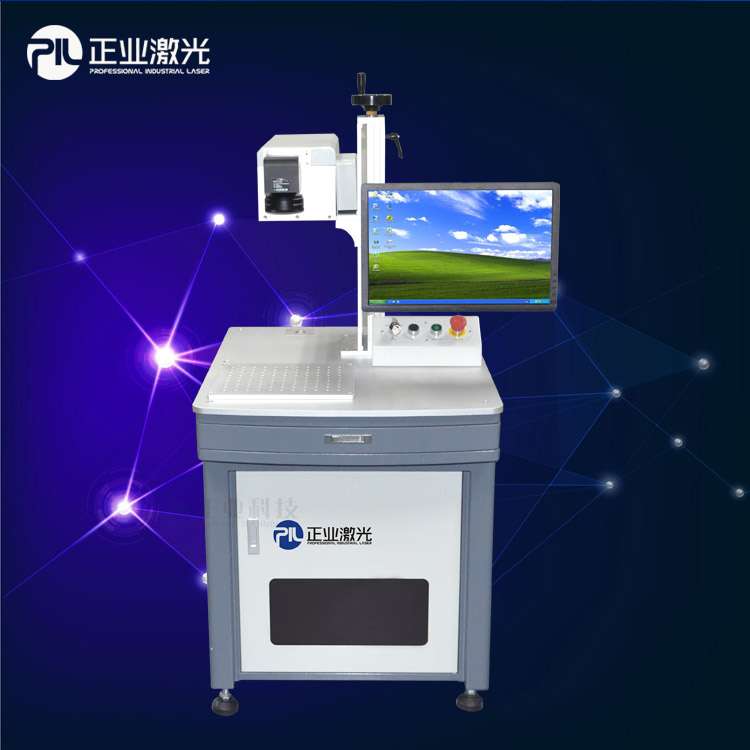

Semiconductor Wafer Laser Marking Machine
UV Laser Marking System USAGE
The machine employs the imported UV laser and imported high-speed galvanometer as its central devices. It is widely used for metal or nonmetal's surface marking to make up for the lack of IR Laser's processing ability. The main applicable materials are electronic products shell marking, battery charger, data line, mobile phone, computer fitting marking, electronic components, jewellery, horologe marking, PCB, FPC marking and cutting, Glass product marking, metal, alloys marking and plastics material's marking, etc.
UV Laser Marking System ADVANTAGE
1. Hyper-fine Laser marking base on Imported UV Laser's good light beam quality and small focusing spot.
2. Good processing effect and wide applicable material type base on mild heat-affected of UV Laser marking.
3. High processing accuracy, high marking speed and good stability base on imported high-speed galvanometer.
4. Convenient Operation:Convenient data processing with dedicated laser marking software. Interface is simple and friendly, easy operation.
5. Available support file format: PLT,DXF,AI,SDT,BMP,JPG,JPEG,TGA,PNG,TIF,TIFF, etc.
6. Support one-dimensional code and two-dimensional code marking such as Code39,EAN,PDF417,DATAMATRIX, etc.
7. Option function: marking-on-the-fling, rotary marking and X,Y 2D platform.

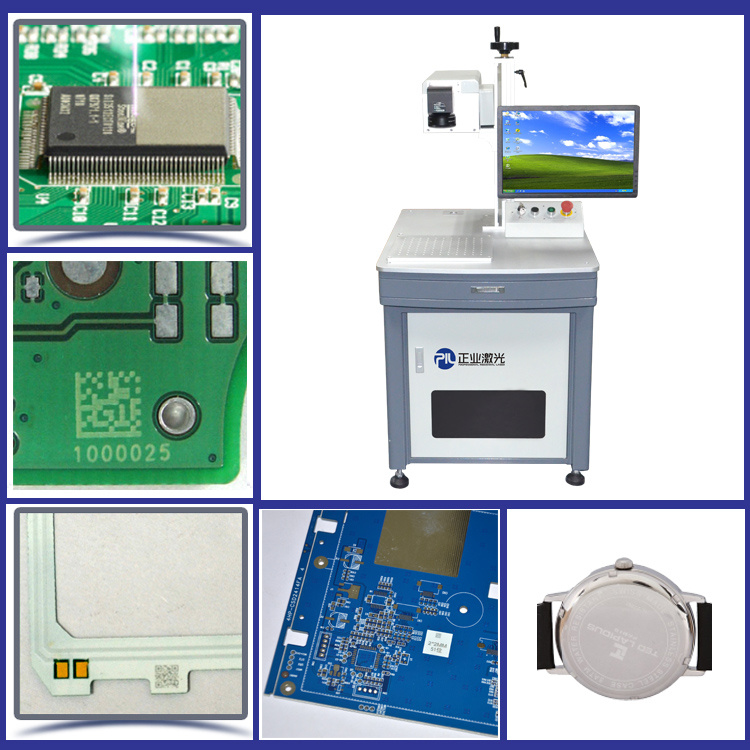

UV Laser Marking System APPLICATIONS
It is widely used for consumer electronic products, electronic components, jewellery, horologe, Food and beverage packaging,Medical packaging, PCB/FPC, glass container, etc.
UV Laser Marking System TECHNICAL PARAMETER| Specifications of UV Laser Marking Machine |
| Model | MUV-3 | MUV-5 |
| Laser type | Imported UV Laser |
| Laser power | 3W | 5W |
| Laser wavelength | 355 nm |
| Laser frequency | 300-100 kHz |
| Laser power stability | <=5% rms |
| M2 beam quality | <=1.3 |
| Laser cooling method | Air Cooling |
| Marking speed | <=6000 mm/s |
| Marking area | Stand marking size: 100 mm × 100 mm;
Optional marking size: 50 mm × 50 mm~200 mm × 200 mm. |
| Minimum line width | 0.01 mm |
| Minimum character | 0.1 mm |
| Repetitive of positioning accuracy | 0.003 mm |
| Ambient temperature | 15ºC-35ºC |
| Ambient humidity | 10%-85%RH, Non-Condensing |
| Power Supply | 220V/50Hz |
| Power of machine | 800W |
| Total weight | 170kg |
| Software language | Chinese,English,Japanese,Korean |
| Font Format | Support true type, JSF, SHX,DMF |
| Support bar code format | One-Dimension code:CODE39, CODE93,CODE128,ENA standard, EAN-128;
Two-Dimension code: DataMatrix, QRcode, PDF417, micro QRcode |
| Support file format | BMP,JPG,PNG,TIF,GIF,TGA,DXF,AI,AST,PLT |
| Special custom functions | Rotating marking function(marking while rotating);
Flying marking function(marking while conveyor belt moving);
Add X/Y axes motion platform;
Automatic loading and unloading. |
