Sensorless Vector Control AC Drive
| Price: |
US $ 140-147/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |

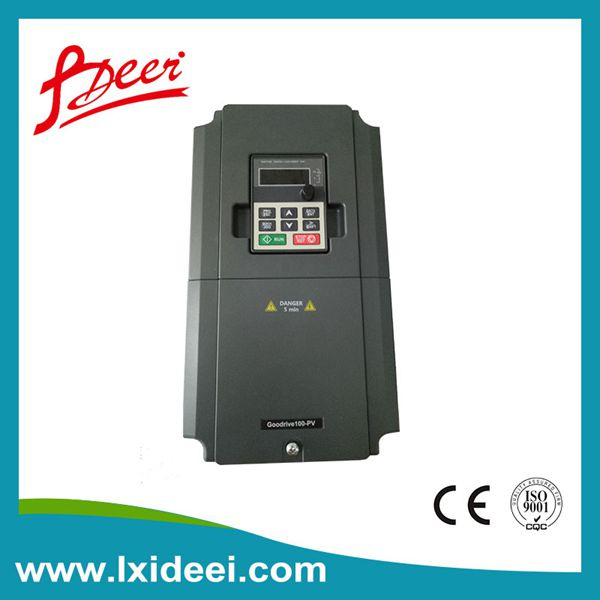

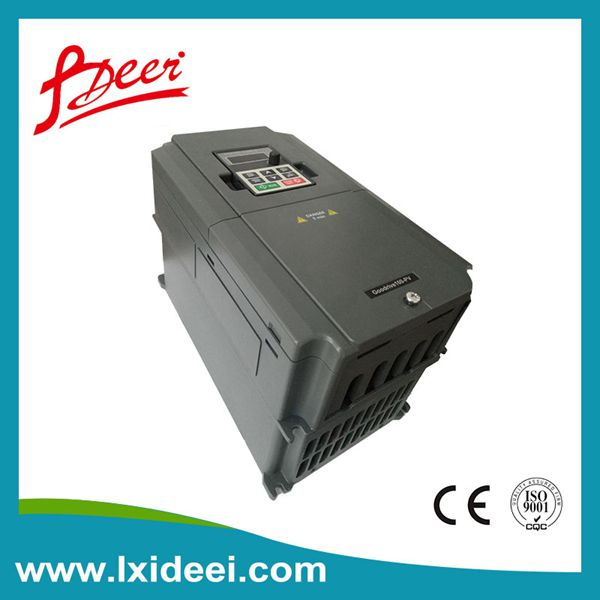

Goodrive100-PV series Solar Pumping InverterGoodrive 100-PV series inverter is applied to PV pump system,replaces water storage with electric storage and needs no battery modules. GD100 Variable Frequency Drive contains both V/F and sensorless vector control. It adopts newly designed platform to provide excellent motor drive performance, high performance product aimed at the general inverter market.
Product Model| VFD Model | Input Voltage | Rated Output Power(KW) | Rated Input Current(A) | Rated Output Current(A) | Applicable Motor(KW) |
| GD100-0R4G-S2-PV |
Single Phase 220V | 0.4 | 6.5 | 2.5 | 0.4 |
| GD100-0R7G-S2-PV | 0.75 | 9.3 | 4.2 | 0.75 |
| GD100-1R5G-S2-PV | 1.5 | 15.7 | 7.5 | 1.5 |
| GD100-2R2G-S2-PV | 2.2 | 24 | 10 | 2.2 |
| GD100-0R7G-4-PV |
Three Phase 380V | 0.75 | 3.4 | 2.5 | 0.75 |
| GD100-1R5G-4-PV | 1.5 | 5.0 | 4.2 | 1.5 |
| GD100-2R2G-4-PV | 2.2 | 5.8 | 5.5 | 2.2 |
| GD100-004G-4-PV | 4.0 | 13.5 | 9.5 | 4.0 |
| GD100-5R5G-4-PV | 5.5 | 19.5 | 14 | 5.5 |
| GD100-7R5G-4-PV | 7.5 | 25 | 18.5 | 7.5 |
| GD100-011G-4-PV | 11 | 32 | 25 | 11 |
| GD100-015G-4-PV | 15 | 40 | 32 | 15 |
| GD100-018G-4-PV | 18.5 | 47 | 38 | 18.5 |
| GD100-022G-4-PV | 22 | 51 | 45 | 22 |
| GD100-030G-4-PV | 30 | 70 | 60 | 30 |
| GD100-037G-4-PV | 37 | 80 | 75 | 37 |
| GD100-045G-4-PV | 45 | 94 | 92 | 45 |
| GD100-055G-4-PV | 55 | 128 | 115 | 55 |
| GD100-075G-4-PV | 75 | 160 | 150 | 75 |
| GD100-090G-4-PV | 90 | 190 | 180 | 90 |
| GD100-110G-4-PV | 110 | 225 | 215 | 110 |
Technical Specifications| Function | Specification |
| Input | Input Voltage(V) | AC 3PH 380V(-15%)~40V(+10%) |
| Input Frequency(Hz) | 47~63Hz |
Output | Output Voltage(V) | 0~Input Voltage |
| Output Frequency(Hz) | 0~400Hz |
| Output Power(KW) | 0.4~110KW |
Technical Control Feature | Control Mode | SVPWM, Sensorless Vector Control |
| Motor Type | Asynchronous Motor |
| Speed Ratio | 1:100(SVC) |
| Speed Control Accuracy | ±0.2%(Sensorless Vector Control) |
| Speed Fluctutation | ±0.3%(Sensorless Vector Control) |
| Torque Response | <50ms (Sensorless Vector Control) |
| Torque Control Accuracy | 10% (Sensorless Vector Control) |
| Starting Torque | 0.5Hz/150% (Sensorless Vector Control) |
| Overload Capacity | 150% of rated current: 1 minute
180% of rated current: 10 seconds
200% of rated current: 1 second |
Running Control Feature | Frequency Setting Mode | Digital setting, analog setting, pulse frequency setting, multi-stage speed running setting, simple PLC setting, PID setting, MODBUS commucation setting.
Realize the shifting between the set combination |
Fault Protection | Provide over 30 fault protection functions: overcurrent,overvoltage,undervoltage,overheating,phase failure and overload, etc. |

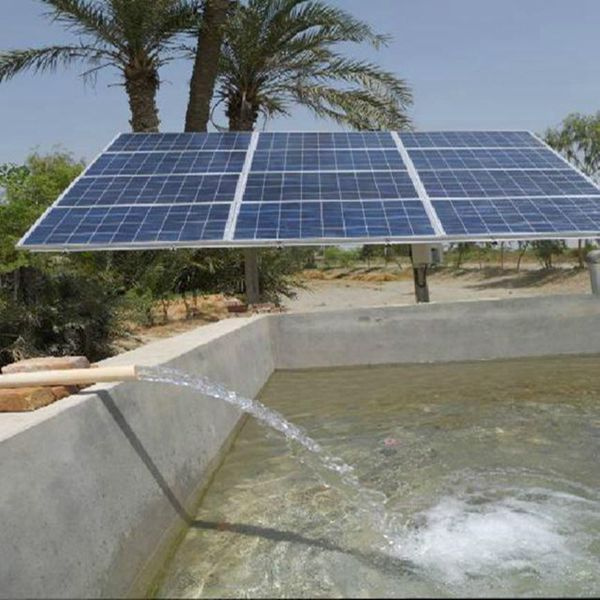

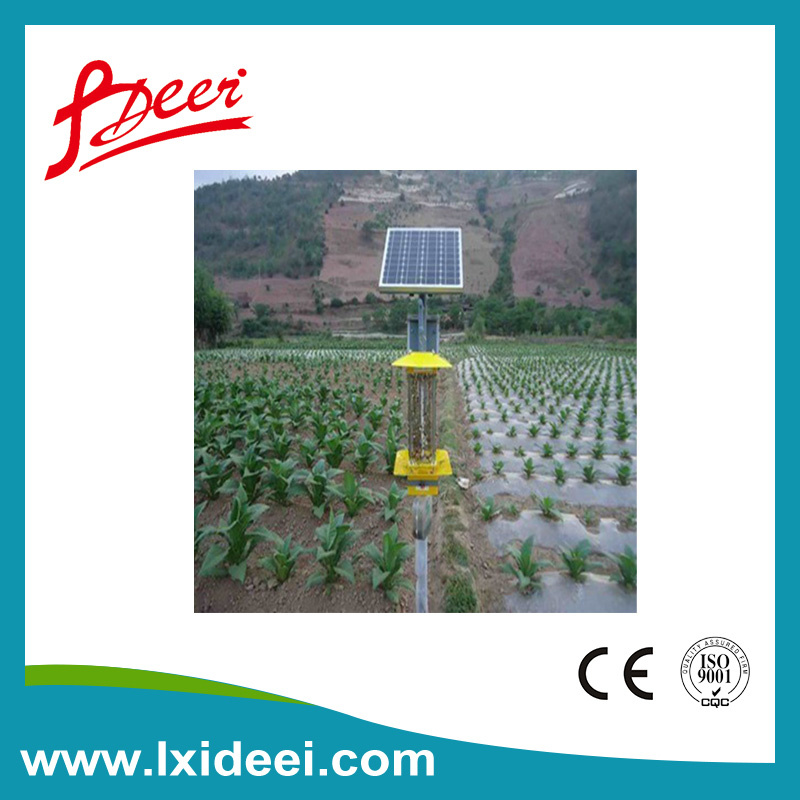

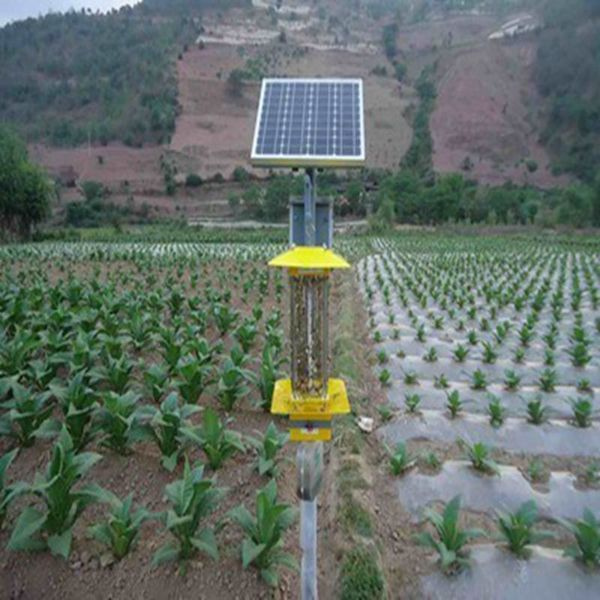

Application Area
OEM Service:
We can desgin and produce it according to your requirements. We have been offering OEM service for over 10 years.
Warranty of Products:
The warranty period of the product is 18 months.
Sample:
We can offer samples for free, but the freight cost must be at customer.Packaging & Shipping PVC BAG + SPONGE + CARTON + WOOD BOX FOR FREE FUMIGATION
| Prod Model: |
GD100-7R5G-4-PV |
| Output Power: |
7.5kw |
| Input Frequency: |
50/60Hz |
| Input Voltage: |
380V |
| Output Voltage: |
0-380V |
| Output Current: |
18.5A |
| Application: |
Three Phase Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Function: |
Photovoltaic Pump |
| Brand: |
Ideei |
Haiyan Lixiang Electronic Technology Co., Ltd. Was founded in 2012, located in the Haiyan city. It is a professional frequency converter manufacturer engaged in R&D, production and sales.
Lixiang has the principles and concept of "technology innovation, pursuit of excellence, people - centered, science and technology enterprise", and "creating values for customers" is its business purpose. We commit to innovate and research for special machine, and improve the frequency inverters according to customers' needs. It achieves good results.
The products are used widely in steel, building materials, textile, printing and machine tool industries, etc.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
The company owns a large sales service network throughout China, and it also has a modern production base with international manufacturing and testing equipments. We have created the partnerships with hundreds of distributors and thousands of customers. At the same time, the products and exported to Southeast Asia, Middle East, Europe, the US and other areas.
We believe Lixiang Electronic Technology will become one of the most influential companies in frequency conversion field. And we will be your trustworthy partner!
