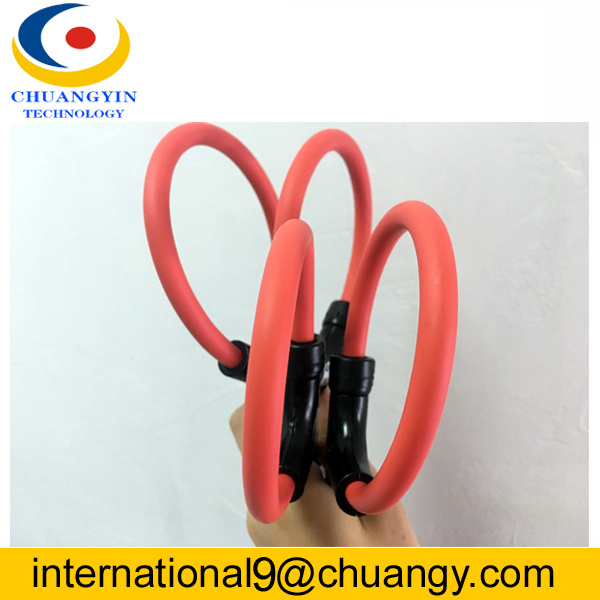

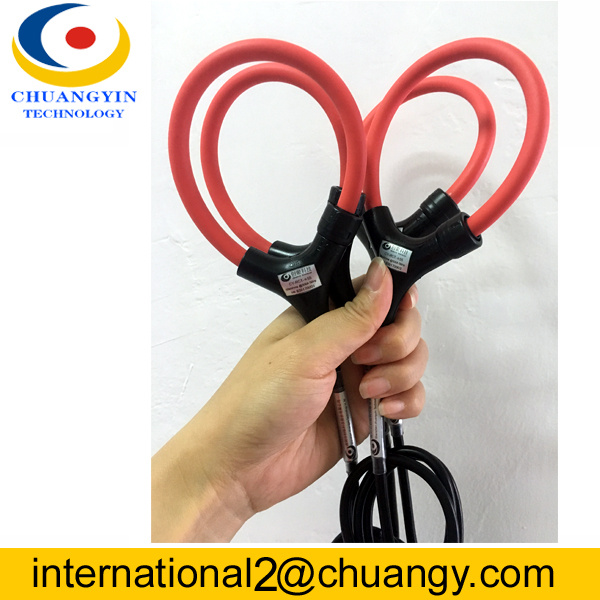

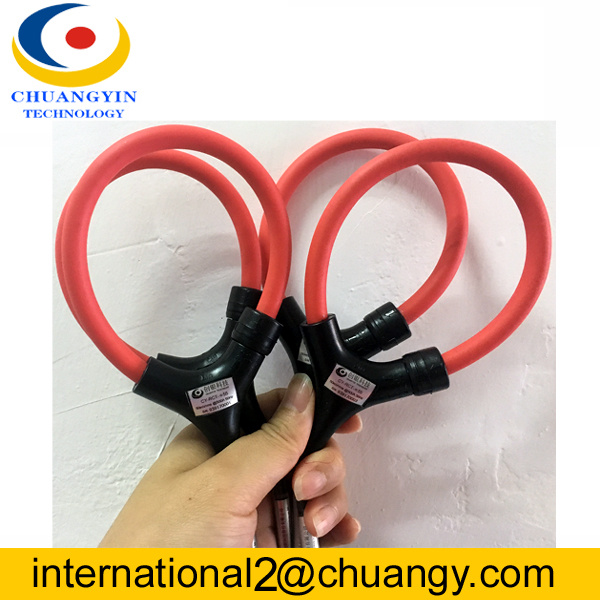

Series Clamp-on Flexible Rogowski Coil
Current Transformers CY-RCT01
The "RCT01 Flexible Rogowski coil current transformer" are designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables.
Features:
.Flexible and light weights
.Easy& quick installation in tight spaces
.No danger from open-circuited secondary
.No core saturation or damage if overloaded
.excellent linearity
.Multi-size are available
Applications:
.Power quality monitoring
.Power meters
.Smart logger
.Energy sub-meters
.Distributed measurement systems
Model Code:
General data:
.Ambient operating temp:-20...+70
.Ambient storage temp.:-25...+75
.Standard Safety:IEC 61010-1:2001,600V CAT
Dimension:
Dimensions | CY-RCT01-55 CY-RCTA01-55 | CY-RCT01-80 CY-RCTA01-80 | CY-RCT01-105 CY-RCTA01-105 |
Window A | 55 | 80 | 105 |
Coil Length B | 68.5 | 93.5 | 118.5 |
Coil Length C | 200 | 300 | 380 |
Out connection | UL2586-ESB2*24AWG L=150cm(as required) Coax terminated with safety male BNC connector L =300cm(as required) UL2586-esb2*24AWG L=150cm(as required)with integrator |
Electrial Parameter:
Modal NO Date | CY-RCT01-55 | CY-RCT01-80 | CY-RCT01-105 | CY-RCTA01-55 | CY-RCTA01-80 | CY-RCTA01-105 |
Current Range | 10A-10KA | 10A-6000A |
Frequency | 25Hz-20kHz | 45Hz-600Hz |
Output Voltage | Rated curent | 500A | 1000A | 2000A | 250A,500A,800A,1000A | 1000A,1500A,2000A,2500A | 1000A, 2000A, 2500A 3000A |
50Hz | 50Mv AC | 100mv AC | 200mv AC | |
|
Max output | / | 3.0V AC max |
Accuracy | <1%@25ºC(45-65Hz) | <1%@25ºC(45-65Hz) |
Phase error | <60@25ºC(45-65Hz) | <60@25ºC(45-65Hz) |
Output sensitivity | ±2%Max (No Calibration) | 1% |
±0.5%@25ºC(with Calibration |
Linearity error | ±0.2%(10%-100%IIn) | ±0.2% |
Position Sensitivity | ±0.2% | ±2% |
External Influence | ±0.2% Max | ±1.5%Max |
Power Supply | / | 10-30VDC,30m A MAX. |

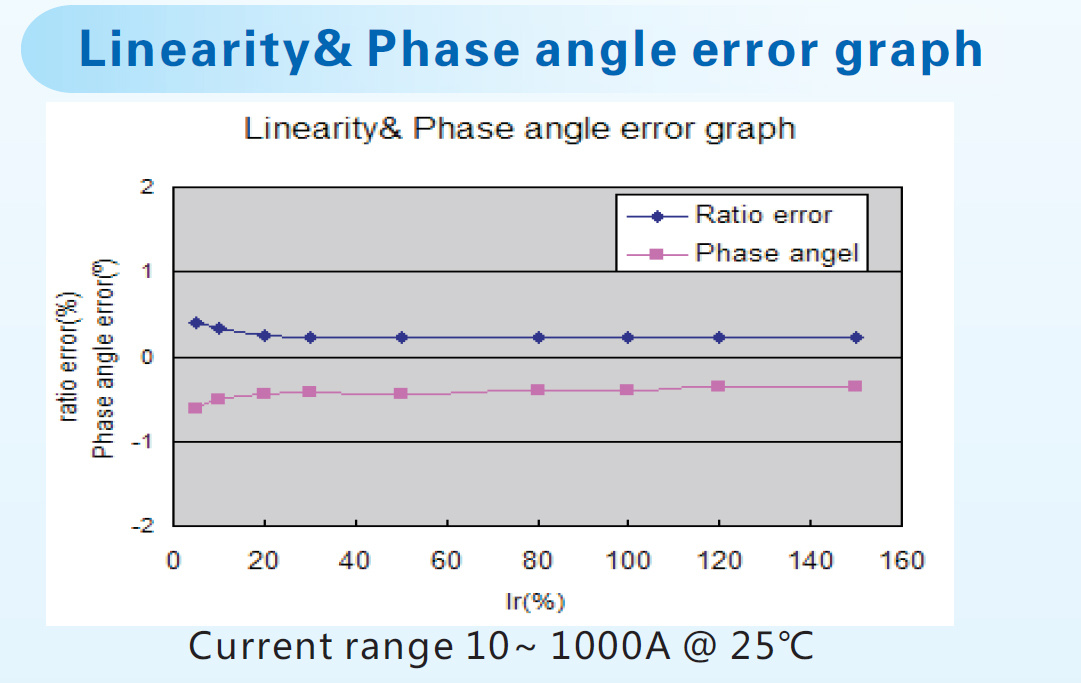

Linearity& Phase angle error graph

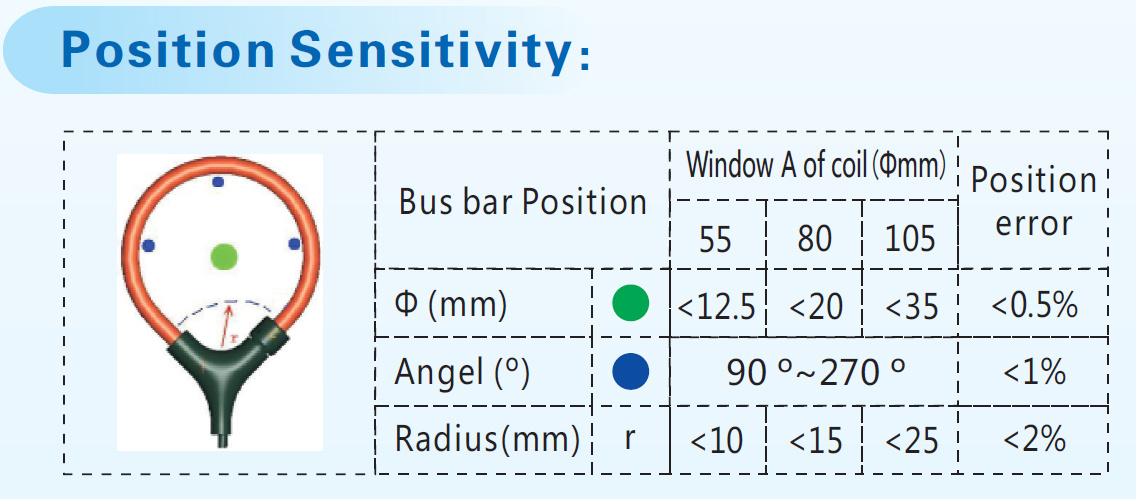

Position Sensitivity

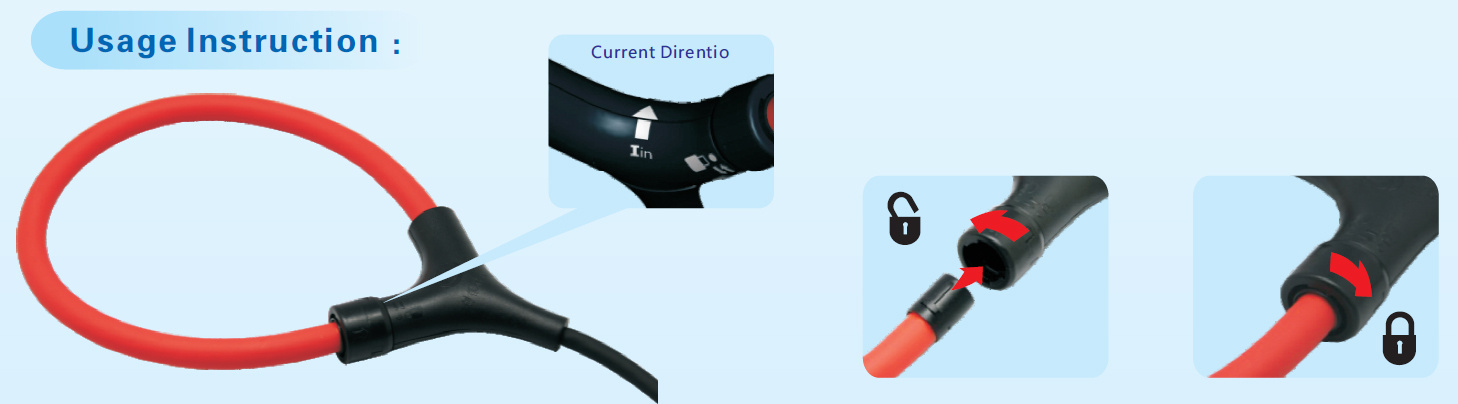

Usage Instruction:
Note:
Please browse our website and download product catalogue for detailed information.
Note:
Please browse our website and download product catalogue for detailed information.
