| Prod Model: |
Shaft Dia 32mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
100W~3.7kw |
| Phase: |
Single Phase, Three Phase |
| Voltage: |
220V, 380V |
| Gear Ratio: |
3, 5, 10...1800:1 |
| Number Of Stator: |
Single-Phase |
| Function: |
Transmission |
| Certification: |
CCC, CE, UL. RoHS |
| Brand: |
Zd |
Product Description

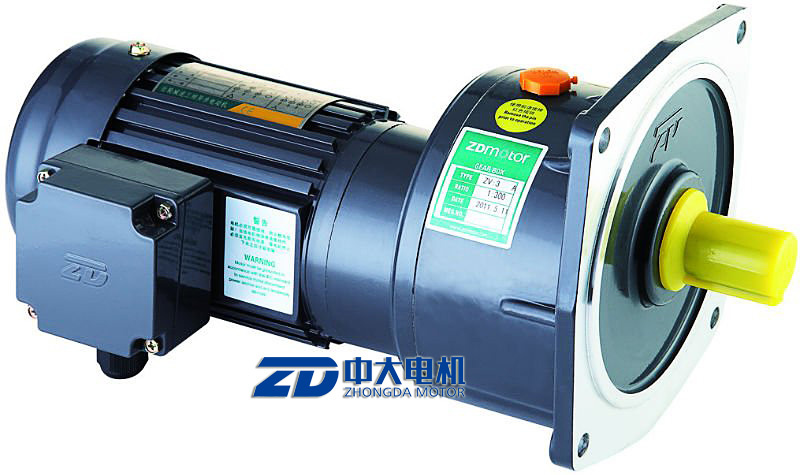

Shaft Dia 28mm Small AC Gear Motor (Horizonal)
<1000m |
Starting |
Direct start |
0.1-.02kw capacitor
0.4-1.5kw double capacitors |
Standard |
GB755/IEC-60034 |
Main parts notes:
Parts name |
Notes |
Gearbox |
The output shaft diameter of gearbox 1#,2#,3# are 18,22,28mm separately.the material of gearbox is alum alloy.4#,5#,6# are 32,40,50 respectively.Gearbox is made of cast iron. |
Gear piece |
The material 40Cr mixes to HB280,then dealed with high frequency quencher HRC50.Gear should be processed by milling with high precision.The class is 6. |
Gear shaft |
The material 20CrMnTi will be changed into HRC60 through processing of cementite quencher.Gear shaft will be processed with gear hobbing.Precision class is 6. |
Motor shaft |
The material 40Cr mixes to HB280,then dealed with high frequency quencher HRC54.Finally,gear is cut for the second.motor shaft will be processed with gear hobbing.Precision class is 5-6. |
Ball bearing |
We adopt tight bearing with high precision,to make sure longterm running lift. |
Oil seal |
Gear shaft gives priorith to enduring high temp,avoiding oil infiltration. |
Terminal box |
Two type.one is al alloy,which equips good capability of waterproof and dustproof.Protection grade is IP54.The other is steel case with deft structure.Protection grade is IP20. |
Gear of small series:
1.The material of rotor is 40Cr,quench to HRC50-55 after rough rolling,two times hard cutting,the gear precision can arrive ISO class6-7.
2.The material of shafe gear is 20CrMnTi,quench to HRC58-61 after rough rolling,two times hard cutting,the gear precision can arrive ISO class6-7.
2.The material of plate gear is 40Cr,quench to HRC48-51 after rough rolling,grind,the precision can arrive ISO class6-7.
Brake series:
1.Economical and compact.
2.High pressure-resistance,good insulation,insulation class F,can work in different kinds of ambient.
3.Long life,adopting abrasion-resistance lead-free,non asbestos friction plate,making sure the long life.
4.It"s selective of assembling hole diameter and easy assembling.
5.Multiple assembling way meets different customers.
Ningbo zhongda leader transmission equipment Co., Ltd. is specialized in mini AC gear motors. At present, our main products are: Gear motors, three phase motors, speed control motors, brake motors, damping motors, torque motors, and DC gear motors. They are widely used in machine tools, textile machinery, medical appliance, conveying machines, printing mechanism, food machinery, vending machines, packing machinery, and gumming machines.
Our tenet is: Quality as foundation, reputation first, seeking for outstanding position. With excellent equipment, advanced procedure, scientific management, and modern test method, we can provide all customers both at home and abroad with our top quality products, favorable prices and sincere service.
We welcome interested companies to inquire about our products. We are looking forward to establishing long-term business relationships together with you for mutual business success.
