| Prod Model: |
DL-GPS-036 |
| Sample Time: |
5-7 Days |
| Amplifier Gain: |
30±2dB |
| Noise Limiter: |
≤3 |
| Output Impedence: |
50Ω |
| Usage: |
Broadcasting Antenna |
| Operating Wavelength: |
Microwave |
| Material: |
Al |
| Directionality: |
Omnidirectional Antenna |
| VSWR: |
<=2.0 |
Product Description
1. Product Introduce

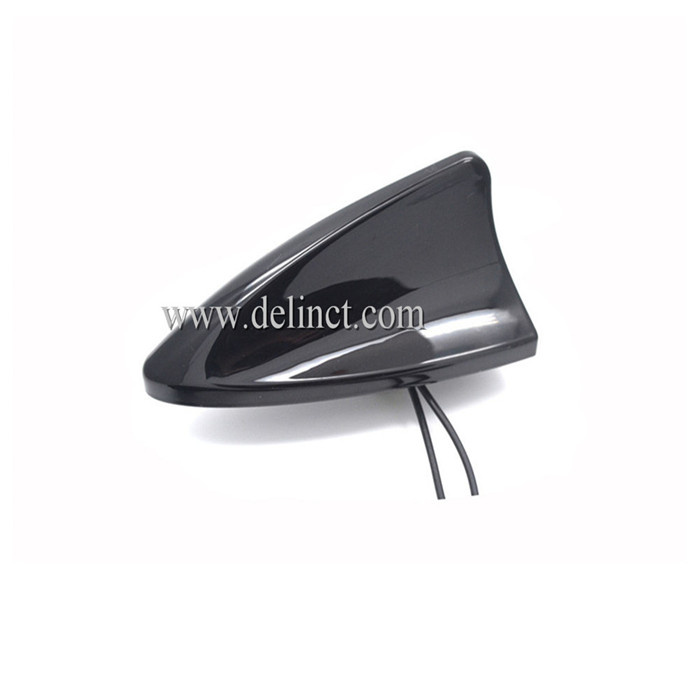

Our shark fin antenna is made up of GPS&AM/FM&4G&WIFI&2.3G.It has the advantages of small volume, light weight, durable, high accuracy and sensitivity, low power consumption, high reliability and other excellent properties, can be used with multiple receivers, widely used in vehicle navigation dispatching, vehicle tracking and monitoring, measurement and control etc.
2. The main technical characteristics of antenna.
Our company shark fin antenna with low profile antenna design, the integrated design of GPS&AM/FM&3G/4G&WIFI&2.3G, the realization of GPS&AM/FM&4G&WIFI&2.3G satellite broadcasting share.
2High gain: gain up to 30dB.
High sensitivity: to solve the problem of weak signal in the car.
Optimum anti-jamming filtering performance
Stable performance, no loss of satellite
The positioning time is short, high precision
Excellent mechanical properties and manufacturing processes
Small in size and light in weight
High and low temperature resistance, corrosion resistance, good waterproof performance
Stable and reliable product quality
3. Appearance
| Size | 146.5x76.57x56.5mm | Mounting | screw fixing |
| Weight | 530gram | Connector | SMA/FAKRA |
| Color | Black | Cable | RG174 6meters |
4. GPS antenna characterritics
| NO | (Item) | (Specifications) |
| 1 | Operating Voltage Range | 1575.42MHz |
| 2 | Operating Voltage Range | 3-5.0VDC |
| 3 | Operating Current Range | 10-16mA |
| 4 | V.S.W.R(in Center Frequency) | <[email protected] |
| 5 | Amplifier Gain | 30±2dB |
| 6 | Noise limiter | ≤3 |
| 7 | Output Impedence | 50Ω |
5. AM/FM Antenna characteritics
| NO | (Item) | (Specifications) |
| 1 | Operating frequency | 530-1650KHz,88-108MHz |
| 2 | Operating Voltage | 12VDC |
| 3 | Operating Current | 40-50mA |
| 4 | Amplifier Gain | AM:-6~0dB |
| | | FM:12±3dB |
| 5 | Output impedance | 75Ω |
| 6 | Operating Temperature | -40ºC~+85ºC |
| 7 | storage Temperature | -40ºC~+90ºC |
6. 4G Antenna characteritics
| NO | (Item) | (Specifications) |
| 1 | Frequency | 700~960MHz
1710~2170MHz |
| 2 | Gain | 3dBi |
| 3 | V.S.W.R | <2.0:1 |
| 4 | Connector | SMA,SMA,SMB,MCX,FM |
| 5 | Outpot impedance | 50Ω |
7 WIFI Antenna charateristics
| NO | (Item) | (Specifications) |
| 1 | Frequency | 2400-2500MHz |
| 2 | Gain | 3dBi |
| 3 | V.S.W.R | <2.0:1 |
| 4 | Connector | SMA,SMB,MCX,FME |
| 5 | Outpot impedance | 50Ω |
8. DAB Antenna characteristics
| NO | (Item) | (Specifications) |
| 1 | Operating frequency | 170-230MHz |
| 2 | Operating Voltage | 12VDC |
| 3 | Operating Current | 30mA |
| 4 | Noise | <3dB |
| 5 | Gain | 20±3dB |
| 6 | V.S.W.R. | <2.0:1 |
| 7 | Connector | SMA |
| 8 | Output impedance | 50Ω |
9. Working Condition
Temperature:-40ºC~+80ºC
Humidity: 95%~100%
10. Storage Condition
Temperature:-45ºC~+85ºC
Humidity: 95%~100%
