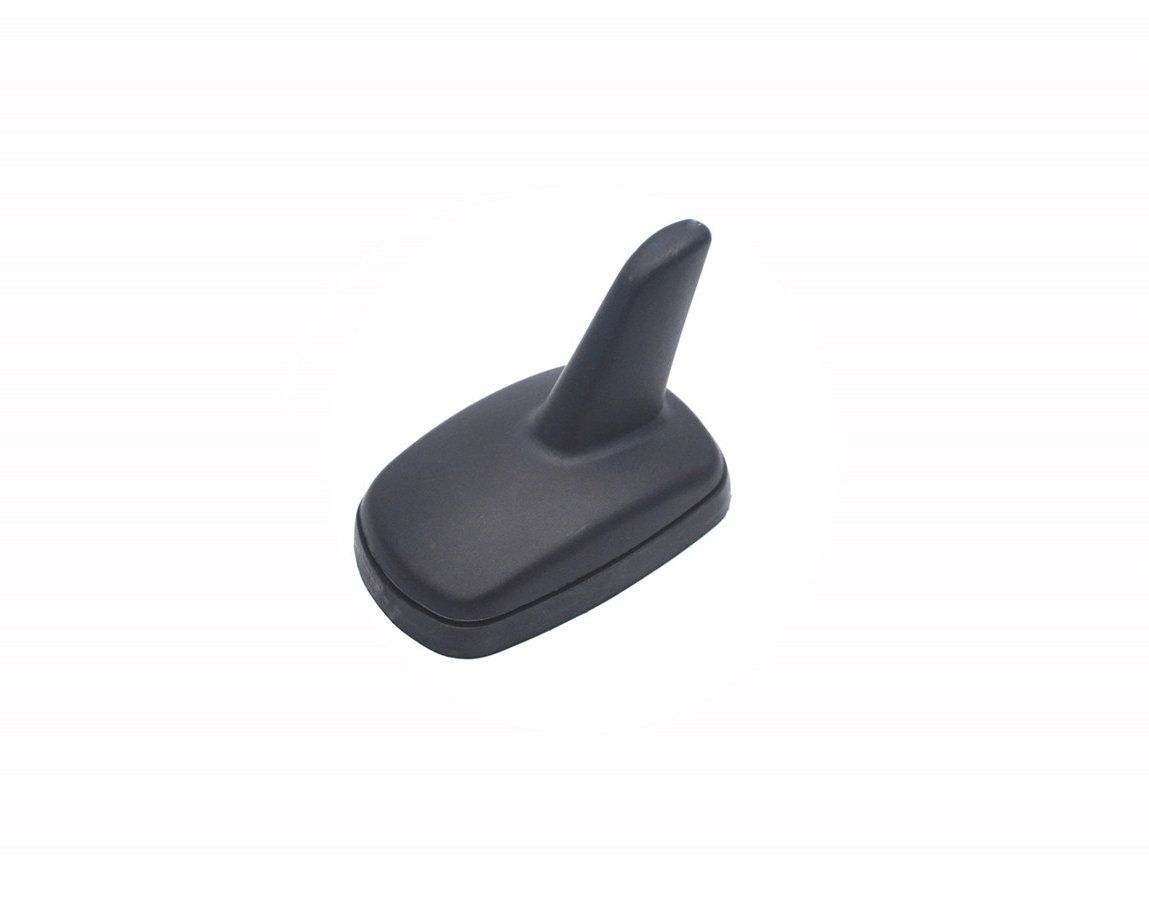

Shark Fin Type Costumized GPS Antenna with SMA Connector

Shark Fin Type Costumized GPS Antenna with SMA Connector
Price: Negotiable/Piece
Min Order: 50/Piece
Pay Type: T/T,Western Union,Paypal
Product Appearance
Size146.5×56.5mm/ 85*54*62mmMountingScrew
WeightgConnectorSMA
ColorBlackCableRG174

GPS antenna characteristics
NO.ItemSpecifications
1Operating Voltage Range1575.42MHz
2Operating Voltage Range3-5.0VDC
3Operating Current Range10-16mA
4V.S.W.R(in Center Frequency)<[email protected]
5Amplifier Gain30±2dB
6Noise limiter3
7Output Impedence50Ω

AM/FM Antenna characteristics
NOItemSpecifications
1Operating frequency530-1650KHz,88-108MHz
2Operating Voltage12VDC
3Operating Current40-50mA
4Amplifier GainAM:-6~0dB
FM:12±3dB
5Output impedance75Ω
6Operating Temperature-40ºC~+85ºC
7storage Temperature-40ºC~+90ºC

3G/4G Antenna characteristics
NOItemSpecifications
1Frequency700~960MHz 1710~2170MHz 2400~2800MHz
2Gain2dBi
3V.S.W.R<2.0:1
4ConnectorSMA,SMB,MCX,FME
5Output impedance50Ω

WIFI Antenna Characteristics
NOItemSpecifications
1Frequency2400-2500MHz
2Gain3dBi
3V.S.W.R<2.0:1
4ConnectorSMA,SMB,MCX,FME
5Output impedance50Ω

DAB Antenna Characteristics
NOItemSpecifications
1Operating frequency170-230MHz (Vary with different countries )
2Operating Voltage12VDC
3Operating Current30mA
4Noise<3dB
5Gain20±3dB
6V.S.W.R.<2.0:1
7ConnectorSMA
8Output impedance50Ω
Prod Model: DL-EX-026
Sample Time: 5-7 Days
Usage: Broadcasting Antenna
Operating Wavelength: Microwave
Material: Al
Directionality: Omnidirectional Antenna
VSWR: <=2.0
Shenzhen DeLin Communication Technology Co., Ltd. (formerly: Shenzhen Universe Communication Tech. Limited) is located in the beautiful coastal city--Shenzhen. Shenzhen is the leader of Chinese electronic technology, is also the world's electronic technology bridge. It has a unique geographical location and innovative spirit. DeLin Communication (parent company is Gaoke Zhong Shi Telecommunication Technology Co., Ltd. Which is established in 1993) is a professional high-tech enterprise which engaged in wireless mobile communications and satellite communication products development, production and sales. We have a group of pioneering, creative and experienced management personnel, more than 200 staffs, and 20% of them are bachelor and master's degree or higher.

The company's professional R & D team continues to introduce and R&D new products to connect with international market. Our company is committed to the design, development and production of wireless, satellite communication products. It is a professional enterprise of communication solution design and production. Our company focuses on development and production of antenna series, module series, application solutions, and application terminals. Our products are widely used in mobile phones, mobile base stations, automotive equipment, security, walkie-talkie, car networking, Internet of things, navigation, aviation, air-conditioning, detection and other wireless terminals and other fields. It so far has designed and manufactured for thousands of companies at home and abroad.

DeLin Communication Co., Ltd., as the marketing strategy management leader of parent company, bears the responsibility and performance, and also is the sales(agent) of well-known brands at home and abroad at the same time.
