Guangzhou Golden Electric Co., Ltd. >> Sheet Metal Distribution Box Cabinet Metal Wall Mounting Distribution Box

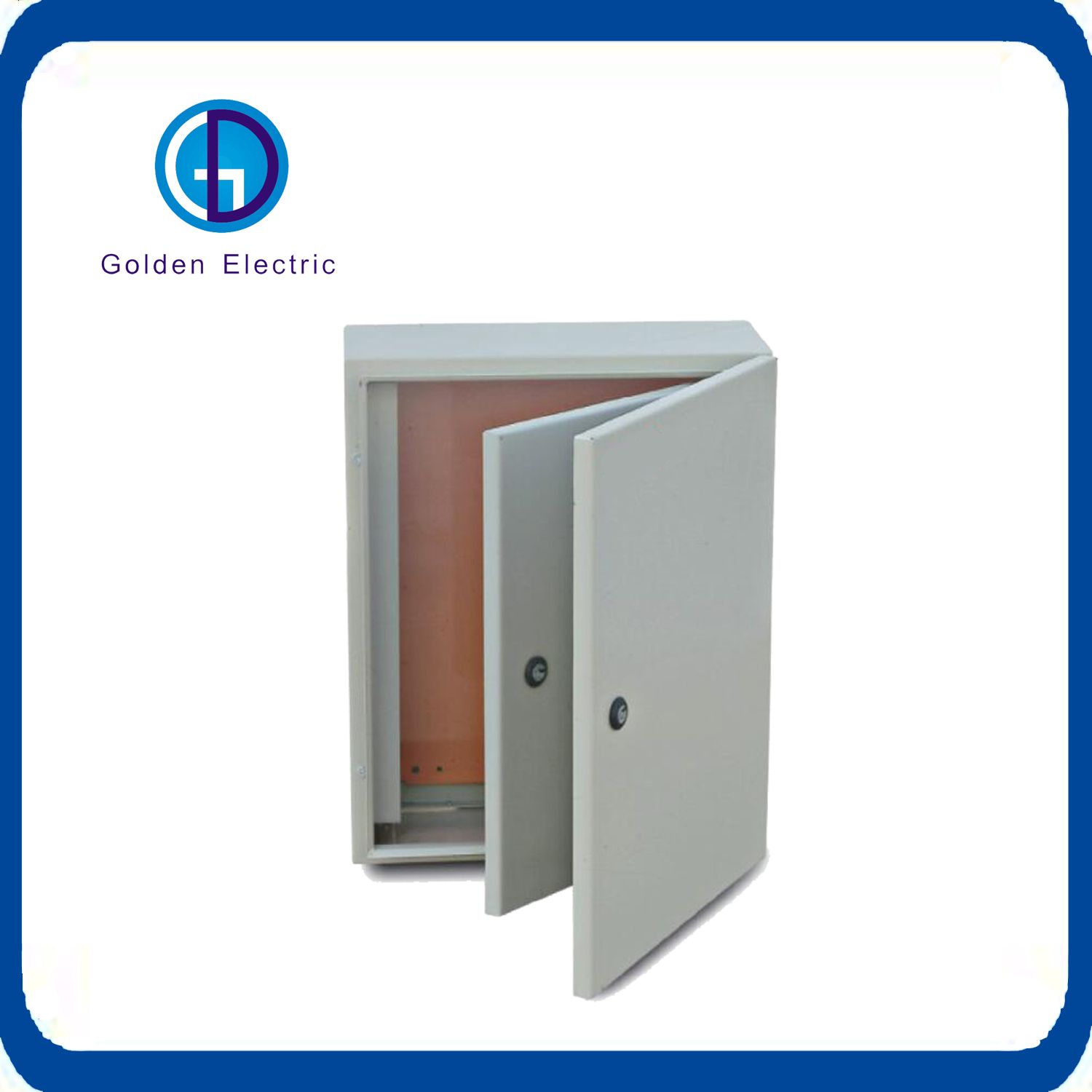

Sheet Metal Distribution Box Cabinet Metal Wall Mounting Distribution Box

Sheet Metal Distribution Box Cabinet Metal Wall Mounting Distribution Box
Price: US $ 0.1-50/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: GD
Color: Grey
Degreen Of Protection: IP66 to En60529
External Mechanical Impact Resistance: Ik10
Mounting Plate: Galvanized Steel or Plain Steel to Paint in Ral200
OEM: Available
Material And Color: Cold Roll Steel to Pain in Ral7032
Name: IP66 Wall Mounted Metal Box
Surface Treatment: Textrured Epoxy Polyester Powder Coating
Standard Configuration: Enclosure and Door, Mounting Plate, Bar Lock, Door
Customization Logo: Silkscreen
Type: Power
Structure: Protection
Application Range: Home Use and Outdoor Use
Size: 250*200*150
Brand: Golden/OEM
Shell Protection Grade: IP66
Shell Material: PC and ABS Fireproof

Product Description


Standard configuration:



Degree of protection:

IP66 Electric supplies metal box steel wall mounting enclosure box ip66 electrical panel box sizes

External mechanical impact resistance:

IK10, Electric supplies metal box steel wall mounting enclosure box ip66 electrical panel box sizes.

Surface treatmane:

Textrured epoxy polyester powder coating, Electric supplies metal box steel wall mounting enclosure box ip66 electrical panel box sizes.

Material and color:
Body and front door:cold roll steel to paint in RAL7032, Electric supplies metal box steel wall mounting enclosure box ip66 electrical panel box sizes.

Mounting plate:
Galvanized steel or plain steel to paint in RAL2004 smooth finish.

Model and size:
    ReferenceHeight(mm)Width(mm)Depth(mm)
GME-2020/150200200150
GME-3025/150300250150
GME-3025/200300250200
GME-33/150300300150
GME-33/200300300200
GME-34/200300400200
GME-43/150400300150
GME-43/200400300200
GME-44/200400400200
GME-46/250400600250
GME-46/300400600300
GME-54/150500400150
GME-54/200500400200
GME-54/250500400250
GME-55/250500500250
GME-64/150600400150
GME-64/200600400200
GME-64/250600400250
GME-65/150600500150
GME-65/200600500200
GME-65/250600500250
GME-66/250600600250
GME-66/300600600300
GME-68/300600800300
GME-75/200700500200
GME-75/250700500250
GME-86/200800600200
GME-86/250800600250
GME-86/300800600300
GME-86/400800600400
GME-88/200800800200
GME-88/300800800300
GME-810/3008001000300
GME-106/2501000600250
GME-106/3001000600300
GME-108/2501000800250
GME-108/3001000800300
GME-108/4001000800400
GME-1010/30010001000300
GME-1012/30010001200300
GME-128/3001200800300
GME-128/4001200800400
GME-1210/30012001000300

Other sizes avaliable on request .Cut-outs and drilled holes to your specifications.
Should you have any questions or problems, please send e-mail,call us or talk with us by Skype

Other distribution box we produce:






Q&A
1)Q:How can i trust your company?

A:Golden electric is
The top 10 distribution box manufacture in China - more than 350 Agents in local market and more than 100 foreign  clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
     A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
3)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
4)  Q:   Your address ?
      A:    Locates in Guangzhou province, China,welcome to visit us
5)  Q:What's the distribution box guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
6)  Q:What's about MOQ? Delivery time ?
      A: 1pcs for distribution box. Normally less than 1000pcs with stock, quick support.
7)  Q: What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.
PAYPAL,WESTERN UNION,CASH for small order .
8)   Q:What's your contact information ?
Weclome send inquiry to us !we will reply you in 24hours !
ABOUT US

Guangzhou Golden Electric Co. Ltd started manufacturing of Automatic transfer switch, Circuit breaker Distribution box, in the year 2006 with a strong team of Automatic transfer switch, Circuit breaker and Distribution box background.

Guangzhou Golden Electric Co. Ltd offer customers complete low voltage system is one its key item on which the company has achieved a mile-stone on quality. Due to this the company has earned a good faith from more than thousands of Private entreprenour and Government policy maker. Eventualy the company started manufacturing of Solar DC product and keeping good example in China and become the first one of company to making solar new energy product. Now we have 2 big factory for manufacturing PV System and Low-voltage Electrical Product, Circuit Breaker, Contactor, Isolator Switch, Combiner Box, Automatic Transfer Switch. The factory is one of the largest independent manufacturing unit for manufacturing of high-quality, custom solutions for power systems for big or small Industrial units, Commercial complexes and Government ultilities.

MISSION

To be top in the power electric and PV system sector with the very positive power of people.

VISSON

To create quality power products with world class accuracy and to provide round the clock services to the clients in a very competitive price.

SPIRIT-Ten Spirits of Golden Electric

• Working hard and aiming high.

• Serving and devoting to through Customers.

• Working with unity and solidarity.

• Co-operation in a friendly way with colleagues and clients.

• Developing through reforms.

• Seeking truth from facts.

• Depending upon fairness and honour.

• Always abiding by laws and regulations.

• Making contribution to the nation by developing industry.

• "Raise voice of customer".

PHYLOSOPHY

The management philosophy of the Guangzhou Golden Electric Co. Ltd is "to produce high-quality Engineering that create a positive impression and satisfy customer by applying the local technologies we have developed throughout our history with the aim of contribution to a more affluent way of life". Taking advantage of our Engineering expertise thus acquired, Golden Electric will continue to create impact and offer satisfaction in markets;

6 H VALUE OF GOLDEN ELECTRIC

1. HONESTY WITH SELF AND OTHERS: This is neither be taught nor bought. Honesty is to be practiced by oneself and in born. GOLDEN ELECTRIC will always remain honest with all stakeholders and built-up a trust worthily honest relation with customers.

2. HARD WORK FOR PROFIT: We believe that there is no short cut to success. We are ready to give SWEAT and BLOOD and will never look at any work as too low to be done by us. So that company works through hard work, Determine nation and intelligence.

3. HUMILITY IN DEALING: Humility means being courteous and polite in own conversations with all people within and outside the company. We pay our attention with all people including customers, suppliers, family, friends, colleagues, junior and superior every one we came in contact within are lives in great sincerity.

4. HUMANITARIAN APPROACH: We remember that all people working with us are human beings just like us and have feeling; Aspiration and therefore we should treat them humanely with respect. Never disrespect another person and even if you do say "Sorry", it cost nothing to use.

5. HAPPY OUTLOOK TO LIFE: This means positive out-look to life. No problem is so big that we can not climb it. Our corporate approach is so united that will help you to have happy and satisfying life rather than any depression or devil.

6. HELPFUL NATURE TOWARDS ALL: The pleasure of helping another person, in whatever small way can only be experienced and can not be written about.
