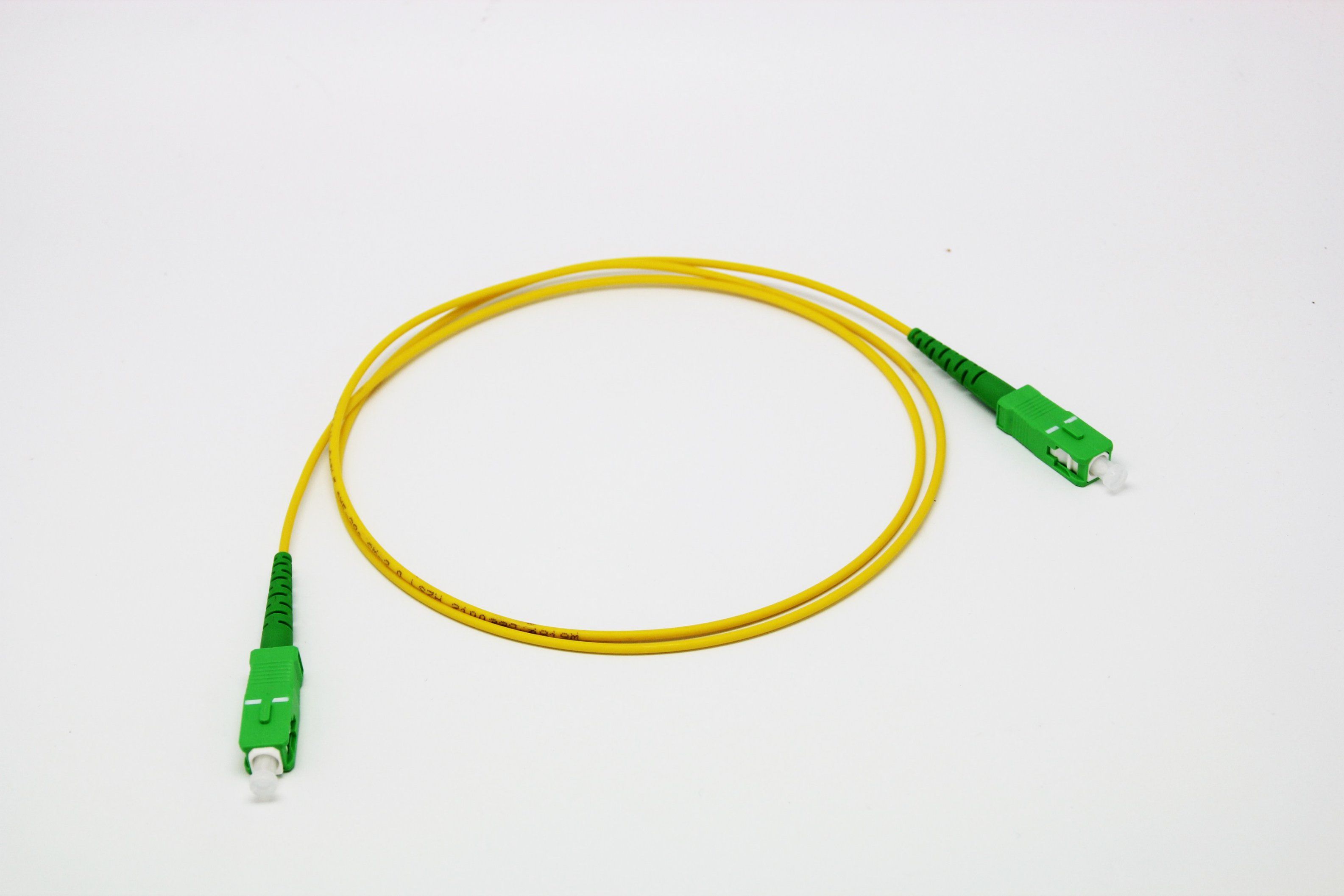

Shenzhen Manufacturer Competitive Sc/Upc Fiber Optic Cable Patch Cord
| Price: |
US $ 1.7-2/Piece |
| Trade Terms: |
FOB,CIF,CIP |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SC/UPC fiber optic cable Patch cord |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Singlemode Duplex Lszh: |
2.0mm / 3.0mm/ 0.9mm |
| Cable Jacket: |
PVC, Lszh, Ofnr, Ofnp, PE |
| Connector Type: |
Sc,LC,FC,St,Mu,MTRJ,MPO,MTP |
| Cable Color: |
Blue,Green,Aqua,Red,Magenta,Beige |
| Housing Material: |
Plastic,Metal |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC-SC |
| Certification: |
ISO9001 |
| Brand: |
Koc |
Product Description
APPLICATIONS CATV Telecommunication networks Active device termination Metro Local Area Networks (LANs) Data processing networks Test equipment Premise installations Wide Area Networks (WANs)AVAILABILITY Simplex/Duplex patch-cord available Fan-out available Pigtail available Various boot (cable) sizes availableFEATURES Low insertion loss and back reflection loss Good exchangeability Good Durability High temperature stability Standard: Telcordia GR-326-CORE
Price is for SC-SC singlemode simplex 5meter only.Specifications| | single mode | multimode |
| Insertion Loss | Typical≤0.2dB, Maximuml≤0.3dB | ≤0.25dB |
| Retrun Loss | ≥50dB ( PC)
≥65dB ( APC) | |
| Repeatability | ≤0.1 | |
| Durability | ≤0.2dB typical change, 1000 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N |
|
| Operating Temperature | -40 to + 85ºC | -40 to + 85ºC |
Ordering Options
| Connector Color | Boot (cable) Size | Boot Color | Fiber Type | Cable Number | Application | Length |
| Beige | 0.9mm | Beige | 9/125μm(SM) | Simplex | PC | Customized |
| Blue | 2.0mm | Black | 50/125μm(MM) | Duplex | APC | |
| Green | 3.0mm | Blue | 62.5/125μm(MM) | Fan-out(4f) | | |
| | | Green | | Fan-out(6f) | | |
| | | Gray | | Fan-out(8f) | | |
| | | Red | | Fan-out(12f) | | |
| | | White | | | | |
Company inforamtion
KOC Group consists of a number of companies specialized in manufacturing and selling fiber optic communication products, offering various worldwide solutions for telecommunication, broadcast, CATV and network industry.

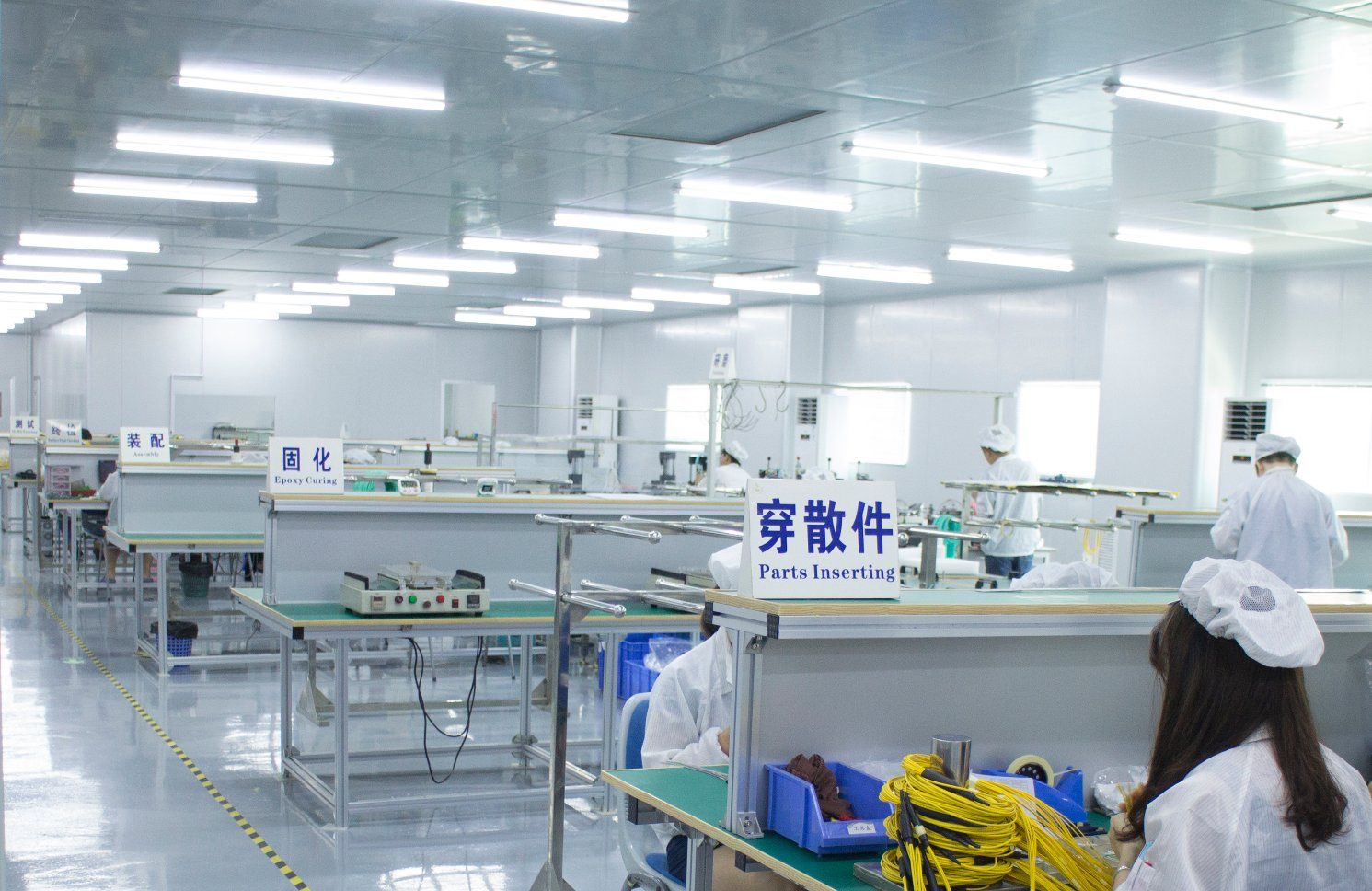

Company Photo

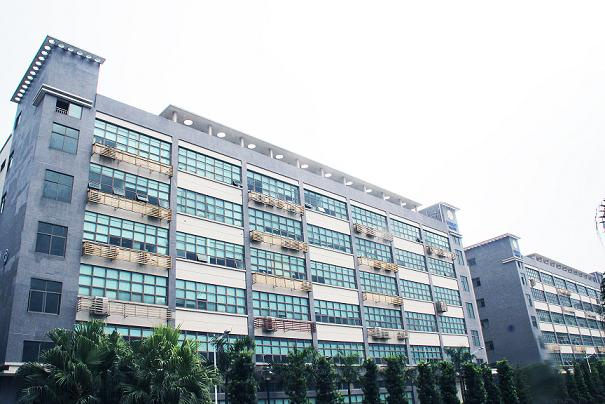

Company Photo
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
About KOC
Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.
Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!
To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.
To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.
Please visit us website for more information: http://www.koc.com.cn
