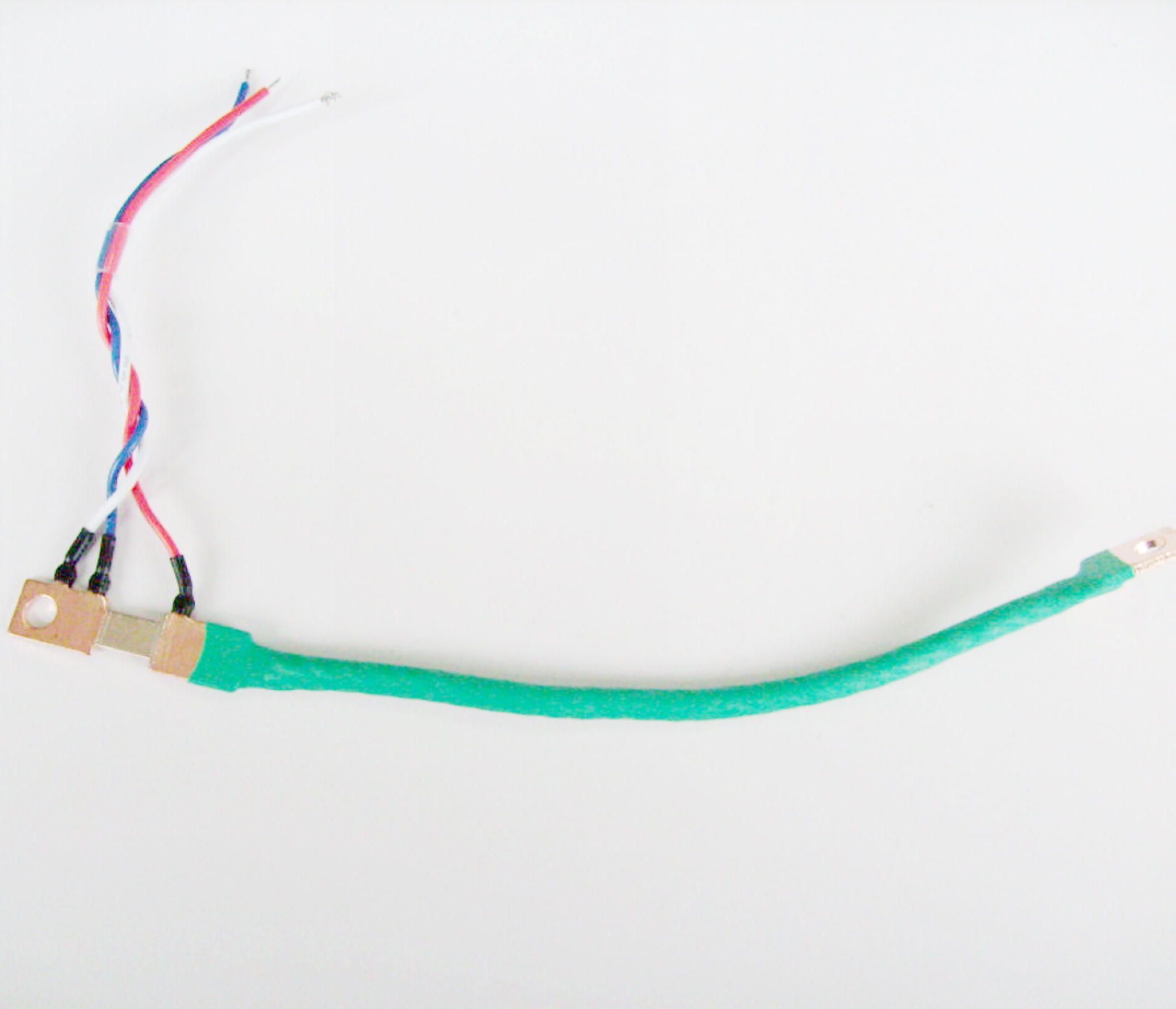

Shunt Sensor for Watt-Hour Meter 150 Micro Ohm

Name: Shunt Sensor for Watt-Hour Meter 150 Micro Ohm
Brand: all-electronics-online.com
SKU: 681069335
Availability: InStock
Rating: 4.6 (111 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

SHUNT is precision element for the energy meter, adopts the advance technical of plane jointing.

Useage: Work in all kinds of electrical meter as power measurer
Strength:
1. Good material, sampling resistance precision and stable.
2. Various type.
3. Good service: Make according to customer requirement.
Product Description
1. Material: 6J13 manganin and pure copper (reach the GB614599 F2 standard)
2. Welding mode: Electric beam welding shunt.
3. Resistance value tolerance: ± 5%
4. Shunt type: The shunt should be mountable type with holes for screw fixing
5. Termination: Integrated lead wires are available
6. Temperature: Independent from temperature variation with low TCR value,
7. Characteristics: TC < 50PPM/K
8. Aging: 10 hours under 120 deg.
9. Power loss: <50 mill watt
Customized designs are available against customer's drawings/samples.

Prod Model:	WJ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resistance:	Fixed Resistor
Function For Resistance:	Sampling Resistor
Installation:	DIP Resistor
Material:	Metal Film Resistor
Package Type:	Surface Mount
Type:	Manganin Shunt
Application:	Electric Meter
Brand:	Weijia

Haiyan Weijia Electric Technology Co., Ltd. is a professional large-scale manufacture of all types of electric shunt, integrating development and production together. Our main products include shunt, current shunt, brass shunt, relay, magnetic latching relays, current transformer, testing equipment, transformer cable, electro-optical samplers and related products. Our company was established in 2008, and we have many years of history in the shunt industry. Located near Ningbo, Shanghai, we enjoy convenient water, land and air transportation.

Currently, our product already exported to Russia, India European and other Western countries and regions. Our company has always focused on research, development and innovation, and has obtain some patent in the shunt field. In 2009, we attained ISO9001: 2008 Quality Management System Certification Certificate.

Our company continues to introduce new products to meet different needs, with high-quality products, reasonable prices, and good after service, we hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
