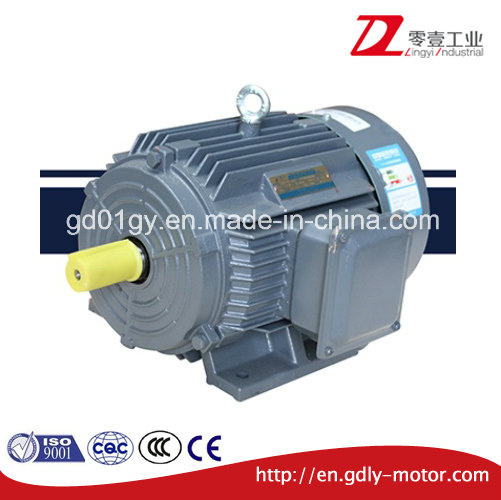

Siemens Beide High Efficiency Three Phase Asynchronous Electrical Motor
Price: |
US $ 58-5000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
(SIEMENS) Beide Motor
Motor Summary Frame size | 80- 355 |
Pole | 2-8 |
Rated voltage | 220/380V, 380/660V |
Frequency | 50Hz/60Hz |
Power | 0.55kw-315Kw |
Protection degree | IP55 |
Cooling method | IC411 |
Insulation class | F |
Ambient Temperature | -20°C~40°C |
Altitude | not exceed 1000 Meter |
Working Duty | S1(Continuous) |
Overview1TL0001 series of high efficiency 3 phase asynchronous motors (1TL0001 series motor)
with cast iron housing is Totally Enclosed Fan Cooled (TEFC)
with IP55 environmental protection,
and applicable for general purpose use.
These motors are designed and manufactured in accordance with ISO, IEC standards, GB standards.
By switching to 1TL0001 series motor, customer can save energy up to 10 %!
Features of 1TL0001 series Siemens Beide motor- Frame material: grey cast iron.
- Standard color: stone grey (RAL 7030)
- Available in 2, 4, 6 pole motor (0.75kW and up) with efficiency grade 3. according to GB18613-2012 and efficiency class IE2.
- Optimized compact style construction.
- Standard mounting construction according to IEC 60034-7: IM B3, IM B5, IM B35 and etc.
- All motors are designed to IP55 degree of protection (IEC 60034-5).
- Regreasing devices for FS280~355 as standard,and for FS100~250 as option.
- Reinforced bearings for increased cantilever forces for FS100 ~ 355 as option.
- Winding protections with PTC, PT100 and KTY84-130 as option.
- Insulation system is designed for temperature class 155 (F). At rated output with line-fed operation, the motors can be used in temperature class 130 (B).
Environmental Degrees of motor protection IP55 (IEC 60034-5). |
Altitude shall not exceed 1000m above sea-level (IEC 60034-1). |
Allowed air temperature between -20 ºC and 40 ºC (IEC 60034-1). |
Permitted relative humidity: | |
-20 ºC ≤ T ≤ 20 ºC:100 % | |
20 ºC < T ≤ 30 ºC:95 % | |
30 ºC < T ≤ 40 ºC:55 % | |
Tips:Bearing life time (nominal lifetime)The bearing lifetime of motors with horizontal type of construction is at least 40,000 hours if there is no additional axial loading at the coupling output and at least 20,000 hours with the maximum admissible loads. This assumes that the motor is operated at 50Hz.
When the motor runs outside of normal conditions, the bearing life will be reduced, such as the following conditions.- When 1TL0001 motor runs beyond the rated speed, the
increase of motor vibration will result in the extra radial and axial force on bearing. This will reduce the life of bearing;
- When the motor vibration increase due to the environment or
other equipment, the bearing also will endure more radial and axial force. This also will reduce the life of bearing;
- If the coolant temperature is increased by 10 ºC, the grease lifetime and regreasing interval is halved.
Application fields: machine tools, water pump, blower, compressor, and transportation, print, agriculture, food and more industries.FAQQ: What is your MOQ of this item?
A: 5PCS.
For the first time cooperation, we accept trial sample order.
Q: What's your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
Q: What's the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
Q: Can we used our own brand on motors ?
A: Sure, we can offer OEM service,
manufacture with your authorized brand.CertificateOffice Block Team
Prod Model: |
1TL0001 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frame Size: |
90-355 |
Efficiency Class: |
Ie3 (IEC 60034-30) |
Material: |
Cast Iron |
Color: |
Blue (as Customers Required) |
Application: |
Universal |
Operating Speed: |
Constant Speed |
Number Of Stator: |
Three-Phase |
Rotor Structure: |
Squirrel-Cage |
Casing Protection: |
Closed Type |
Starting Mode: |
Direct on-line Starting |
Species: |
Ie3 |
Certification: |
CE |
Brand: |
TF |
Guangdong Lingyi Industrial Technology Co., Ltd set up since 1997, with 20 years development, we become one of the best companies in the industry for mechanical and electrical products system integration, logistics service and investment. The company has set up 21 subsidiaries located in southern, central, eastern and northern China, .
The products categories include:
1, Transmission Products: High and low voltage electric motors, geared motors, gear boxes, bearings, inverter and complete electrical cabinets
2, Automation Products: Automation systems, motion control, low voltage control products and systems, sensor and communication products,
3, Power distribution Products: Low-voltage power distribution products, medium voltage circuit breaker, intelligent building system and equipment.
4, Machinery components.
Count on our 20 years industry experiences. Guangdong Lingyi Industrial Technology Co., Ltd give you one-stop industrial products sourcing, procurement, system integration and services, satisfy your different needs in the industry.
We are looking forward to cooperating with you.
