| Prod Model: |
HB-9500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Digital Sensor, Digital Sensor~@ |
| Usage: |
Pressure Sensitive Sensor |
Product Description

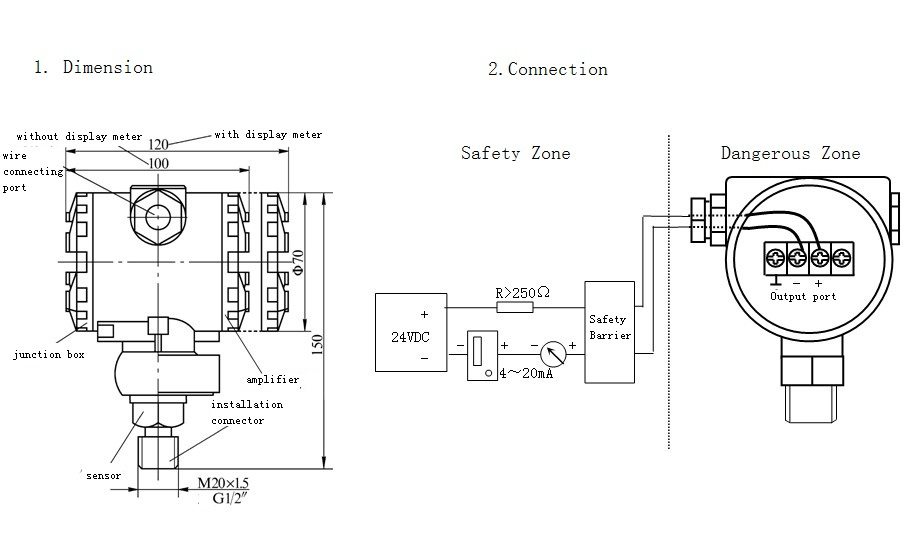

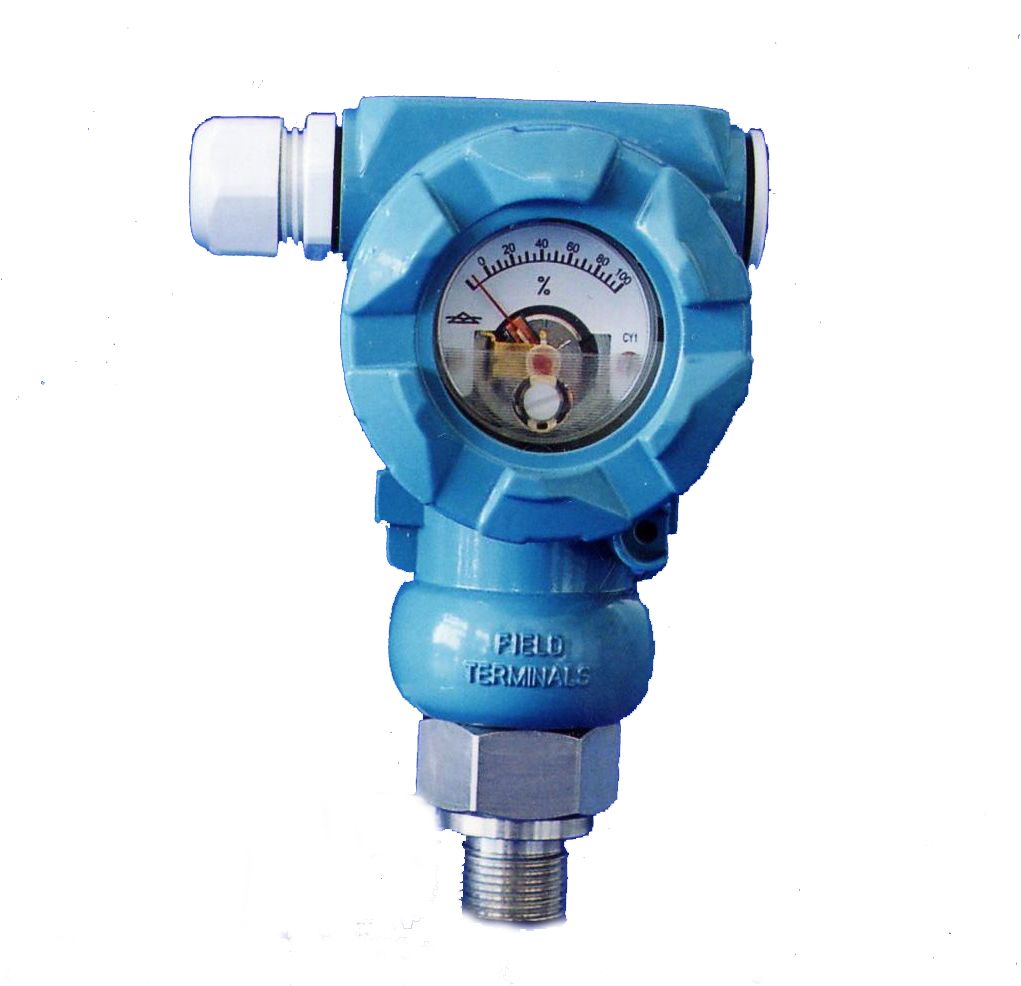

HB9500 series transmitters are adopt silicon diffusion sensor, ceramic piezoresistive sensor or ceramic capacitive sensor, using varistors piezoresistive effect and Wheatstone bridge principle and pressure change capacitive principle to achieve accurate measurement of pressure. A special signal processing circuit is employed in this pressure transmitter which achieve the standard siganl output. The features of transmitter are high stability and accuracy, especially the strong anti-corrosion ability of its inside ceramic piezoresistive sensor and ceramic capacitive sensor. The transmitter is widely applied in industry process control field for pressure and level of liquid, gas and steam measuring.
Specifications
Pressure Range: 0 - 60 MPa
Output: 4 - 20mA(DC); HART
Accuracy: ± 0.2%F. S.; ± 0.5%F. S.
Insulation Resistance: 0 - 600Ω
Overload: 1.5 time of nominal range
Stability: ≤ Transmitter's accuracy within one year
Explosion-proof Type: ExiaIIBT6
Shell Material: Die cast aluminum
Signal Wire Hole: PG16
Power Supply: 24 VDC
Working Temperature: -30 - 80º C
Relative Humidity: 0 - 95%RH
Protection: IP65
Weight: 0.85 kg
| HB9500 | Pressure Transmitter |
| | Code | Sensor Type |
| | S | silicon diffusion |
| | C1 | ceramic piezoresistive |
| | C2 | ceramic capacitive |
| | Code | Measueing Pressure Type |
| | G | gauge pressure |
| | A | absolute pressure |
| | Code | Pressure Range |
| | -101 | -100KPa - 0 |
| | 100 | 0 - 10KPa |
| | 500 | 0 - 50KPa |
| | 101 | 0 - 100KPa |
| | 501 | 0 - 500KPa |
| | 102 | 0 - 1MPa |
| | 252 | 0 - 2.5MPa |
| | 502 | 0 - 5MPa |
| | 103 | 0 - 10MPa |
| | 603 | 0 - 60MPa |
| | Code | Output |
| | E | 2 wires 4 - 20mA(DC) |
| | S | HART |
| | Code | Dispaly |
| | N | without display meter |
| | L | digital display meter |
| | Z | analog pointer display meter |
| | Code | Connection (pressure port side) |
| | M1 | M20*1.5 male |
| | G1 | G1/2" male |
| | F | flange connecting |
| | Code | Sturcture |
| | P1 | waterproof |
| | P2 | anti-corrosion |
| | Code | Medium Temperature |
| | T1 | -20 - 60ºC |
| | T2 | -30 - 80ºC |
| | T6 | 0 - 150ºC |
| | T8 | 0 - 300ºC |
