| Prod Model: |
BM300 |
| Working Temperature: |
-60-+250 Deg C |
| Dimension(L*W*H): |
Customized |
| Max. Power Density: |
5 W/Sq Cm Depending on Application |
| Resistance Tolerance: |
About +/- 5% |
| Voltage: |
1.5V--800V |
| Length Of Cord: |
1 Meter |
| Power Source: |
Electric |
| Flammability: |
Flame Retardant |
| Thickness: |
1.5-4 mm |
| Power(W): |
0.3W/Cm2 |
Product Description

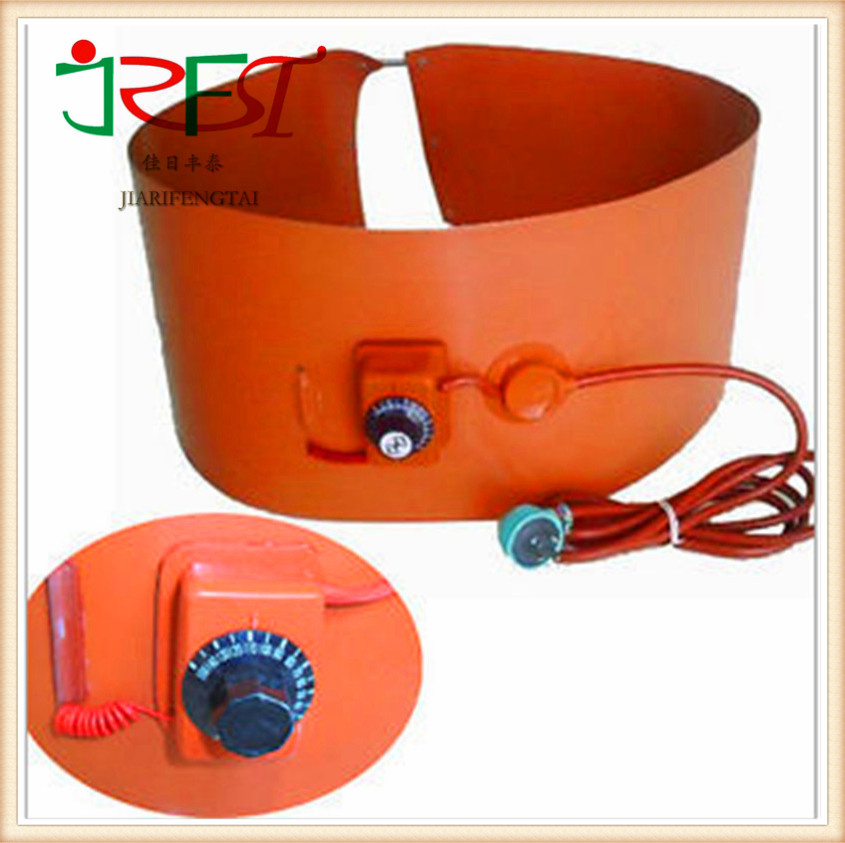

Silicone Band Heater With Cable Stainless Steel Heating Element 300w
Product Description
Customized Size / Voltage / Watt / Shape
Free Design
Specifications for Silicone Rubber Heater
| Temperature Rating | 250°C maximum operating |
| Size/Shape Limitations | Min size 20mm*20mm |
| Thickness | ~0.06 inch(Single-Ply)~0.12 inch(Dual-Ply) |
| Voltage | Any AC or DC |
| Wattage | Customer specified(Normal maximum of 0.8-1 watts per square mm) |
| Power lead wire | Silicone rubber, SJ Power Cord, or Teflon insulated stranded wire |
| Attachment | Hooks, lacing eyelets, Or Velcro closure. Temperature control(Thermostat) |
Description | 1. Thinness, lightness, sticky and flexibility
2. Improve heat transfer, accelerate warming and decrease power under the process of operation
3. Heat fast and high thermal conversion efficiency |
Features for 48v Silicone Heating Element
(1) Heating fast and long time using
(2) Flexible and customization
(3) Waterproof and non-toxic(Waterproof grad:IP68) |
Structure for 48v Silicone Heating Element
48v Silicone Heating Element can be made with etched foil heating elements and wire wound heating elements.
Features for 48v Silicone Heating Element
Dual Voltage, Zoning and Three Phase
Due to the flexibility in circuit design of 48v Silicone Heating Element, multiple heating circuits can be designed to accommodate dual voltage and multiple zones. On dual voltage heaters, three leads, including a common in a different color, are provided for wiring the heater in series for the higher voltage and parallel for the lower voltage. 120/240 Vac or 240/480 Vac can be achieved. Multiple circuit areas can be zoned to achieve different heating effects. Three-phase circuits can also be designed for high current applications.
Main applications:
1) Thermal transfer equipment;
2) Composite bonding processes
3) Airplane engine heaters and aerospace industry
4) Drums and other vessels and viscosity control and asphalt storage
5) Curing of plastic laminates
6) Computer peripherals such as laser printers, duplicating machines
Contact Information :
We can make many specifications according to your requests.
Free samples are available , for more information , pls kindly let me .
