| Prod Model: |
NU-SLEEVE SG-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flame Propagation: |
8 Sec |
| Size: |
From 1mm to 50mm |
| Low Temperature: |
-50c |
| Application: |
Switch Baseplate |
| Type: |
Insulation Sleeve |
| Chemistry: |
Hybrid Insulation |
| Material: |
Fiberglass |
| Thermal Rating: |
200 200 |
| Maximum Voltage: |
<10KV |
| Brand: |
Hong Tai |
Product Description
SILICONE RUBBER COATED BRAIDED FIBERGLASS SLEEVING
· Class "R" Insulation rated to 200°C.
· Grade A (7000V) UL & CSA Recognized-
UL File #E467660,
· Grade B (4000V) VW-1 Flame Retardant -
· Applicable Specifications:
o NEMA TF-1 Type 5
o UL 1441 VW-1
o FMVSS 302
o SAE ARP 1536 Abrasion Test
o MIL-I-3190/6, QPL-3190:
Grade A (8000V)
· RoHS and WEEE compliant.
· Low Temperature Brittle Point Below -70°C
· Available Sizes: AWG #24 - 1 1/2"
· Packaging: Standard Spools, Bulk Spools, Cut to length (½" diameter and
under).

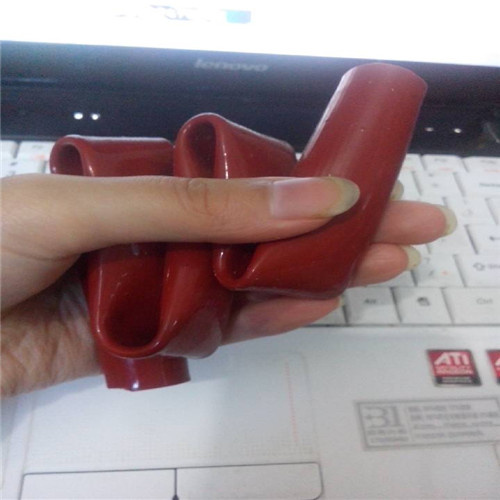

· Colors: White, Black, Natural, Red Iron Oxide are standard. Other available
colors are subject to factory quotation upon request.

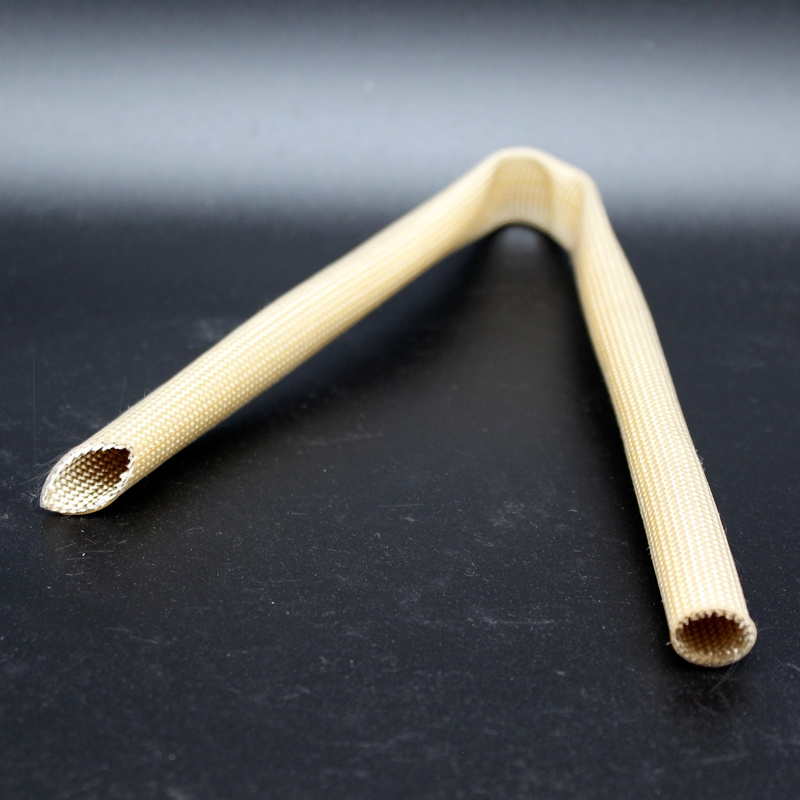

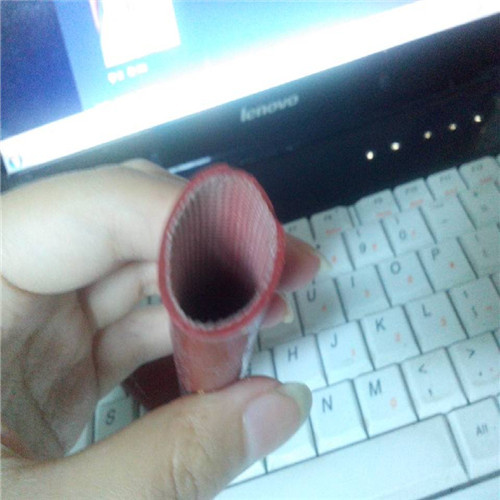

NU-SLEEVE SG-200 is a standard wall (NEMA TF-1, Table 3-1) coated
fiberglass sleeving made by applying a liquid silicone rubber to a fully annealed
fiberglass substrate. It is extremely resistant to abrasion, offers better coating
adhesion to the fiberglass compared to extruded rubber sleevings and has a high
heat/flex capacity. It is highly resistant to end fray and coating fracture, even
when stretched over rectangular conductors or wires larger than the normal
maximum inside diameter, making it an ideal choice for high stress applications
over a wide temperature range from -55°C to +200°C.
NU-SLEEVE SG-200 is highly resistant to inorganic acids and alkalis.
Chlorinated organic solvents and aromatic hydrocarbons will cause some
swelling and subsequent reduction in Tensile strength. Testing with ASTM #1 Oil,
a slight swelling was produced, while IRM #903 Oil will produce a higher volume
increase of up to 40%.NU-SLEEVE SG-200 is used extensively in high temperature applications where
one or more of the following features are required: flexibility, expandability,
abrasion resistance, cut-through resistance and chemical resistance. It finds

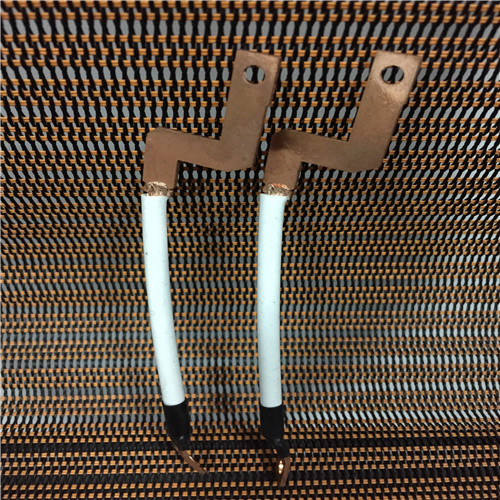

application in terminal and lead insulation and protection, wire harness protection
in extreme environments as well as high current dry transformers. It may also be
stacked to obtain higher dielectric voltage ratings.
NEMA Jenisco Markel Hygrade Min. Average Min. Individual
Grades Spec. Spec. Breakdown Breakdown
SG-200 A ER565 SR-398A 7000V 5000V
SG-200 B ER564 SR-398B 4000V 2500V
SG-200 C ER563 SR-398C 2500V 1500V
Notes: 1) For Grade B (4000V) substitute ER564 and for Grade C (2500V) substitute ER563 for ER565
Grade A (7000V) shown in the above part number.
2) X in the part numbers listing used to designate color. B=Black, N=Natural, RO=Red Oxide,
W=White. Consult the factory for availability of other colors.
Size:| Inside Diameter | Tolerance on Diameter | Wall thickness2753.1500V C2 | Wall thickness2753.2500V C1 | Wall thickness2753. 4000V B | Wall thickness2753.7000V A |
| 0.5 to 3.5 | +0.3-0 | 0.32±0.12 | 0.36±0.15 | 0.45±0.15 | 0.50±0.15 |
| 4.0 to 9.0 | 0.45±0.15 | 0.46±0.15 | 0.48±0.15 | 0.53±0.15 |
| 10 to 12 | +0.5-0 | 0.50±0.20 | 0.52±0.20 | 0.58±0.20 | 0.58±0.20 |
| 14 to 16 | 0.68±0.20 |
| 18 to 30 | +0.8-0 | 0.70±0.25 | 0.72±0.25 | 0.78±0.25 | 1.20±0.30 |
Main properties:| Properties | Results |
| After heating | No cracking or detachment of the coating after 8 hours at 220ºC. |
| Low temperature | No cracking or detachment of the coating after 60 minutes at -50ºC. |
| Flame propagation | Max 10 sec(According to UL VW-1). |
Thermal Class: Grade H(200ºC-30ºC) random peaks of 225ºC.Breakdown voltage: According to UL 1441 VW-1.Packaging: from mm.0.5 up to mm.4 200 meters rolls; from mm.5 up to mm.16 100 meters rolls; from mm.18 up to mm.30 50 meters rolls;Colour:Black. (other colours on request)
Anji Hongtai Insulation Co., Ltd. Specializes in manufacturing insulation braiding sleeving with the production capacity of 5 containers monthly. We have 3, 000 sets of braiding machines and 4 coating product lines.
Our main products are fiberglass sleeving coated silicone rubber and other products including acrylic fiberglass sleeving, PU fiberglass sleeving, HT fiberglass sleeving, heat & flame resistant braided fiberglass sleeve, ceramic-fiber sleeving, carbon fiber sleeving, basaltic fiber sleeving and fire sleeve. Our products are mainly exported to Occident and Southeast Asian developed countries, such as Japan. Our company has been experienced in export for ages.
Now our company has passed the evaluation of the USA BQR ISO9001: 2000 International Quality System Certification and the USA production safety authentication (UL NO.: E467660), and we have also obtained SGS' CTS and PFOS certifications.
We are ABB, GE, HANSAFLEX Packer's gold Supplier.
We have export fiber glass sleeving and fire sleeve Europe and USA 18 years.
