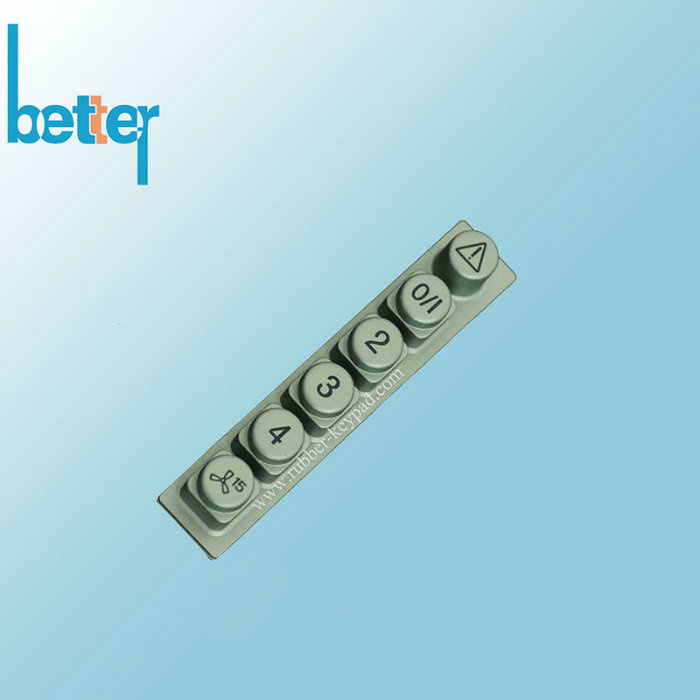

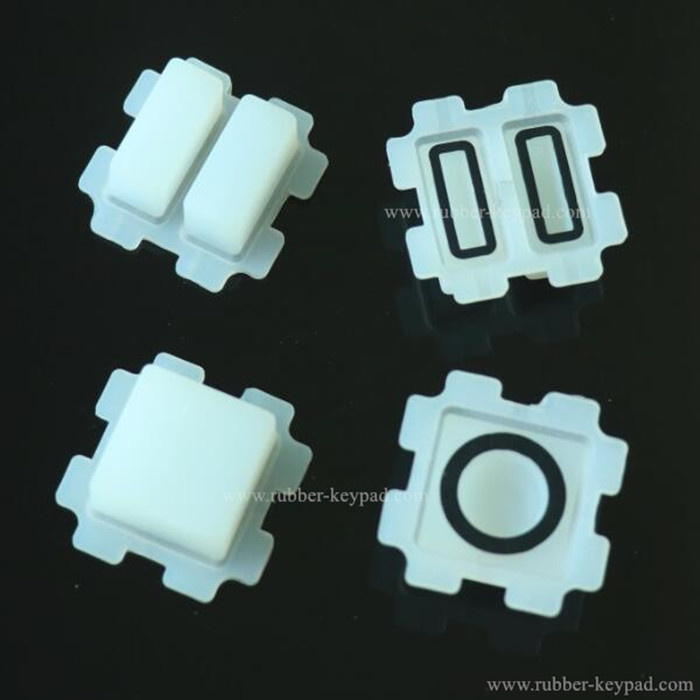

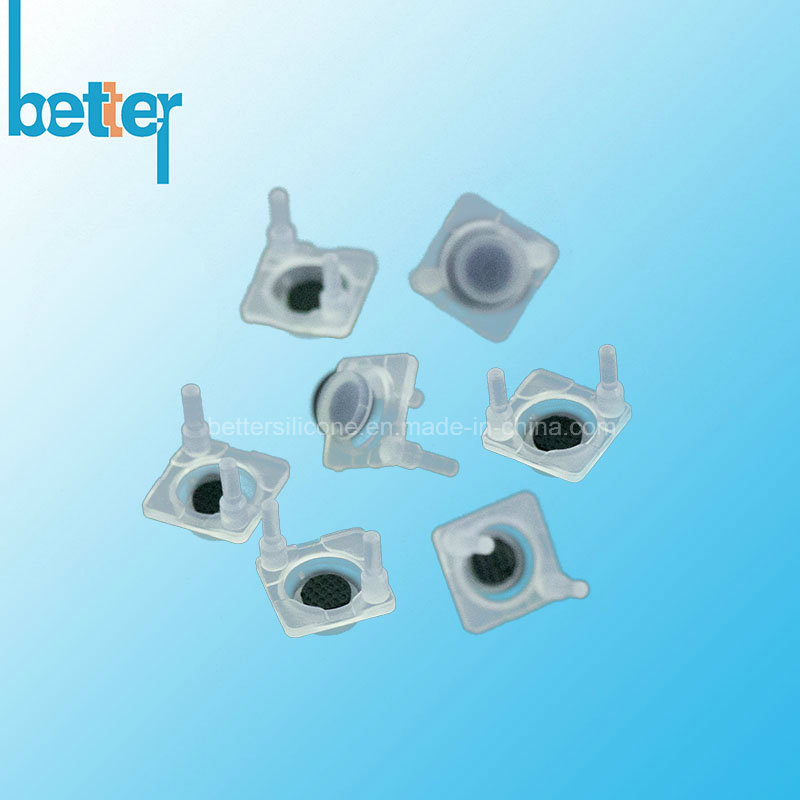

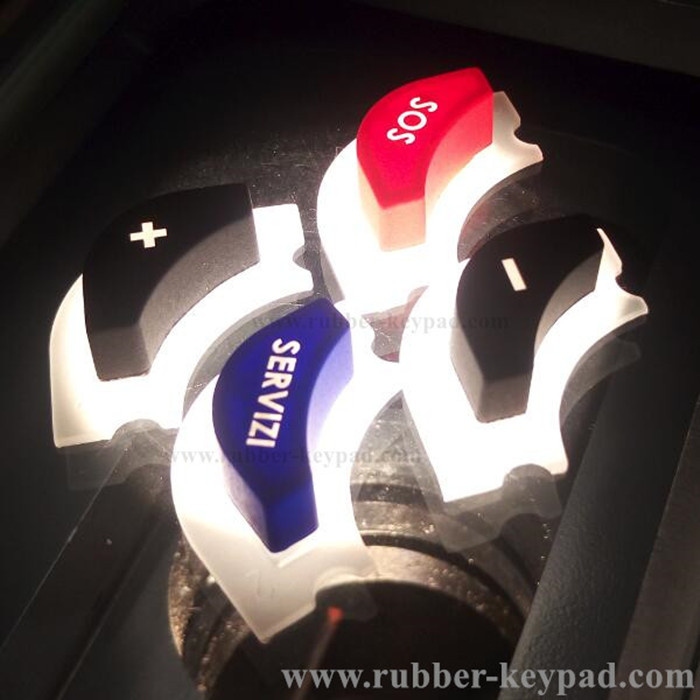

Rubber Button
Rubber Button, is known as Push Button and Single Button, which is made of transparent silicone rubber material by compression mold tooling. Rubber buttons are widely used in industrial electronic products, medical products, consumer products as push button switches.
Rubber Button has excellent heat resistance property, cold tolerance, environmental resistance, electric insulation property and fatigue resistance property.

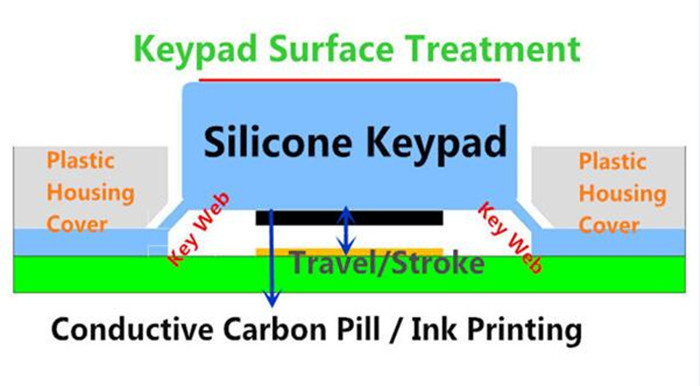

Rubber Button is similar as silicone keypad, which has button & key web, key top, button cover, contact zone (carbon pill or conductive printing), button surface legends and surface protection, etc.
Rubber Button design and production not only need think about structure actuation force, button travel, contact, but also need take button surface demands, button material, hardness difference and mutual influence into consideration.
Rubber Button designs are not always the same, some of them designed as silicone keyboard cover, which is only for rubber button decoration or rubber buttons protection. Therefore, it doesn't have contacts, known as keycap & button cover.
Rubber Button Quotation Demands:
1. Offer Silicone Button 2D/3D Design drawings, Samples
2. Button Surface Demands: Legends Demands, Key & Button Color Demands, SprayColor Coating, Key-Setting
3. Button Protective Coating: PU Coating, Epoxy Coating, Matte Smooth, Plastic & Metal Keycap (Key Cover)
4. Button Contact Demands: Carbon Pills, Electrically Conductive Ink Prining, Metal Dome, (Or only need Silicone Rubber Switches Cover.)
4. Contact Resistance Demands: 1-250 Ohm
5. Silicone Button Actuation Force: 40g-300g
6. Quantity Demands: FOQ & EAU

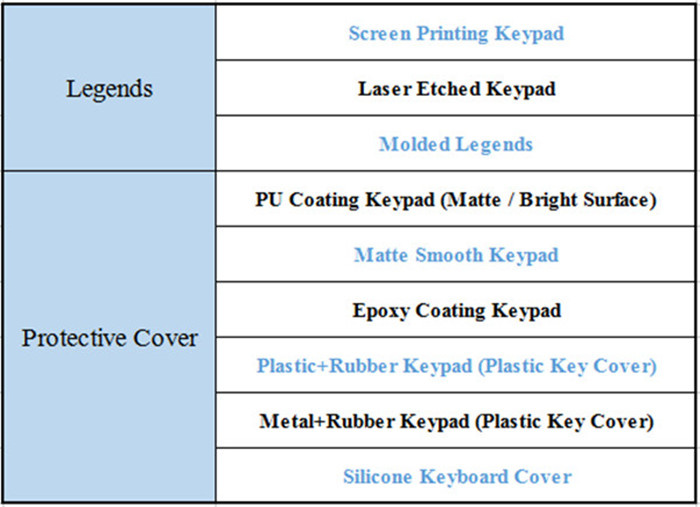

Rubber Button Types
Silicone keypads can be classified by surface legends, conductive ways and material property.
Our advantages
1. Precision Own Mold-Making Technology since 1998, one stop service for silicone rubber compression molded components, plastic injection molded and liquid silicone rubber molding components.
2. In-depth knowledge of elastomeric materials molded
3. In-depth knowledge of silicone and Liquid silicone tubing mold-making technology and mask molded technology.
4. Mature Experience of avoid out of shape and damage from Production to Shipment: Materials Choice, Design Improvement and Packing Information.
5. Rapid prototyping with full sizes production equipment and production materials.
6. Experienced clean room and precision manufacturing technology.
7. Competitive Price: Original Manufacturer; 1.) Mold-Making Plant
2.) Silicone Rubber Compression Plant
3.) Plastic Injection Plant
4.) Liquid Silicone Rubber Injecton Plant (LSR)
5.) Assembly Plant.8. Five Experienced Designers and Engineers; 9. Production and Test is in strict conformance with ISO9001; Test Equipment: 3D Projectors, Sealing Testor, Elasticity Measurement, Durometer etc.
10. Rapid Reaction Organization: Support Customer at short time
Xiamen Better Silicone Import and Export Co., Ltd, which specialized in making Rubber Compression / plastic injection /Liquid Silicone Rubber Injection mold tool and producing silicone rubber compression parts, plastic injection parts, Liquid silicone rubber injection parts: Rubber Sheet, Gasket, O-RING, Seal, Silicone Rubber Valve, Silicone Rubber Keyboard, Rubber Nozzle, Rubber Grommet, Silicone Bushing Sleeves, Rubber Damper, Rubber Bumper, Rubber Bellows, Silicone / Liquid Silicone Mask, Connectors etc.
Xiamen Better Silicone Import and Export Co., Ltd have five production Plant:
1. Mold-Making Plants: Rubber Compression Mold, Plastic Injection Mold, Liquid Silicone Rubber Injection Mold
2. Rubber (Silicone) Compression Plant
3. Plastic Injection Plant
4. Liquid Silicone Injection Plant (Clear Room)
5. Assembly Plants (Clear Room)
As a factory management cooperation, we focus on improving Mold-making technology, each production plant efficiency, and take full advantage to enjoy customer's demands and meet marketing demand.
Our Advantage:
Own Precision Mold-making Technology (since 1998 years)
Experienced Technical Persons and Workers
One-stop Service: Mold Tool Making, Silicone Rubber Compression Production, Plastic Injection Production, Liquid Silicone Injection Production and Assembly.
Experienced Industry Knowledge, Leading industry: Electronic Industry (like Precision Silicone Rubber Smart Cellphone Parts, Rubber Keypad, 3M Adhesive Tape+Silicone Rubber etc), Medical Industry (like Silicone/Liquid silicone rubber mask/valve/gasket etc), Sanitary Industry (like Silicone Shower Head Nozzles).
Well-established and Down-to-earth Company: Improve production technology and also use qualified formal materials
