Simple Type PNP No Amplifier in Stock with Ce Quality
| Price: |
US $ 25-28/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

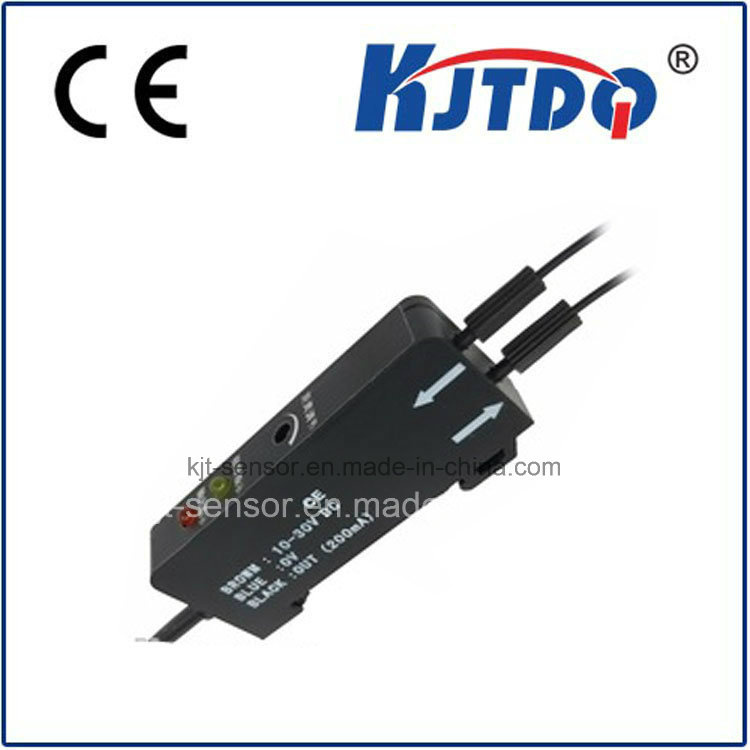

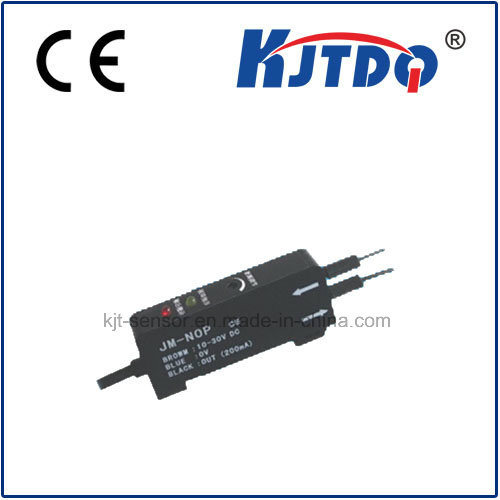

KJT Series Fiber Optical Sensor Amplifier
Detailed Product Description :
Features:
1) Leading dual monitor mode
2)High speed digital chip3)
Automatic and manual correction can be choose
4)High precision detection
5)Long sensing distance
6)Easy installation and maintenance of cabling systemSpecification | Model | KJT-A5RTK-P |
| Power supply | 12~24VDC |
| Leakge current | <60mA |
| Voltage drop | <1V |
| Response time | <200us(FINE)
<400us(TURBO)
<800us(SUPER)
410us~1.7ms |
| Load current | <100mA |
| Protection circuit | Surge, reverse polarity and
short-circuit |
| Indicator | 660nm Infrared LED |
| Output signal | LED digital display in 4 directions.
LED column display
Action indication |
| Operating tem. | -10~+50ºC(Non-condensing) |
| Ambient light | Incandescent lamp:3000lux
Incandescent lamp:100000lux |
| Accuracy | >0.01mm(related optical ) |
| Function | Transmit power, output delay can be choose |
| Voltage resistance | 1,000V/AC 50/60HZ 60s |
| Insulation resistance | <50MΩ |
| Anti-vibration | amplitude:0.5mm
frequency:10...50Hz |
| Impact resistance | Acceleration:500m/s2(about 50G),
every 3 times for X, Y and Z directions |
| Protection degree | IP64 |
| Housing material | Housing:PC+ABS |
| Connection | 2 m PVC cable |
Q: What's your warranty ? How about the quality of your sensors ?A: 18 mouths . We have the certification of ISO,CE,CCC.Our sensors can replace many famous brand sensors(BALLUFF,IFM,P+F,TURCK,OMRON,SICK,Contrinex,,KEYENCE,BANNER,BAUMER,AUTONICS,etc) You can provide us the date sheet and we check whether can produce. Q: Do you have different style ?A: We produce our own brand sensor(KJT),also provide OEM + ODM service. Q: How can we become your sale distributor ?A: If you can sell our products USD 5,000 to USD 60,000 per year,you could be one of our distributors in your city or area.We have price protection policy in every area. We still looking for more distributors,do you like to join us? Q: Can we have our logo or company name to be printed on your products or the package ?A: Yes,you can.Logo or imprints can be printed on our products.The minimum quantity is 500 pcs per logo.You can send us the artwork by email in JPEG or TIFF format.If you want your logo and company name to be printed on the package for the products(custom design package).Such as gift box and paper card,the MOQ is 500 pcs per model.You can send us the artwork by email in JPG/TIF/AI/EPS/TIFF or coreIDraw formats Q: How about the delivery time ?A: We are factory and we have large warehouse for goods,if we have the sensors you need in stock,we will send in 3 days.If have not in stock,we will produce asap after received your payment in our account.the detailed delivery time is according your order qty. Q:
Does KJT keeps goods in stock or only trading ?A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery. Q: What's your shipment method?A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method. Q: What's about MOQ?A: First order MOQ=5 pcs (different type sensor has different MOQ) Q: If i want to release order, what's the payment method you accept ?A: We accept T/T, Paypal, Western union, L/C. Q: If i want to release order, what's the process?A: Thanks. You can send inquiry to us or send us by email, we will reply within 12 hrs. Q: Could KJT provide technology support?A: We're in this field more than 10 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem. Q:When you use KJT's photoelectric sensor and inductive proximity sensor, the following subject should be noticed: A: Ensure the working voltage is 10-30 V DC or 90-250 AC.Required the sensing distance and the material of detecting objects.For photoelectric sensor ensure it is available through beam and reflection.Ensure it is NPN or PNP output.Q: How can i get a sample ?A: If you need one sample for checking-up,we will provide one free sample for one type sensor(same data sheet) for you, .but we do not carry the freight charge.If we have no this type sample in stock,we could produce it for you.
| Prod Model: |
KJT-A5R-P |
| Power Supply: |
12-24V DC |
| Display: |
660 Nm Infrared LED |
| Operating Tem.: |
-25~55 ºC |
| Protection Degree: |
IP64 |
| Feature: |
Standard |
| Type: |
Photoelectric Sensor |
Nanjing KJT Electric Co., Ltd. is a professional manufacturer in the field of sensors and industrial switches, Our high-tech products are widely used in the industrial mechanical equipment and automatic assembly lines for transportation, plastic, metallurgy, chemistry, textile, tobacco, food, printing and so on, with properties of location check, signal transmission, automatic counting and velocimetry.
Including automation and instrumentation division. Owning an outstanding R&D team who focus on core technique and devote themselves to development and innovation, we provide our esteemed customers with All-In-One solutions. We believe that the only way to offer the best industrial control system for customers is to be a total solution provider. Through our enterprise concept, we can make our customers reduce the cost of operation, enhance the efficiency of work, and increase the quality and plus the extra value of products. There are over 8, 000 customers in all industries worldwide. Our qualified products can successfully be used in worse environment with long life-time.
