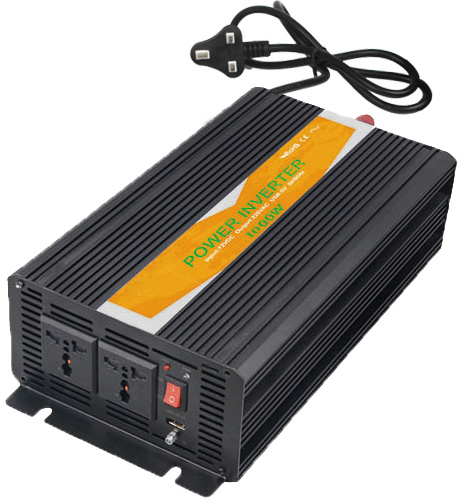

Sine Wave DC to AC Inverter with Battery Charger 1000W 12V/24V/48V 220V
| Price: |
US $ 50-116/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
JGCS-1000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Jgcs-1000W |
| Rated Power: |
1000W |
| Input Voltage: |
12VDC,24VDC |
| Output Voltage: |
110VAC,220VAC |
| Efficiency: |
50Hz, 60Hz |
| Wave Form: |
Pure Sine Wave |
| The Fuse: |
Built in |
| Protection: |
Low Voltage Alarm&Shut Down |
| USB Outlet: |
5V 500mA |
| Soft Start: |
Yes |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Electric Power |
| Output Power: |
501 - 1000W |
| Brand: |
Jinggu |
Product Description
Feature of DC to AC Inverter off Grid Solar with Battery Charger 1000W 12V/24V/48V 220V:
1. The safety of shock
2. The original constant power technology
3. Battery over-discharge alarm protection
4. Before and after class isolation technology
5. CPU core SPWM pulse width control technology
6. Doesn't affect the working life of electrical equipment
7. The installation of the MOS transistor anti-reverse technology
8. The original level of before and after the double soft-start technology
9. Components with high-quality original, ensure products with high quality.
10. With small, light weight, high efficiency, low distortion, no-polluting, low noise, aluminum alloy shell, surface blasting anodic oxidation treatment, high hardness, beautiful appearance
model
JGCS-1000W
Rated Power
1000W
Peak Power
2000W
Input Voltage
12VDC/24VDC/48VDC
AC Voltage
110VAC/220VAC
USB Outlet
5V 1A
Frequency
50/60HZ±0.5
Wave Form
Pure Sine Wave
Soft Start
Yes
Protection Function
Bat.Low voltage Alarm&Shut Down,Over Temperature,Over Voltage,Short Circuit,Revers Polarity
The Fuse
Built-in
Inverter Size(L*W*H)
450*170*88mm
Gross Weight
4.64KGS
Package Size
460*370*465mm
Quantity/Ctn
6PCS
Package Weight
23KGS
Package Type
Color Box
Warranty
1 Year
charging portion
charging portion
AC output voltage
110v
220v
AC output power
50Hz/60Hz
50Hz/60Hz
AC output work voltage
85V-130V
170V-250V
Charging current
12V/5-20A
24V/5-10A
48V/5A
Constant charging voltage
14.4v
288v
57.6v
Float charging voltage
13.6v
27.2v
54.4v
Time of inverter swutching to city power
≤9MS Automatic switching
Time of city power switching to inverter
≤9MS Automatic switching
Prior
Optional/default city power priority
Wenzhou Jinggu Photoelectronics Technology Co., Ltd. is a focus on energy efficiency, wind, solar and other electrical power equipment product development, production, sales and service of the national high-tech science and technology enterprises. Major production: Sine wave inverter, car inverter, solar inverter, solar controller, LED photoelectric, AC / DC power supply, scenery power systems, photovoltaic equipment and accessories and other products. And provide project consulting, system design and technical support services. Products have been widely used in finance, communications, power, transportation, automobiles, elevators, residential, research institutes, manufacturing and military industries.
The company has perfect quality control, production management, engineering management, administered four management systems, in particular the quality system, we implement strict ISO9001 and CE certification standards, quality control throughout the entire production process, IQC, IPQC, FQC, in strict accordance with SOP tested products, and equipped with advanced testing equipment, after each batch of product must be shipped to the customer QC confirmed. The company's technology strength, advanced production equipment, has a group of experienced R & D engineers and marketing staff.
Since the early pioneering adhering to the "quality first development force, perfected the needs of customers" business philosophy, adhere to the high-tech science and technology, excellent quality-based, focusing on talent introduction and training, establish a sound management mechanism, to create high Performance management team, improve marketing and service network, the products sell well in more than 30 provinces and municipalities and OEM / ODM exported to Europe, America, Africa and Southeast Asia and other countries.
Future, Crystal Valley photoelectric all employees will uphold the "energy industry, high-efficiency power" development mission, and you look forward to join hands together to create a new, green, energy-efficient world.
