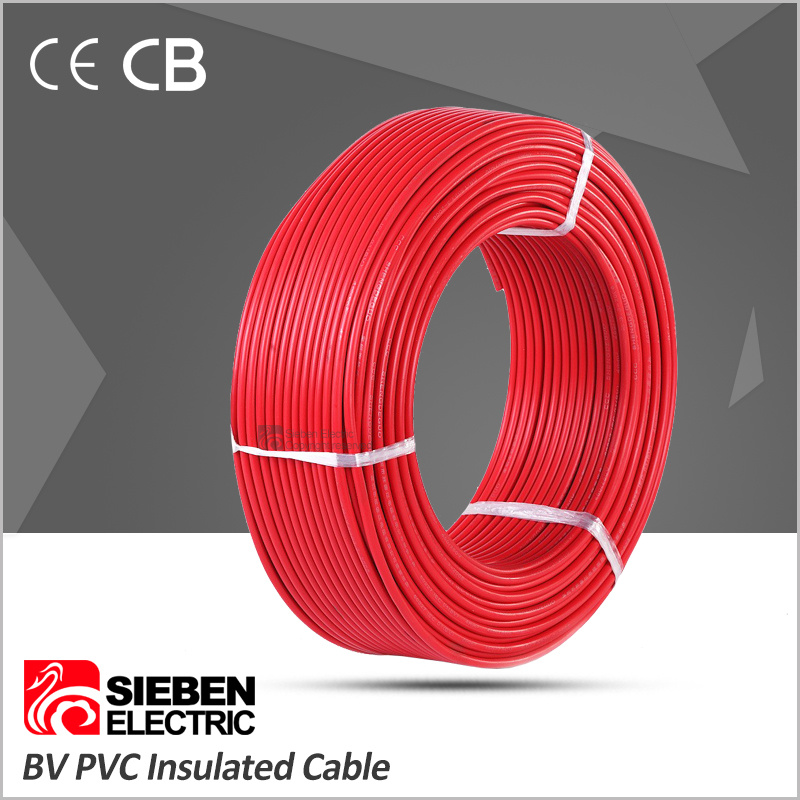

Single Core PVC Insulated Electric Cable with Solid Copper Conductor

Name: Single Core PVC Insulated Electric Cable with Solid Copper Conductor
Brand: all-electronics-online.com
SKU: 836141315
Availability: InStock
Rating: 4.4 (94 reviews)

Price:	US $ 0.1-10/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description

Low voltage pvc insulated electric wire has been widely used in our country with the advantages of excellent electric properties,strong ability to resist short circuit,long service life, easy to install, operate and maintain, etc.
The product of PVC insulated wires belong to the series of laying electric wires, which is mainly suitable for laying at the fixed places, It is widely used as connectors of drive, lighting, electronic equipments, Instrument and telecommunication equipments with rated voltage 450/750v or below, Part of plastic wires are used at the equipment with A.C rated votage 300/300v or below.

Product Specification

Nominal section.(mm2)	conductor No./Dia (mm)	Insulated thick (mm)	Max.overall Dia. (mm)	Conductor resistance at 20'C		Weight (kg/km)
Nominal section.(mm2)	conductor No./Dia (mm)	Insulated thick (mm)	Max.overall Dia. (mm)	copper	aluminum	copper	aluminum
1.5	1/1.38	0.7	3.3	12.1		19.2
2.5	1/1.78	0.8	3.9	7.41	11.8	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	1808.0	668.0

Prod Model:	BV
Color:	Red, Yellow, Green, Blue, etc
Standard:	IEC60332
Voltage:	450/750V
Type:	Insulated
Conductor Type:	Solid
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Application:	Construction
Brand:	Sieben Electric
