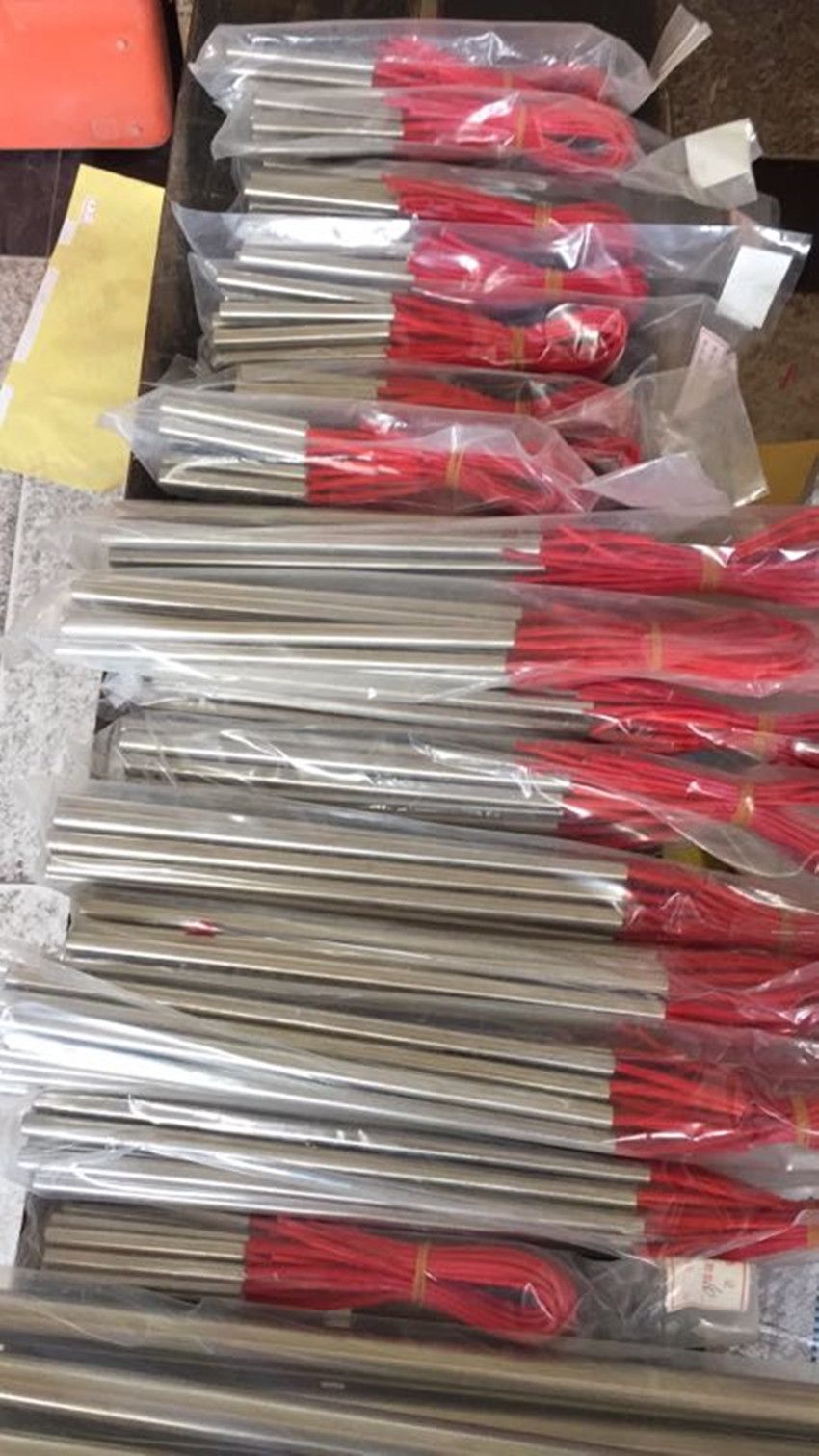

Single Head Electric Heating Tube

Name: Single Head Electric Heating Tube
Brand: all-electronics-online.com
SKU: 818398675
Availability: InStock
Rating: 4.4 (30 reviews)

Price:	US $ 1-10/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

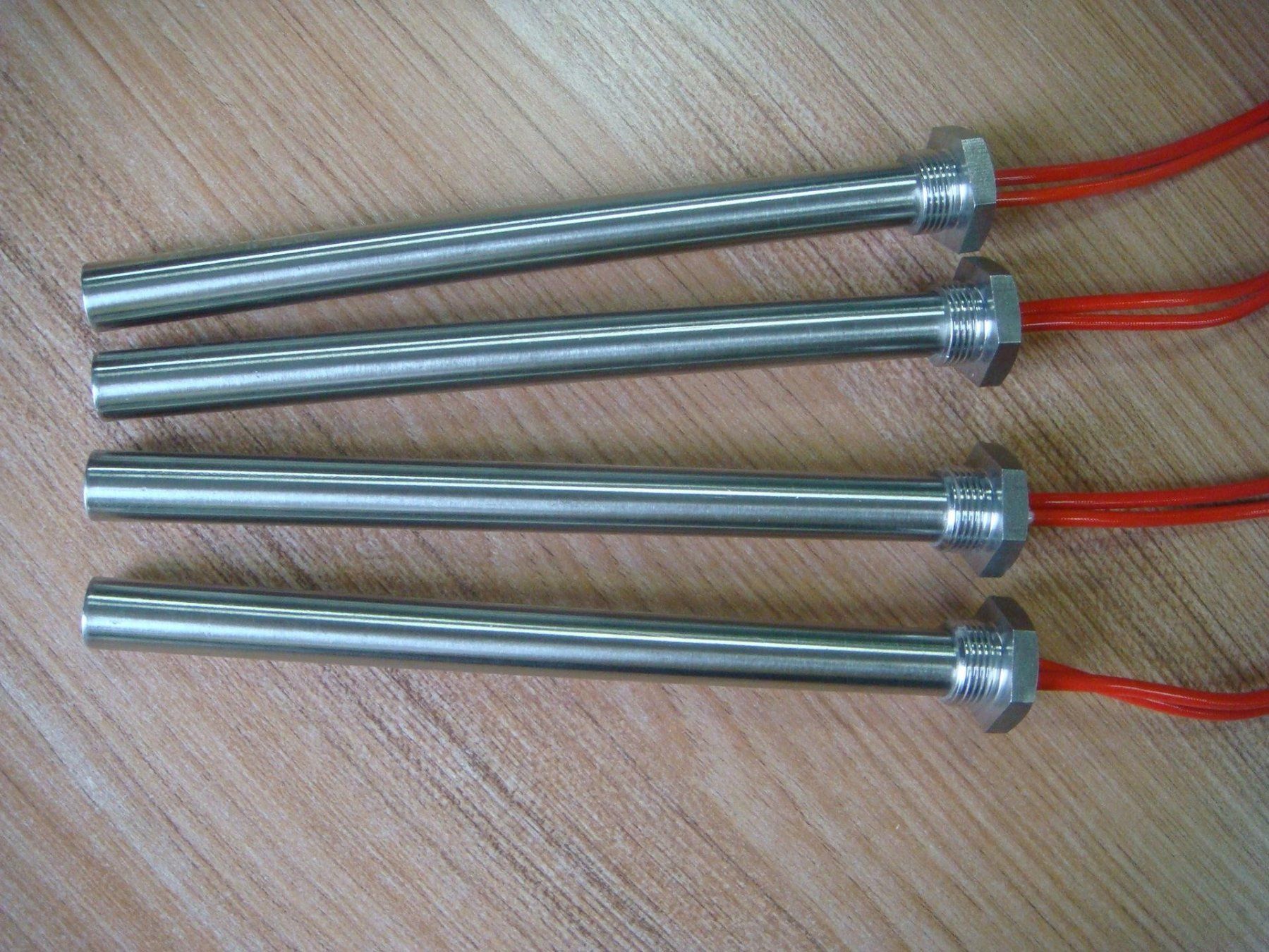

Industrial Cartridge heater

Introduction
Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. Two basic forms, high watt density and low watt density.
High density cartridge heaters are available with various termination styles and mounting attachments. In high-density cartridge heaters the resistance wire loops are positioned as close as possible to the outside shell.

Features :
Resistance wire (NiCr2080)
Available in stainless steel 304,321,316, Incoloy 800, Incoloy 840
Maximum temperature 800 degree Celsius

Technical Specification:
1.Sheath material: SUS304,321,316,Incoloy800,840
2.Wattage Tolerance: +5%, -10%
3.Resistance tolerance: +10%, -5%
4.Voltages available: 380V,240V, 220V,110V,36V,24V or 12V
5.Max operating temp: 800ºC
6.Length tolerance: ±1 mm
7.Diameter tolerance: -0.02mm
8.Standard Cold Zone: 5-10mm;
9.Delivery time: 7-10 working days.
10.Thermocouple Location: type J or K are available
11.Insulation resistance (cold): ≥ 500 MΩ;
12.Maximum leakage current (cold): ≤ 0.5 mA;

Applications:
Injection moulding - Internal heating of nozzles
Hot runner systems - Heating of manifolds
Packaging industry - Heating of cutting bars
Packaging industry - Heating of hot stamps
Laboratories - Heating of analytical equipment
Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
Telecommunications: Deicing, Enclosure Heater
Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
Food Service: Steamers, Dish Washers,
Industrial: Packaging Equipment, Hole Punches, Hot Stamp.

Cartridge Heater Selection
The key questions which need to be answered before selecting a cartridge heater are:
What wattage and voltage will be used?
What is the diameter and heated length required?
How long do the heater leads need to be?
What is maximum temperature and how long required to reach your temperature?

Application:	Heater
Principle:	Heating Resistance Wire Inside Heating
Voltages Available:	12V-380V
Heat Transfer Surface:	Tubular Heat Exchanger

Founded in 2023, Dongguan Hongyou Metal Products Co., Ltd. is a professional Heating element manufacturer.

With product development, machine improved and technological innovation, we have improved OEM capacity and also have our own brand Hongyou. We have focused on management and quality control according to ISO 9001 standard. We produce top quality heaters and offer efficient service to meet customer's requirements.

We have 10 engineer with more than 10 years of experience in heating element filed to design and develop new heating elements for clients and provide professional suggestion for clients.

We introduce professional machines from Taiwan, Japan and Germany to support our production, including automatic powder filling machine, polishing machine, shrink tube machine, punching machine, automatic reeling machine and so on.

Our main products are Rod heaters, band heater, infrared heaters, temperature sensors and various heating alloys. Our products have got CE, RoHS certification.

We welcome you to cooperate with us based on win-win situations. Please feel free to contact us for further information
