| Place Of Origin: |
Guangdong, China (Mainland) |
| Surface Finishing: |
HASL,HASL Lead Free,OSP,Immersi |
| Copper Thickness: |
0.5oz-4oz |
| Board Thickness: |
1.6 mm |
| Layout: |
1-22 Layer |
| Structure: |
Double-Sided Rigid PCB |
| Material: |
Phenolic Paper Laminate |
| Production Process: |
Semi-Additive Process |
Product Description

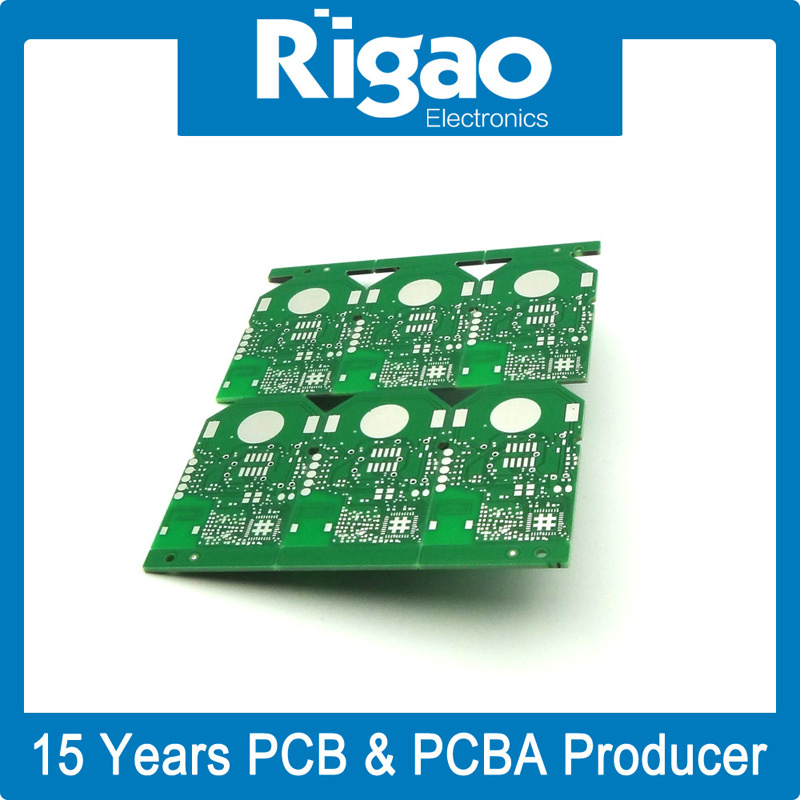

Single-Layer pcb printed circuit board
Shenzhen Rigao Electronics Co, . Ltd is focus on manufacturing Printed Circuit Boards(PCB) and PCBA Assembly(PCBA). OEM PCBA, SMT, DIP and final PCBA Assembly are our strengths.
Our aim: High quality, low cost & fast delivery for PCB and PCBA Assembly.
Service: One-stop-service for PCB and PCBA Assembly.
Verification: UL, ISO9001: 2000, RoHS
Product Description:
1. Single-sided PCB/PCBA, double side PCB/PCBA & multi-layer PCB/PCBA with competitive price, good quality and excellent service.
2. CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB/PCBA standard.
5. Quantities range from prototype to medium batch production.
6.100% E-Test.
Material Requirements:
| Size | Max.Finshed Size | 20.9"x24.4"(530mm x 620mm ) |
| Board Thickness | Standard | 0.004"to0.16 " ±10% ( 0.1mmto4.0mm±10% ) |
| Min. | Single/ Double-sided:0.008"±0.004"(0.2mm ±0.1mm) |
| 4-layer:0.01"±0.008"(0.4mm ±0.1mm) |
| 8-layer :0.01"±0.008"(0.4mm ±0.1mm) |
| Bow and twist | < 7/1000 |
| Copper Weight | Outer Cu weight | 0.5oz ~ 3.0oz |
| Inner Cu wight | 0.5oz ~ 3.0oz |
| Laminate Materials | FR-4,FR-1,,FR-2,CEM-1,CEM-3 |
Process Requirements:
| Solder Mask | Color | green,light green,white,black,dark brown,yellow,red,blue |
| Min. solder mask clearance | 0.003"(0.07mm) |
| Thickness | 0.0005"-0.0007"(0.012mm-0.017mm) |
| Silkscreen | Color | White,black,yellow,red,blue,green |
| Min. Size | 0.006"(0.15mm) |
| Surface Finish | HASL,HASL pb free,immersion gold,immersion silver,immersion tin,O.S.P (Entek),S/G plating,ENEPIG,G/F plating,carbon |
Quality Control:
| Electrical testing | Flying Probe Tester | Y |
| Controlled Impedance | Tolerance | ±10% |
| Impedance tester | Tektronix TDS8200 |
| Routing | End Mills Test | ± 0.006"(0.15mm) |
| CNC Tolerance | ±0.004"(0.1mm) |
| V-Cut Depth V-cut | FR-4(1/3+-0.1mm);FR-1,FR-2,CEM-1,CEM-3(1/2+-0.1mm) |
| V-cut angle V-CUT | 15°,18°,30° |
| V-CUT | line,hole,V-shape |
Certificates
| UL Cert. | Y |
| ISO Cert. | ISO9001 :2008 |
| TS16949 | Y |
| ISO14000 | Y |
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
