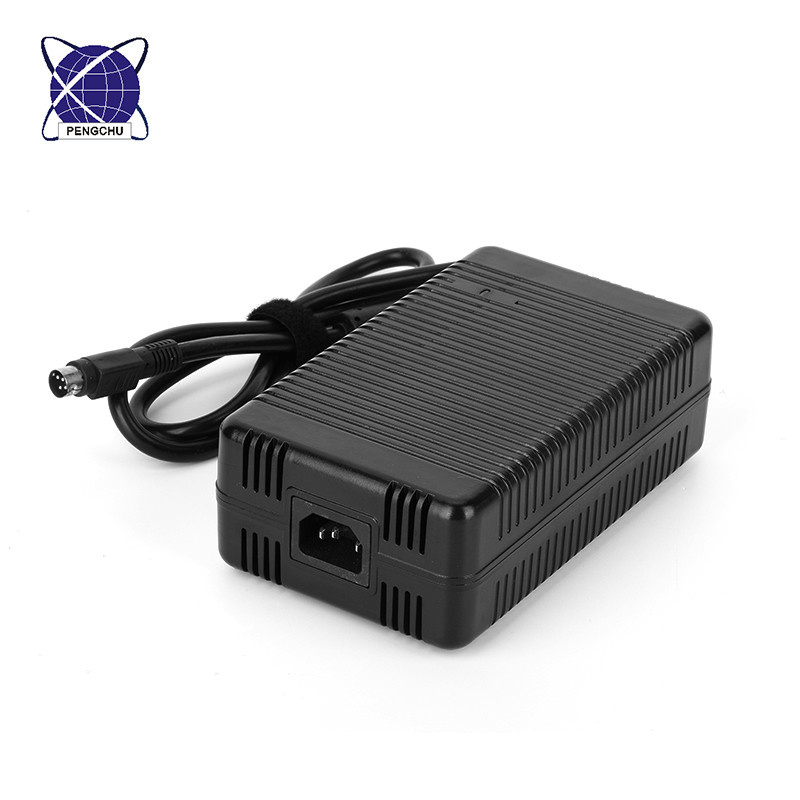

Single output 5v 20a ac dc switching power supply adapter
Features:
- Universal AC input/Full range(up to 264Vac)
- Protection: Short circuit/Overload/Over temperature
- High efficiency, long life and hign reliaility
- 100% full load burn-in test
- One year warranty
Product Description| Single output 5v 20a ac dc switching power supply adapter |
| Part NO. | PC-050200 |
| DC Voltage | 5V |
| Rate Current | 20A |
| Current range | 0~20A |
| Rate power | 100W |
| Voltage tolerance | ±5% |
| Line Regulation | ±1% |
| Load Regulation | ±5% |
| Ripple & noise | <120mvp-p |
| AC Input | 100~240Vac 50/60Hz max: 90~264Vac 47/63Hz |
| Efficiency | 85% |
| Short Circuit Protection | Shall be protected when any output operation in circuit short condition,and shall be auto restart when the fault condition is removed. |
| Over Current Protection | 130%-150% |
| Over Voltage Protection | 115%-135% |
| Operating Temperature | -10-50ºC (±10ºC) |
| Relative Humidity | 20%-90% RH |
| Storage Temperature | -40-80ºC (±10ºC) |
| DC Connector | 4 PIN connector (Customized Available) |
| DC Cable | 1.2m/1.5m/1.8m/2m/3m(Customized Available) |
| AC Cable | 1.2m AC power cord with USA/UK/EU/AU/India plugs |
Certifications:
Shenzhen Pengchu Industry Co., Ltd. was approved to establish by Shenzhen Administration for Industry and Commerce in 2004 and has passed ISO9001 : 2000 international quality system certification.
We specialize in developing , producing and exporting switching power supply and power adapters for laptops , as well as other related accessories . As a measure to enhance the quality of our products, we have introduced the most up-to-date testing equipment from overseas markets to ensure that each product undergoes strict quality control from design to packing.
All the products are 100% aging test. With CE, FCC, RoHS, CB, ETL, SAA, C-TICK, PSE ceritifcates. OEM and ODM orders are always welcome.
"Customer foremost" is our unchangeable service tenet. Several years' hard work brings us trust and confidence from our customers. Our sales network spreads to every corner of the world. We would like to work hand in hand with our business partners to create a more wonderful future.
Shenzhen Pengchu Industry Co., Ltd is always here to help you !
FAQ Q: What's your MOQ?
A:MOQ is 100pcs,small trial order is also OK if we have stock material,
1000pcs for customized unit.
Q:What's your main markets? Can we trust you?
A:Pls check transaction history from our alibaba company profile.Also we are 10 years golden supplier in alibaba with three diamond.
Q:Which payment do you accept?
A:You could use PAYPAL,ALIPAY,Bank transfer T/T etc. Or we accept alibaba trade assurance with Master card/Visa/T/T/E-checking.
Q:What's your warranty?
A:One year warranty.
Q:What is your samples lead time or goods delivery time?
A:Samples time about 3 working days,goods time about 12 working days.
Q:Can we print our logo?
A: We can print your logo on both power adapter and package.
Q: Why is new model expensive than other old models?
A: A new model needs large R&D and mould cost, and the depletion rate is bigger during mould and production. Besides, new model is low productive but labor costs keep same as old model.
Q: What about shipment?
A: We can ship goods to your office/warehouse by express, by air,FOB shenzhen/by sea.
You can choose different shipment method at your request. |

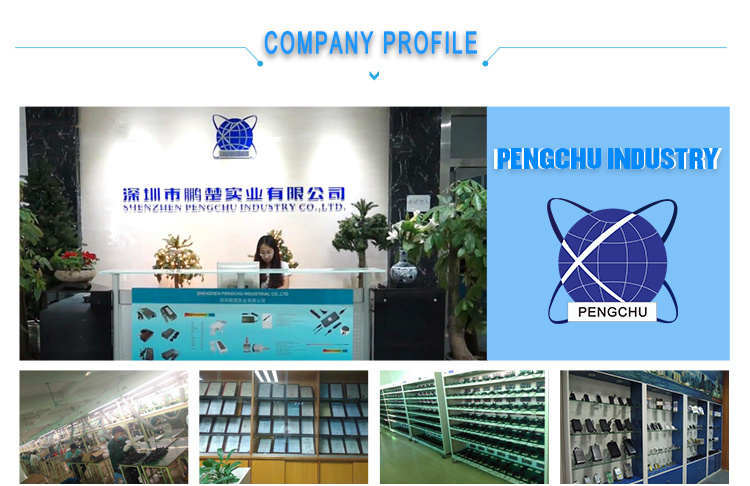

Shenzhen Pengchu Industry Co., Ltd. Was approved to establish by Shenzhen Administration for Industry and Commerce in 2004 and has passed ISO9001: 2000 international quality system certification.
We specialize in developing, producing and exporting switching power supply and power adapters for laptops, as well as other related accessories. As a measure to enhance the quality of our products, we have introduced the most up-to-date testing equipment from overseas markets to ensure that each product undergoes strict quality control from design to packing.
All the products are 100% aging test. With CE, FCC, RoHS, CB, ETL, SAA, C-TICK, PSE ceritifcates. OEM and ODM orders are always welcome.
"Customer foremost" is our unchangeable service tenet. Several years' hard work brings us trust and confidence from our customers. Our sales network spreads to every corner of the world. We would like to work hand in hand with our business partners to create a more wonderful future.
Shenzhen Pengchu Industry Co., Ltd is always here to help you!
