Prod Model: |
svc-10kva |
Input Voltage Range: |
160V~250V,120V~250V,90V~250V |
Efficiency: |
95% |
Color: |
Grey , Black |
Display: |
LED |
Current Type: |
AC |
Phase: |
Single Phase |
Usage: |
SVC |
Frequency: |
Industrial Frequency |
Power Source: |
Power |
Application Range: |
All |
Brand: |
Cken |
Product Description
ZHE JIANG CKEN ELECTRIC CO,. LTD
Genaral:

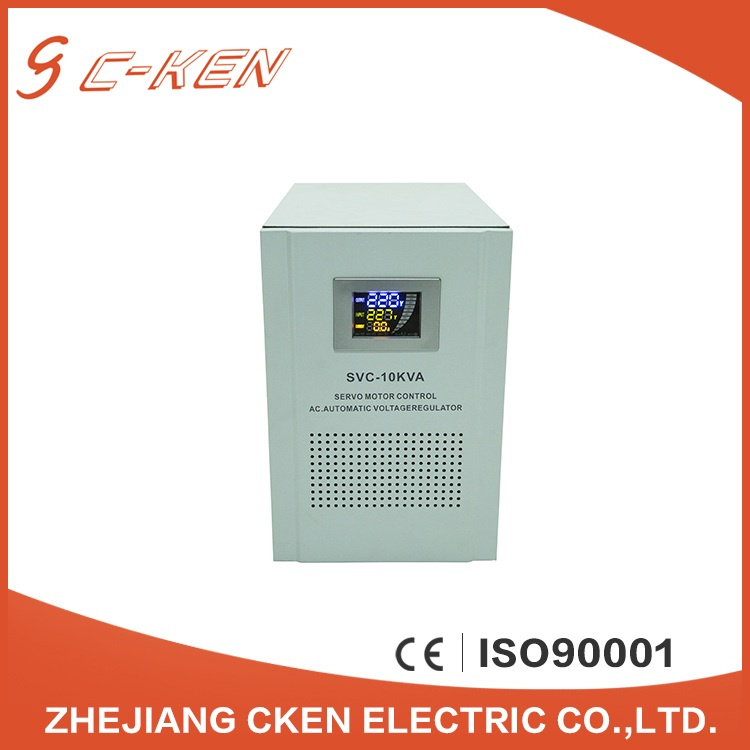

single phase high accuracy full-automatic AC voltage stabilizer. This voltage stabilizer is of common type, it has the function of connecting through the commercial power. Compared with other voltage stabilizers, it has the advantage of great variety . complete specification, nice appearance and obvious features of high efficiency, no wave distortion, reliable performance, working continually for long time, besides, it is provided with short time delay and over voltage protection, and the long time delay and under voltage protection also can be set according to user requirement. This product is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally.
Model No. | CKEN SVC-10kVA |
Item Name | Single Phase Relay Type AC Automatic Voltage Stabilizer |
Input Voltage | 160V∼250V,120V∼250V,90V∼250V |
Output Voltage | 220V |
Accuracy of Voltage Stabilization | 220V±8% |
Frequency | 50H/60Hz |
Protection Over Voltage | 246±4V |
Delay Time | long 5min±2min,short 5s±2s |
Phase | Single Phase |
Ambient Temperature | -5ºC∼ +40ºC |
Insulation Resistance | ≥2MΩ |
Waveform Distortion | NO additional waveform distortion |
Adjustable Time | <1s (when input voltage has a change of 10%) |
Dielectric Strength | 1500V/1min |
Load Power Factor | 0.8 |
Company Information

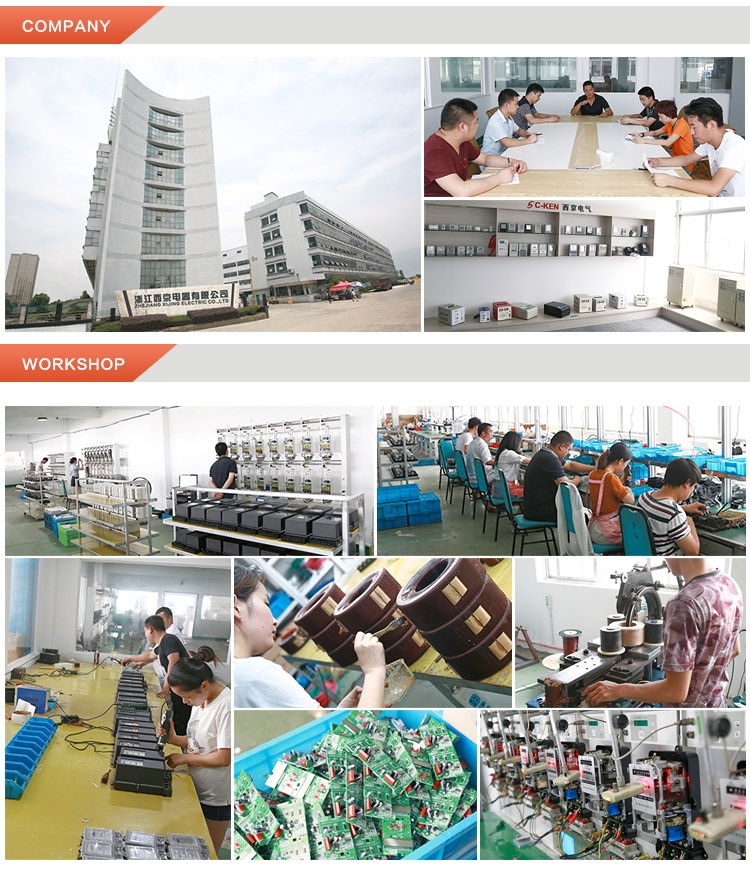

Zhejiang Cken Electric Co., Ltd. (Formerly known as Yueqing Qianjiang electric meter factory in City, ) was founded in 1993,he company has launched a variety of products, such as The high accuracy Stabilizers, Regulators, transformers. And it has all kinds of high precision equipment, strong technical force, advanced production technology, complete product specifications. The company has a variety of products have been issued by the State Quality and Technical Supervision measurement equipment manufacturing license.
The company adhere to the "customer first, quality first, reputation first" purpose, Product sales network throughout the country and exported to Pakistan, Nepal, Bangladesh, the Middle East, Iraq, the Philippines, Italy, Sudan, Taiwan, Hong Kong and other countries and regions.
Packaging:
- Wooden case packing: The voltage stabilizer are according to one or four packed in the box out of the storehouse.
- Honeycomb carton: As far as possible to the packaging to do better, And send to the hands of every guest.
Shipping:
- Samples:will be prepared within seven days.
- Bulk order:around ten days.
- Large order:30 days will be OK.
CertificationsPlease don't be hesitate to contact us for any questions,your inquiry will be on our priority attention and fastest reply!
ZHE JIANG CKEN ELECTRIC CO,. LTD
We are a high and new-tech enterprise specialized in research, development, production, and marketing. The leading products include voltage stabilizers, kwh meters, meter parts, power supply parts, transformers and other power supply goods.
Our company ranks leading in passing ISO9001 quality management system certification. The products have obtained certificates like CE and also domestic CCC and CQC. We keep carrying on the development and research of new products. We will abide by quality promise with the spirit of expansion, innovation and marketing.
We believe that our company will be more powerful and far better by your support!
