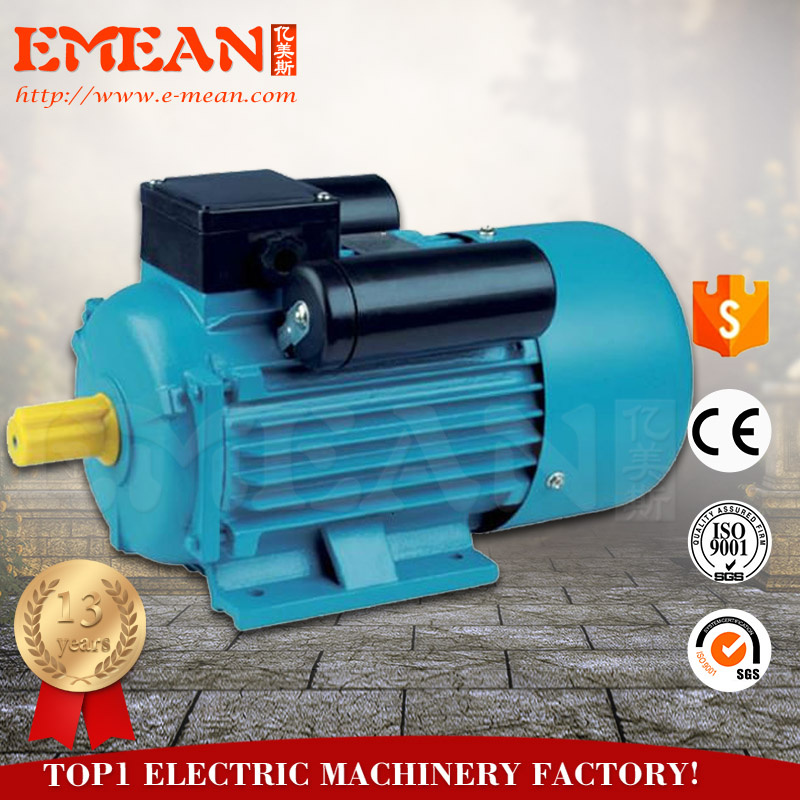

Single Phase 0.75HP Top Quality Motor Use Maximum Stater Lenght

Prod Model:	YC80C-4
Technology:	The Introduction of German Technology
Competitive:	Top1 Electric Machinery Factory
Place Of Origin:	Fuan City--- The Original Place of Generatorand Mo
Warranty:	We May Make 2 Years Quality Warranty
One-Stop Service:	More Than 16 Years Old Factory
Our Advantage:	Our Workers Are All From Chinese Earliest Mindong
Delivery Port:	Fuzhou, Shenzhen, Any Port in China
Delivery Time:	Shipped in 25days After Payment
Inside Packing:	Foam and Plastic Package
Outside Packing:	Carton Package
Application:	Agriculture/Food Machinery, Machine Tools, Pumps
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Casing Protection:	Closed Type
Starting Mode:	Auto-induction Voltage-reduced Starting
Brand:	Emean/OEM
Species:	Yc, Ycl, Yl
Rotor Structure:	Driving, Control
Certification:	Ce

Product Description

Top Quality Single Phase 0.75HP Motor Use Maximum Stater Lenght


We are have 16 years manufacture experience and supply one-stop service for 13 years.
Welcome to contact us. www.e-mean.com ; P:0086-15860667222


YL motor	Y2 motor	Y motor	YC motor
Gasoline generator	Diesel generator	Alternator	Gasoline engine

Model	Power		Current  (A)	Power Factor	Eff  (%)	Speed  (r/min)	Tstart/Tn	Tmax/Tn	Ist/IN
	kW	HP
YC711-2	0.18	1/4	1.9	0.7	63	2800	3	6.5	2
YC712-2	0.25	1/3	2.4	0.72	65	2800	3	6.5	2
YC80A-2	0.37	1/2	3.5	0.74	66	2840	3	6.5	2
YC80B-2	0.55	3/4	5.04	0.74	67	2850	3	6.5	2
YC80C-2	0.75	1	6.68	0.75	68	2850	3	6.5	2
YC90S-2	1.1	1.5	8.93	0.8	70	2850	2.8	7	2
YC90L-2	1.5	2	11.4	0.82	73	2870	2.8	7	2
YC100L-2	2.2	3	16.5	0.82	74	2900	2.5	7	2
YC112M1-2	3	4	21.4	0.84	76	2900	2.2	7	2
YC112M2-2	3.7	5	24.8	0.86	79	2900	2.2	7	2
YC711-4	0.12	1/6	1.9	0.58	48	1400	3	6	2
YC712-4	0.18	1/4	2.7	0.6	50	1400	3	6	2
YC80A-4	0.25	1/3	3.52	0.62	52	1400	3	6	2
YC80B-4	0.37	1/2	4.69	0.64	56	1400	3	6	2
YC80C-4	0.55	3/4	6	0.65	60	1400	3	6	2
YC90S-4	0.75	1	7.5	0.72	63	1400	2.8	6.5	2
YC90L-4	1.1	1.5	10.4	0.72	67	1420	2.8	6.5	2
YC100L-4	1.5	2	13	0.73	72	1440	2.8	6.5	2
YC112M-4	2.2	3	18.5	0.74	73	1450	2.5	6.5	2
YC132S1-4	3	4	22.4	0.8	76	1450	2.2	6.5	2
YC132S2-4	3.7	5	26	0.82	79	1450	2.2	6.5	2

Good factory Supplier save you time and money, help your win market,
Color & Brand	OEM welcomed. HS NO. reference:85015200 00
MOQ (samll Qty accept)	5-50-500-1000-5000-10000-50000 pcs depend different size ,item and category. MIN and SMALL quantity accept
Price (Factory Lowest price)	we are factory( our factory address for you check: JI'AN ROAD FUAN CITY,FUJIAN,CHINA), ensure lowest price and good quality and best service for you, we best service 24 hour online.
Production time	General 25-30 days ,biggest order depend quantity
Package details	Inside foam packing,outside carton packing (the frame size smaller than 112) Plywood case packing (the frame size bigger than 112) LCL with pallet packing
Usage	Machine tools,pumps,fans,transport machinery,mixer,agriculture machinery and food processing machines,etc
Warm tips	More products details , our Advantage,package ways, lowest price etc pls check next details and contact us (P:0086-15860667222)

Factory Advantage
─────────────────────────────────────────

As a factory supplier profit/Assurance for you	About our products profit for you:
1.100% Product quality protection	1.We have the Professional technical team
2.100% On-time shipment protection	2.Motor process more than 13 years
3.100% Payment protection	3.Engine process more than 13 years
4.Most Popular "electric machinery"factory	4. Alternator process more than 13 years
5.We passed CE and ISO and SGS certified	5.We have the Germany advanced detection equipment

WE are factory: add: JIAN ROAD FUAN CITY,FUJIAN,CHINA
our some process advantage for you reference:
1)Our factory has over 16 years history and 13 year export experience.
2)we have two factories and an Import/Export company.
3)Our generator comply with CE standard
4)our quality warranty is one year or 1200 running hour.
5)We introduce the latest technology in Germany
6) OEM welcomed.

Good and safe Package.We pack very careful protection your goods.
1. HS code for you	Single phase AC motor:85014000 ; Three phases AC motor power over 750W: 85015100 Three phases AC motor power over 750W and lower 75KW: 85015200 Three phases AC motor power over 75kW: 85015300
2. General packing	We have general packing,white/brown,color box,plywood case packing.
3.OEM one-stop packing	Happy your send packing design OEM packing it.

Check below for more information on placing an order
1. Inquiry-Professional quotation.
2. Confirm the price,lead time,payment term etc.
3. Our sales send the Proforma Invoice with our seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Initial Production Stage-Inform the clients that we have got the payment,And will make the samples according to your request, send you photos to get your approval. After approval, we inform that we will arrange the production & inform the estimated time.
6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
7. End Production-Mass production products photos will send to you for approval. You can also arrange the third party Inspection .
8. Clients make payment for balance and Ship the goods , Inform the tracking number and check the status for clients.
9. Order can be say "finish" when you receive the goods and satisfy with them .
10. Feedback to our about Quality , Service, Market Feedback & Suggestion. And we can do better .
Used for field: machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, etc.



Please feel free contact us anytime, it's our honor to service for you. we are together.

EMEAN NEVER LET YOUR POWER STOP, BETTER FOR YOU BETTER LIFE!
