| Prod Model: |
JY Series |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Single-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
| Species: |
Yc |
| Certification: |
Ce |
Product Description

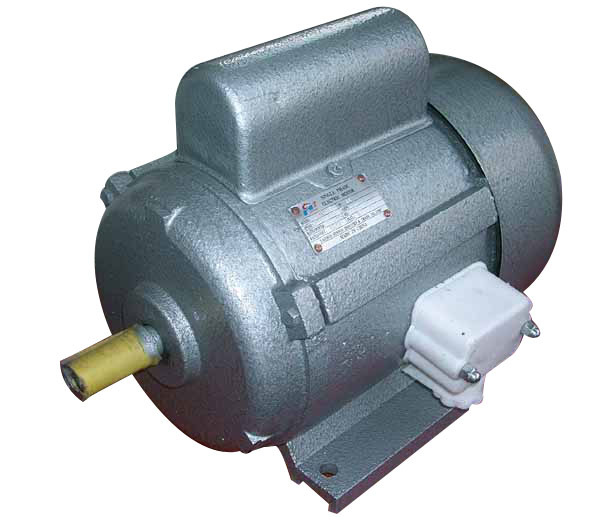

JY series single-phase capacitor start induction motor is suitable for any places where a larger starting torque and the starting current to be limited are required, and is used as driving motor of air compressors, refrigerators, medical apparatus and other small machinery in which full-load starting is demanded.
These series motors have three frame sizes, 09, 1and 2 of totally enclosed fan-cooled. The frames are made of cast iron or cast aluminium according to the requests.
Protection type: IP44/IP54
Cooling type: ICO141
Insulation class: B/F
Rated frequency: 50Hz/60Hz
Product Description
YC series heavy duty single phase ac induction motor Application:YC Motors are suitable for driving small machines and water pumps, especially for families or workshops where only single-phase electric supply is available.
Advantage:1. High torque
2. Steady running
3. Lower noise
4. Greater overload performance
Operating Conditions:1. Protection class: IP44/54/55
2. Insulation class: B/F
3. Rated voltage: 220V
4. Cooling type: IC0141
5. Duty: Continuous(S1)
6. Rated frequency: 50Hz/60Hz
Technical Data:| Type | Output | Voltage (V) | Current (A) | Speed(r. p. m) | Eff (%) | Power factor | Start torque | Start Current | Max. torque |
| HP | kW | Rated torque | Rated current | Rated torque |
| YC80A-2 | 0.5 | 0.37 | 220 | 3.7 | 2880 | 62 | 0.73 | 3 | 6.5 | 1.8 |
| YC80B-2 | 0.75 | 0.55 | 220 | 5.3 | 2880 | 65 | 0.73 | 3 | 6.5 | 1.8 |
| YC80C-2 | 1 | 0.75 | 220 | 6.7 | 2880 | 68 | 0.75 | 3 | 6.5 | 1.8 |
| YC90S-2 | 1.5 | 1.1 | 220 | 9.1 | 2880 | 71 | 0.77 | 2.4 | 7 | 1.8 |
| YC90L-2 | 2 | 1.5 | 220 | 12.1 | 2900 | 72 | 0.78 | 2.8 | 7 | 1.8 |
| YC100L-2 | 3 | 2.2 | 220 | 17.1 | 2900 | 74 | 0.79 | 2.5 | 7 | 1.8 |
| YC112M-2 | 4 | 3 | 220 | 21.4 | 2900 | 76 | 0.82 | 2.2 | 7 | 1.8 |
| YC80A-4 | 0.33 | 0.25 | 220 | 3.4 | 1450 | 56 | 0.6 | 3 | 6 | 1.8 |
| YC80B-4 | 0.5 | 0.37 | 220 | 4.5 | 1450 | 60 | 0.62 | 3 | 6 | 1.8 |
| YC80C-4 | 0.75 | 0.55 | 220 | 6 | 1450 | 64 | 0.65 | 3 | 6 | 1.8 |
| YC90S-4 | 1 | 0.75 | 220 | 7.7 | 1450 | 67 | 0.66 | 2.5 | 6.5 | 1.8 |
| YC90L-4 | 1.5 | 1.1 | 220 | 10.5 | 1450 | 70 | 0.68 | 2.5 | 6.5 | 1.8 |
| YC100L-4 | 2 | 1.5 | 220 | 13.5 | 1450 | 72 | 0.7 | 2.5 | 6.5 | 1.8 |
| YC112M-4 | 3 | 2.2 | 220 | 19.3 | 1450 | 72 | 0.72 | 2.2 | 6.5 | 1.8 |
| YC132SA-4 | 4 | 3 | 220 | 25.2 | 1450 | 74 | 0.73 | 2.1 | 6.5 | 1.8 |
| YC132SB-4 | 5 | 3.7 | 220 | 30 | 1450 | 75 | 0.74 | 2.1 | 6.5 | 1.8 |
| YC132M1-4 | 7.5 | 5.5 | 220 | 32.5 | 1450 | 81 | 0.95 | 2.1 | 6.5 | 1.8 |
| YC132M2-4 | 10 | 7.5 | 220 | 43.3 | 1450 | 83 | 0.95 | 2.1 | 6.5 | 1.8 |
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc

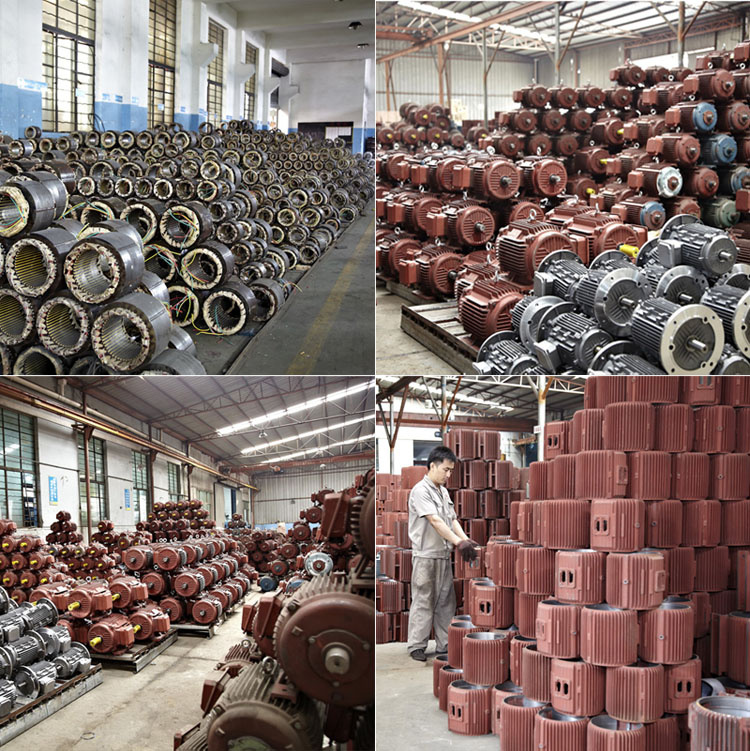

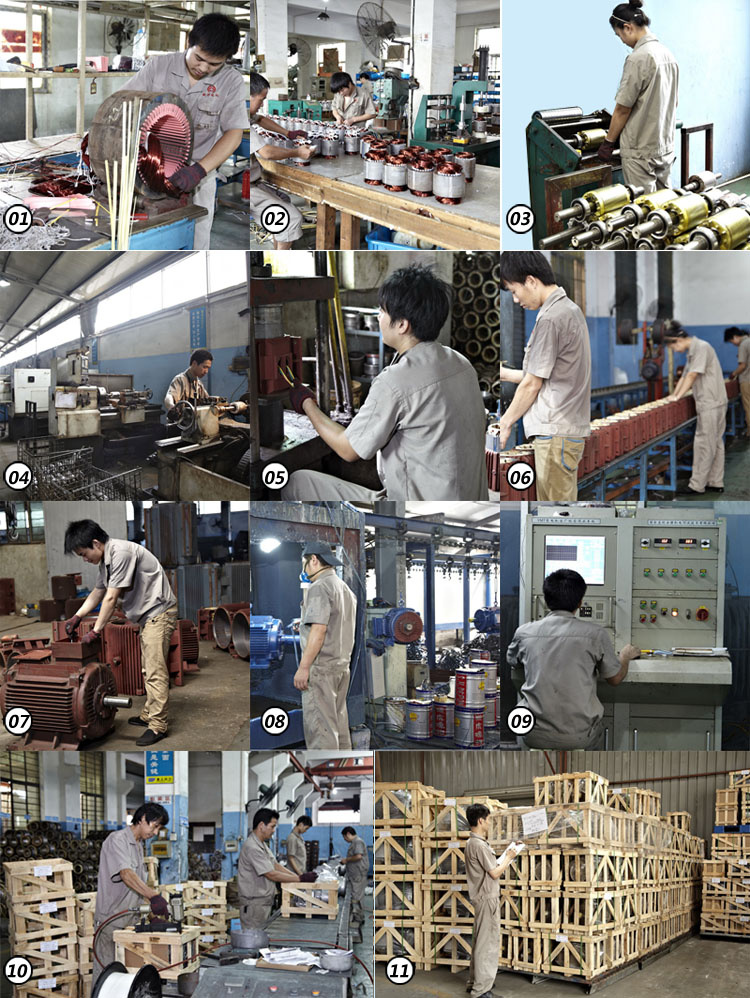

What we do:
- Stamping of lamination
- Rotor die-casting
- Winding and inserting - both manual and semi-automatically
- Vacuum varnishing
- Machining shaft, housing, end shields, etc
- Rotor balancing
- Painting - both wet paint and powder coating
- assembly
- Packing
- Inspecting spare parts every processing
- 100% test after each process and final test before packing.
Any requirements, please feel free to contact with us, we can make products according your specs and supply the competition price.
We changed our company name to Wenling Xinnuo Electric Motor Co., Ltd. is advanced enterprise specializing in all type of MID-size and small-size electric motors, electric machines. The products include Y and Y2 series three-phase asynchronous, MS series three-phase asynchronous motor with aluminium housing, YO2 series three-phase asynchronous motor, YL series monophase machine, YD series multispeed machine, YCT series electromagnetic ajustable-speed motor, frequency adjustable-speed motor and fractional electric motor, YEJ2 series electromagnetic-brake motor, DSM and M50/4 single-phase resistant start asynchronous motors, etc.
Our management system has been assessed and passed the ISO 9001: 2000 Certificate, our products have got the CCEE, CCC, CQC and CE certificates, moreover we are putting efforts to apply the approvals by UL, CSA, CE. The enterprise has the self-supporting import & export right.
With our high Quality, favorable price and excellent service, we are willing to cooperate with the friends in all circles to circles to create the flourishing future.
