| Prod Model: |
FU9300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Programmable: |
Address, Baud Rate and Other Parameters. |
| Display Figures: |
4 Bits (4½ Bits for DC) |
| Rated Input: |
Temperature: PT100, J, K, T, E Thermocouple |
| Current: |
1.2 Times Continual, 10 Times/10s |
| Voltage: |
2 Times Continual |
| Frequency: |
50Hz / 60Hz ±10% |
| Power Supply: |
AC220V ± 20% or DC100~300V (Customization) |
| Power Consumption: |
<3va |
| Insulation Strength: |
2kv/Min. 2mA |
| Output: |
Digital Sensor |
| Material: |
Mixture |
Product Description

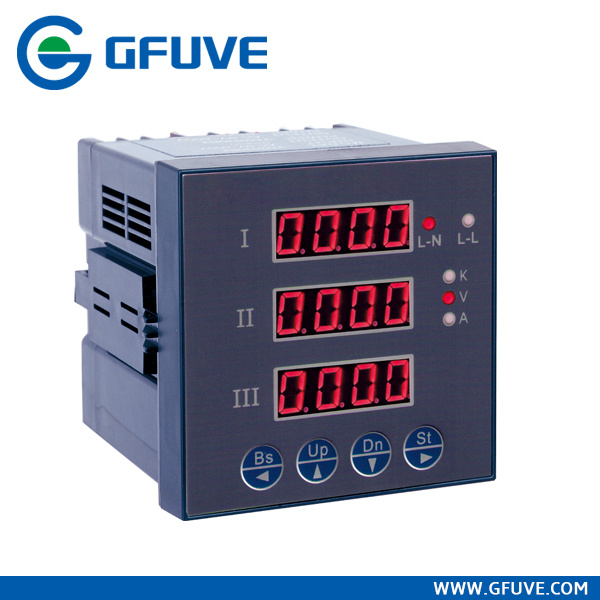

IntroductionFU8000 series of the temperature digital meters is a traditional digital meter of the replacement products. This product has the function of traditional products, also has programmable functions, DC4~20mA analog output, RS-485 communication interface port and the switching signal output function. It has high accuracy, excellent EMC, and pleasing in appearance and so on.
Technical Parameter1ProgrammablePT, CT Ratio, Address, Baud rate and other parameters.
2Accuracy0.5 Class
3Display Figures4 bits (4½ Bits for DC)
4Rated inputTemperature: PT100, J, K, T, E thermocouple.
5Over RangeCurrent: 1.2 times continual, 10 times/10s;
Voltage: 2 times continual
6Frequency50Hz / 60Hz ± 10%
7Power SupplyAC220V ± 20% or DC100~300V (Customization)
8Power consumption<3VA
9Insulation strength2KV/Min. 2mA
10Insulation resistance≥ 100MΩ
11MTBF≥ 50000Hrs
12Working EnvironmentTemperature: -25~55
Humidity: ≤ 98% RH, Without condensation
13Real-time outputDC4~20mA, Load capacity: ≤ 400Ω
14Data outputRS-485 Port (ModBus-RTU Protocol)
15Switching inputRemote signal input (self power supply): AC or DC 220V
16Switching output (Self-control)Normally open contact output: AC 250V / DC 30V, 5A
Model descriptionFU8 - Dimension - Product code - Function code - Display
Dimension Code0: 48 × 48 × 100mm
1: 72 × 72 × 73mm
2: 120 × 120 × 81mm
3: 96 × 96 × 98mm
3: 96 × 48 × 112mm
Product Code6: Temperature
Function code0: Display only
1: RS485
2: 1DO
3: 1AO
4: 1DO + RS485
5: 1AO + RS485
6: 1DO + 1AO
7: 1DO + 1AO + RS485
8: 2DO + 1AO
9: 2DO + RS485
A: 1DI + 1DO + RS485
B: 2DI + 2DO + RS485
Display(Nothing): LED
Y: LCD
Remark:
1) FU90xx series products no button, without output.
2) Power terminal blocks numbered 15, 16 for LCD products.
